E08 — Transmission

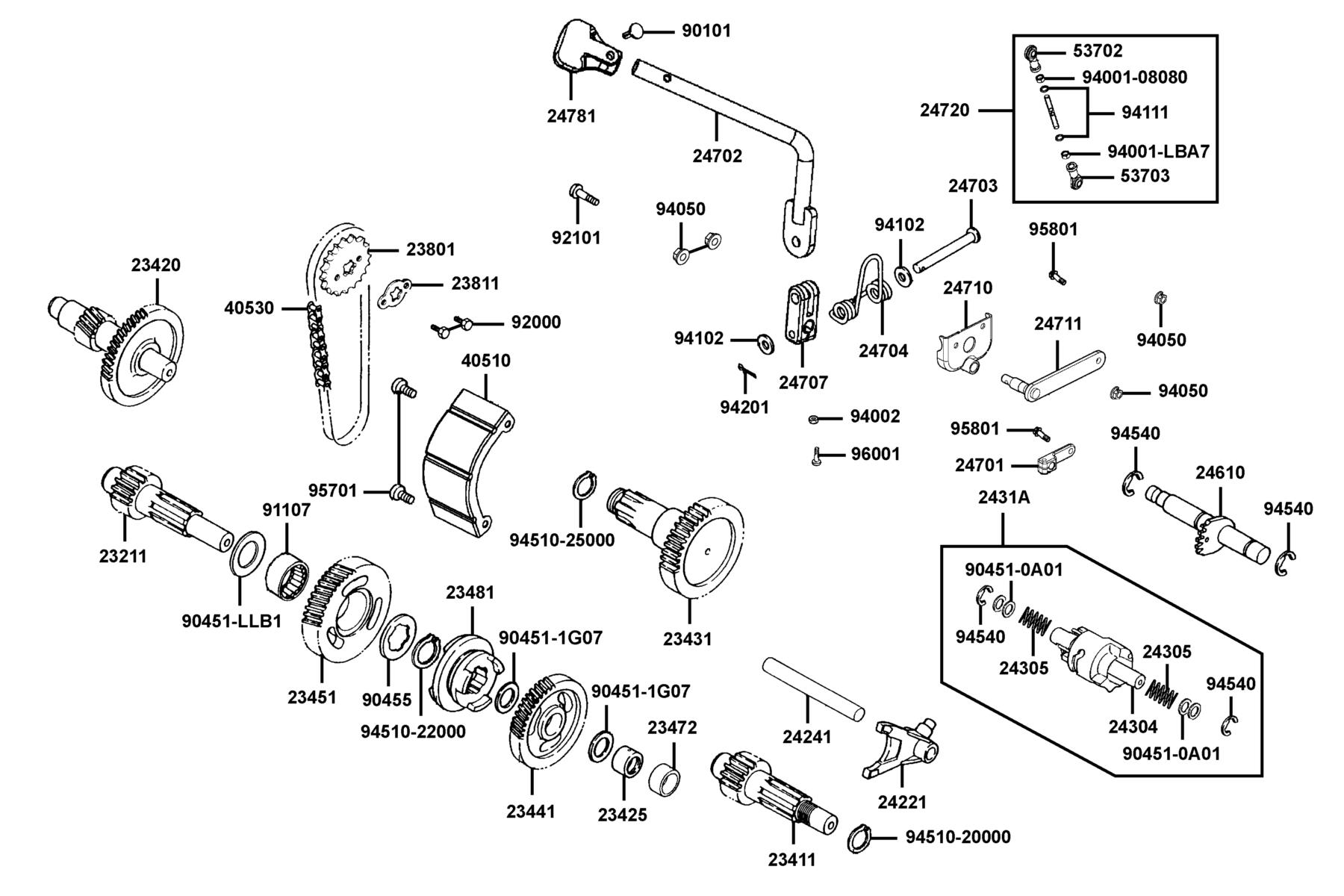

The Transmission diagram contains 52 genuine OEM parts for the KYMCO MXU 150 2026 EPA. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 23211-LLB1-900 | SHAFT MAIN | 1 | $119.91 USD | View product → | |
| 2 | 23411-LCA4-E00 | SHAFT DRIVE | 1 | $137.82 USD | View product → | |
| 3 | 23420-LCA4-E00 | SHAFT COMP COUNTER | 1 | $165.21 USD | View product → | |
| 4 | 23425-LLB1-900 | BUSH 15MM | 1 | $14.70 USD | View product → | |
| 5 | 23431-LLB1-910 | SHAFT FINAL | 1 | $181.11 USD | View product → | |
| 6 | 23441-LCA4-E00 | GEAR FORWARD | 1 | $115.80 USD | View product → | |
| 7 | 23451-LLB1-900 | GEAR BACKWARD | 1 | $113.34 USD | View product → | |
| 8 | 23472-LLB1-900 | COLLAR 15X20X11 | 1 | $16.14 USD | View product → | |
| 9 | 23481-LCA4-E00 | SHIFT MAIN | 1 | $132.99 USD | View product → | |
| 10 | 23801-LLB1-900 | SPROCKET DRIVE 14T | 1 | $62.04 USD | View product → | |
| 11 | 23811-LLB1-900 | PLATE A2 FIXING | 1 | $4.17 USD | View product → | |
| 12 | 24221-LLB1-900 | FORK GEAR SHIFT | 1 | $98.25 USD | View product → | |
| 13 | 24241-KGB4-C00 | SHAFT GEAR SHIFT FORK GUIDE | 1 | $15.45 USD | View product → | |
| 14 | 24304-LLB1-900 | SHAFT DRUM | 1 | $30.96 USD | View product → | |
| 15 | 24305-LLB1-900 | SPRING DRUM | 2 | $14.04 USD | View product → | |
| 16 | 2431A-LLB1-E00 | DRUM ASSY GEAR SHIFT | 1 | $138.63 USD | View product → | |
| 17 | 24610-LLB1-900 | SPINDLE ASSY DRUM SHIFT | 1 | $56.58 USD | View product → | |
| 18 | 24701-LCA4-E00 | GEAR CHANGE HANDLE | 1 | $44.49 USD | View product → | |
| 19 | 24702-LCA4-E00 | BAR CHANGE HANDLE | 1 | $38.52 USD | View product → | |
| 20 | 24703-LLB1-900 | PIN CHANGE HANDLE | 1 | $5.31 USD | View product → | |
| 21 | 24704-LBA7-900 | SPRING CHANGE HANDLE | 1 | $31.17 USD | View product → | |
| 22 | 24707-LBA7-900 | BRKT CHANGE HANDLE | 1 | $65.22 USD | View product → | |
| 23 | 24710-LCA4-E00 | STAY CHANGE HANDLE ASSY | 1 | $37.83 USD | View product → | |
| 24 | 24711-LCA4-E00 | SHAFT COMP CHANGE HANDLE | 1 | $57.00 USD | View product → | |
| 25 | 24720-LCA4-E00 | ROD ASSY CHANGE HANDLE | 1 | $123.09 USD | View product → | |
| 26 | 24781-LCA5-E00 | COVER CHANGE HANDLE | 1 | $23.40 USD | View product → | |
| 27 | 40510-LLB1-900 | COVER CHAIN | 1 | $10.74 USD | View product → | |
| 28 | 40530-LLB1-900 | CHAIN DRIVE | 1 | $180.18 USD | View product → | |
| 29 | 53702-LBA7-900 | JOINT R BALL | 1 | $65.70 USD | View product → | |
| 30 | 53703-LBA7-900 | JOINT L BALL | 1 | $65.70 USD | View product → | |
| 31 | 90101-LCA5-E00 | SOCKET BOLT 5X12 | 1 | $6.06 USD | View product → | |
| 32 | 90451-0A01-001 | WASHER THRUST 14M/M | 4 | $1.95 USD | View product → | |
| 33 | 90451-1G07-001 | WASHER THRUST 15MM | 2 | $4.77 USD | View product → | |
| 34 | 90451-LLB1-900 | WASHER THRUST 22MM | 1 | $4.17 USD | View product → | |
| 35 | 90455-LLB1-900 | WASHER SPLINE 22MM | 1 | $9.39 USD | View product → | |
| 36 | 91107-LLB1-900 | BRG NEEDLE 22*30*13 | 1 | $71.79 USD | View product → | |
| 37 | 92000-06010-0G | BOLT HEX 6*10 (G) | 1 | $12.60 USD | View product → | |
| 38 | 92101-06020-0G | BOLT HEX 6*20 | 1 | $0.99 USD | View product → | |
| 39 | 94001-08080-0S | NUT HEX 8MM | 1 | $1.86 USD | View product → | |
| 40 | 94001-LBA7-900 | NUT HEX LH 8MM | 1 | $3.78 USD | View product → | |
| 41 | 94002-06060-0S | NUT HEX 6MM | 1 | $0.99 USD | View product → | |
| 42 | 94050-08080 | NUT FLANGE 8MM | 4 | $4.92 USD | View product → | |
| 43 | 94102-08000 | WASHER PLAIN 8MM | 2 | $1.86 USD | View product → | |
| 44 | 94111-08800 | WASHER SPG 8MM | 2 | $4.92 USD | View product → | |
| 45 | 94201-20150 | PIN SPLIT 2*15 | 1 | $2.61 USD | View product → | |
| 46 | 94510-20000 | CIR CLIP EX 20 | 1 | $6.39 USD | View product → | |
| 47 | 94510-22000 | CIR CLIP EX 22MM | 1 | $1.65 USD | View product → | |
| 48 | 94510-25000 | CIR CLIP EX 25 | 1 | $3.78 USD | View product → | |
| 49 | 94540-12028 | E RING 12 | 4 | $4.53 USD | View product → | |
