E09 — THROTTLE BODY, ASSY.

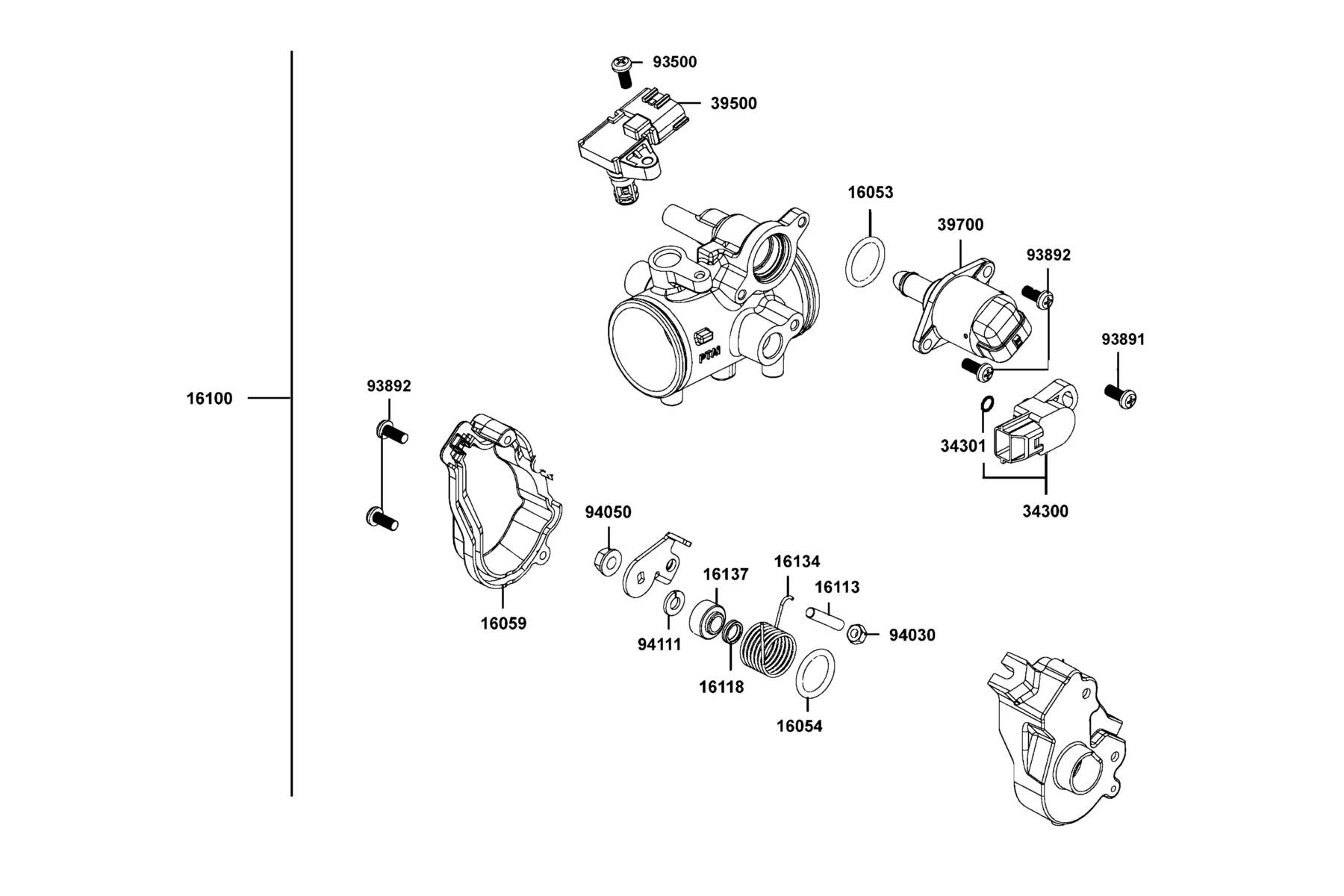

The THROTTLE BODY, ASSY. diagram contains 18 genuine OEM parts for the KYMCO MXU 700(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 16053-PTA1-800 | SEAL | 1 | $7.17 USD | View product → | |
| 2 | 16054-PTA1-800 | OIL RING | 1 | $7.17 USD | View product → | |
| 3 | 16059-LDB5-E00-N1R | COVER WIRE STAY (Black) | 1 | $17.82 USD | View product → | |
| 4 | 16100-AGA8-M00 | THROTTLE BODY ASSY | 1 | $565.38 USD | View product → | |
| 5 | 16113-PTA1-800 | PILOT SCREW | 1 | $25.65 USD | View product → | |
| 6 | 16118-LBF2-900 | SEAL THROTTLE SHAFT | 1 | $19.26 USD | View product → | |
| 7 | 16134-LDB5-E00 | SPG THROTTLE SHAFT | 1 | $9.78 USD | View product → | |
| 8 | 16137-PTA1-800 | COLLAR LEVER | 1 | $14.31 USD | View product → | |
| 9 | 34300-KKE3-900 | THROTTLE POSITION SENSOR | 1 | $105.60 USD | View product → | |
| 10 | 34301-KKE3-900 | O-RING T.P.S. | 1 | $4.92 USD | View product → | |
| 11 | 39500-PTA1-800 | SENSOR T-MAP | 1 | $234.75 USD | View product → | |
| 12 | 39700-PTA1-800 | BY PASS VALVE IDLE AIR | 1 | $234.75 USD | View product → | |
| 13 | 93500-05012-0F | SCREW PAN 5X12 | 1 | $12.12 USD | View product → | |
| 14 | 93891-05016-06 | SCREW WASHER 5* 16 | 1 | $1.86 USD | View product → | |
| 15 | 93892-05012-06 | SCREW WASHER 5*12 | 4 | $11.79 USD | View product → | |
| 16 | 94030-PTA1-800 | NUT HEX 5mm | 1 | $7.17 USD | View product → | |
| 17 | 94050-06080 | NUT FLANGE 6MM | 1 | $2.31 USD | View product → | |
| 18 | 94111-06800 | WASHER SPRING 6MM | 1 | $4.92 USD | View product → |
