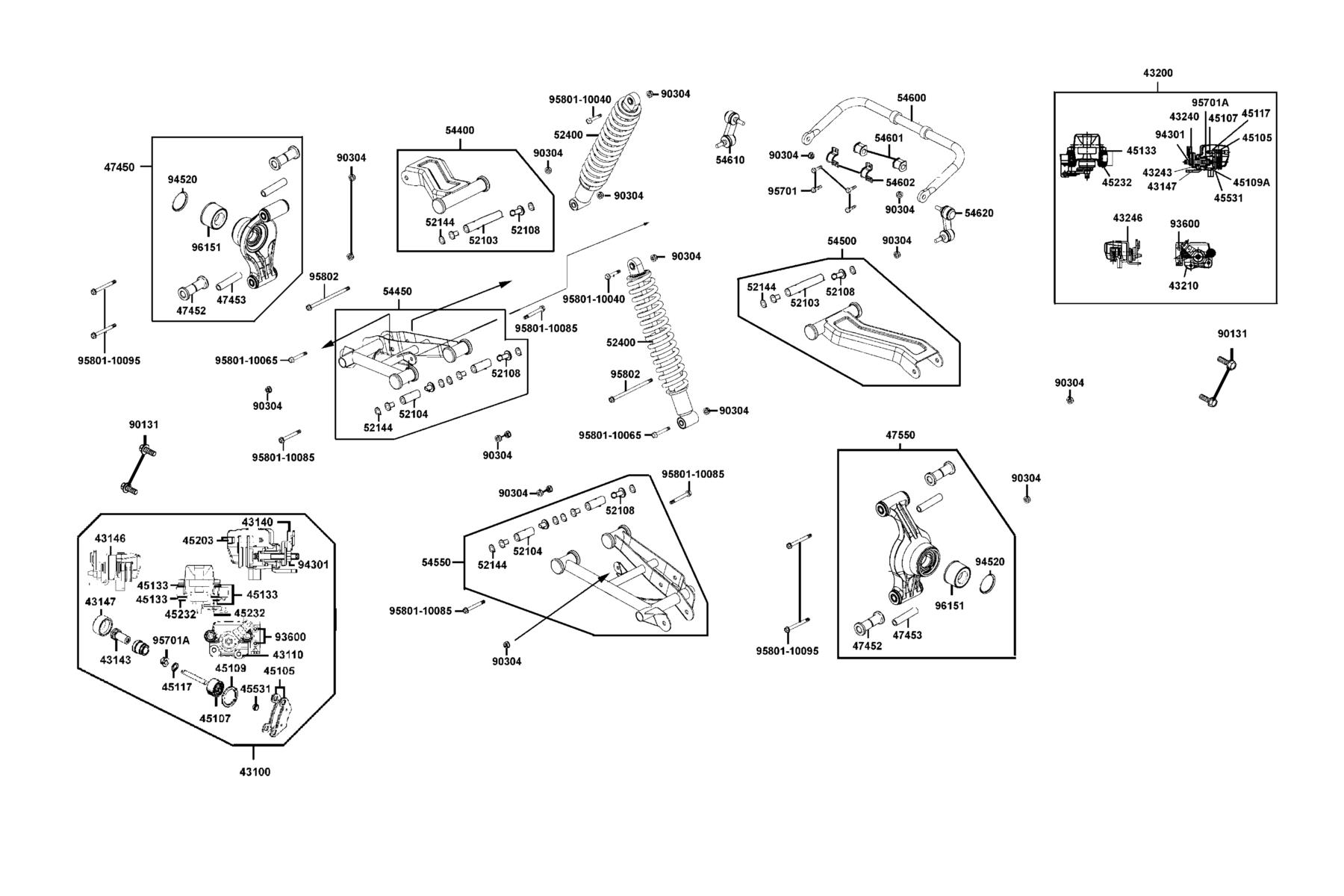

F16 — Cushion Assy Rr●Control Arm Assy Rr
The Cushion Assy Rr●Control Arm Assy Rr diagram contains 52 genuine OEM parts for the KYMCO MXU 700(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 43100-LFA5-E00-NJA | CALIPER ASSY REAR (Silver) | 1 | $97.14 USD | View product → | |
| 2 | 43110-LFA5-E00 | BRACKET CAILPER | 1 | $46.86 USD | View product → | |
| 3 | 43140-LEC1-E00 | ARM BRAKE | 1 | $21.60 USD | View product → | |
| 4 | 43143-LEC1-E00 | BOLT DRIVE | 1 | $4.05 USD | View product → | |
| 5 | 43146-LEC1-E00 | BRACKET CABLE | 1 | $3.12 USD | View product → | |
| 6 | 43147-LEC1-E00 | CAP | 1 | $0.93 USD | View product → | |
| 7 | 43200-LFA5-E00-NJA | CALIPER ASSY,REAR LH PARKING B (Silver) | 1 | $347.91 USD | View product → | |
| 8 | 43210-LFA5-E00 | BRACKET CALIPER | 1 | $53.79 USD | View product → | |
| 9 | 43240-LFA5-E00 | ARM BRAKE | 1 | $3.75 USD | View product → | |
| 10 | 43243-LFA5-E00 | BOLT DRIVE | 1 | $3.27 USD | View product → | |
| 11 | 43246-LFA5-E00 | BRACKET CABLE | 1 | $61.56 USD | View product → | |
| 12 | 45105-LFA5-305 | PAD ASSY | 1 | $61.56 USD | View product → | |
| 13 | 45107-LEC1-E00 | PISTON C/P (??25.4MM) | 1 | $16.77 USD | View product → | |
| 14 | 45109-LEC1-E00 | SEAL DUST | 1 | $0.63 USD | View product → | |
| 15 | 45109-LFA5-E00 | SEAL DUST | 1 | $5.22 USD | View product → | |
| 16 | 45116-LEC1-E00 | CLIP | 2 | — | Part details → | |
| 17 | 45117-LEC1-E00 | WASHER | 1 | $3.27 USD | View product → | |
| 18 | 45133-LEC1-E00 | BOOT | 4 | $6.24 USD | View product → | |
| 19 | 45203-LEC1-E00 | PIN HANGER | 1 | $7.53 USD | View product → | |
| 20 | 45232-LEC1-E00 | PIN BOLT | 2 | $15.84 USD | View product → | |
| 21 | 45531-LEC1-E00 | PLUG | 1 | $1.95 USD | View product → | |
| 22 | 47450-PWB1-900 | KNUCKLE REAR ASSEMBLY RH | 1 | $301.50 USD | View product → | |
| 23 | 47452-PWB1-900 | BUSHING RR SUSPENSION | 8 | $36.66 USD | View product → | |
| 24 | 47453-PWB1-900 | COLLAR SUSPENSION | 4 | $50.07 USD | View product → | |
| 25 | 47550-PWB1-E00 | KNUCKLE REAR ASSEMBLY LH | 1 | $324.90 USD | View product → | |
| 26 | 52103-PWB1-900 | SLEEVE SUSPENSION | 2 | $38.85 USD | View product → | |
| 27 | 52104-PWB1-900 | SLEEVE SUSPENSION | 4 | $22.98 USD | View product → | |
| 28 | 52108-PWB1-900 | BUSHING SUSPENSION | 12 | $11.31 USD | View product → | |
| 29 | 52144-PWB1-900 | SEAL SUSPENSION | 12 | $12.09 USD | View product → | |
| 30 | 52400-LKM5-E00-N8S | CUSHION ASSY RR | 1 | $329.88 USD | View product → | |
| 31 | 54400-AEC8-E00-N8S | CONTROL ARM ASSY UPPER R | 1 | $136.86 USD | View product → | |
| 32 | 54450-ALC1-E01-N8S | CONTROL ARM ASSY LOWER R | 1 | $176.64 USD | View product → | |
| 33 | 54500-AEC8-E00-N8S | CONTROL ARM ASSY UPPER L | 1 | $136.86 USD | View product → | |
| 34 | 54550-ALC1-E01-N8S | CONTROL ARM ASSY LOWER L | 1 | $171.69 USD | View product → | |
| 35 | 54600-LFE9-E00 | BAR STABILIZER | 1 | $204.90 USD | View product → | |
| 36 | 54601-LFE9-E00 | BUSH STABILIZER | 2 | $32.76 USD | View product → | |
| 37 | 54602-LFE9-E00 | HOLDER STABILIZER | 2 | $27.39 USD | View product → | |
| 38 | 54610-LFE9-E00 | JOINT STABILIZER RH | 1 | $117.00 USD | View product → | |
| 39 | 54620-LFE9-E00 | STABILIZER JOINT LH | 1 | $117.00 USD | View product → | |
| 40 | 90131-LFA5-E00 | BOLT FLANGE 8X22 | 4 | $5.07 USD | View product → | |
| 41 | 90304-GLW0-90A | NUT U FLANGE 10MM | 18 | $9.39 USD | View product → | |
| 42 | 93600-LEC1-E00 | SCREW FLAT 6MM | 2 | $3.27 USD | View product → | |
| 43 | 94301-08060 | NUT HEC 8MM | 1 | $5.22 USD | View product → | |
| 44 | 94520-55000 | CIR CLIP IN 55 | 2 | $13.95 USD | View product → | |
| 45 | 95701-08016-06 | BOLT FLANGE 8*16 | 4 | $4.53 USD | View product → | |
| 46 | 95701-LEC1-E00 | BOLT ADJUST | 1 | $9.51 USD | View product → | |
| 47 | 95801-10040-06 | BOLT FLANGE 10X40 | 1 | $21.60 USD | View product → | |
| 48 | 95801-10065-06 | BOLT FLANGE 10*65 | 1 | $7.02 USD | View product → | |
| 49 | 95801-10085-06 | BOLT FLANGE 10*85 | 4 | $19.59 USD | View product → | |
| 50 | 95801-10095-06 | BOLT FLANGE 10*95 | 4 | $13.17 USD | View product → | |
| 51 | 95802-PWB1-900 | SCREW CAP-HFH M10X1.25X180 | 2 | $43.56 USD | View product → | |
| 52 | 96151-PWB1-900 | BEARING WHEEL | 2 | $160.56 USD | View product → |
