F01 — Head Light

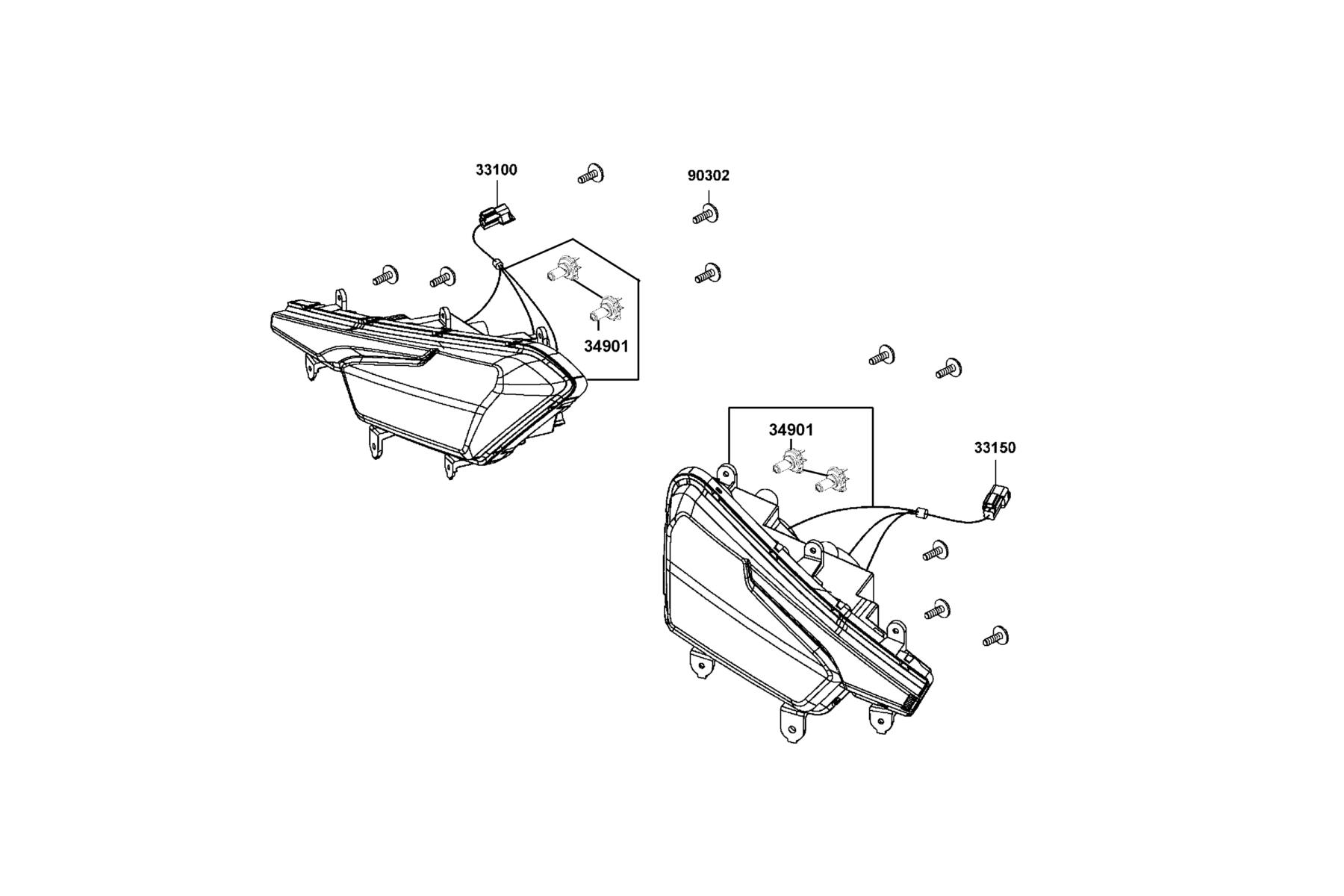

The Head Light diagram contains 4 genuine OEM parts for the KYMCO MXU 700(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33100-AGA8-E00 | LIGHT ASSY HEAD R | 1 | $449.94 USD | View product → | |
| 2 | 33150-AGA8-E00 | LIGHT ASSY HEAD L. | 1 | $449.94 USD | View product → | |
| 3 | 34901-KGB5-M30 | BULB HEAD LIGHT | 4 | $64.80 USD | View product → | |
| 4 | 90302-PWA1-900 | BOLT-WASH 5*16 | 10 | $4.92 USD | View product → |
