F11 — Battery

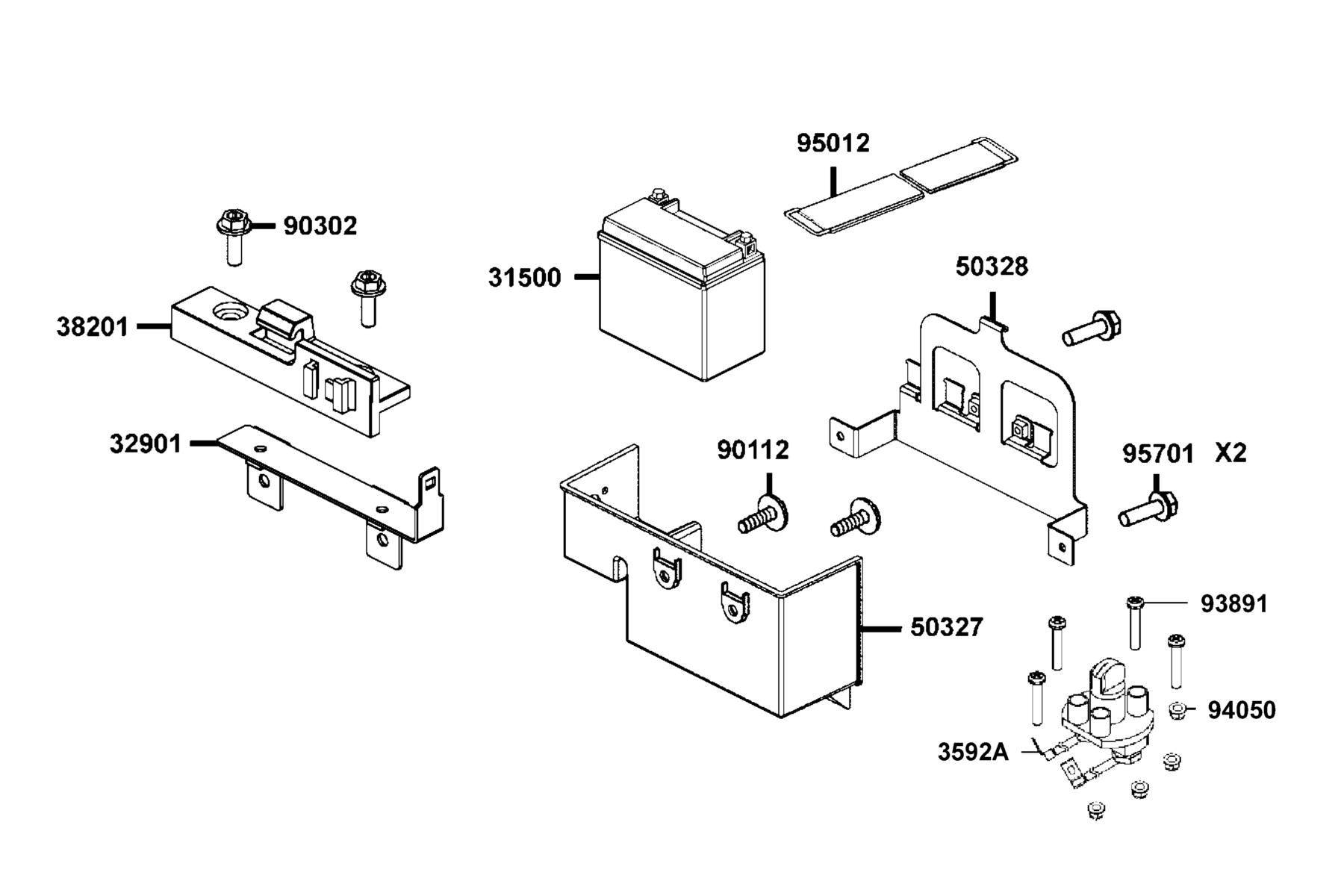

The Battery diagram contains 12 genuine OEM parts for the KYMCO MXU 700(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 31500-LDB5-E0A | BATTERY YTX20L-BS | 1 | $396.00 USD | View product → | |
| 2 | 32901-AGA8-M00 | STAY FUSE BOX | 1 | $12.78 USD | View product → | |
| 3 | 3592A-AGB3-E00 | SWITCH ASS'Y BATTERY | 1 | $205.95 USD | View product → | |
| 4 | 38201-AGA8-M00 | FIXED FUSE BOX | 1 | $6.24 USD | View product → | |
| 5 | 50327-AGA8-M00 | CASE. BATTERY | 1 | $20.10 USD | View product → | |
| 6 | 50328-AGA8-M00 | STAY BATTERY | 1 | $35.61 USD | View product → | |
| 7 | 90112-KNBN-901 | BOLT FLANGE 6MM | 2 | $3.78 USD | View product → | |
| 8 | 90302-KEC8-900 | BOLT PAN 5*9 | 2 | $9.78 USD | View product → | |
| 9 | 93891-05035-06 | BOLT WASH 5*35 | 4 | $4.92 USD | View product → | |
| 10 | 94050-05060 | NUT FLANGE 5MM | 4 | $4.92 USD | View product → | |
| 11 | 95012-KKA7-900 | TOOL BAND | 1 | $22.47 USD | View product → | |
| 12 | 95701-06012-06 | BOLT FLANGE 6X12 | 2 | $1.86 USD | View product → |
