F08 — Rear Wheel

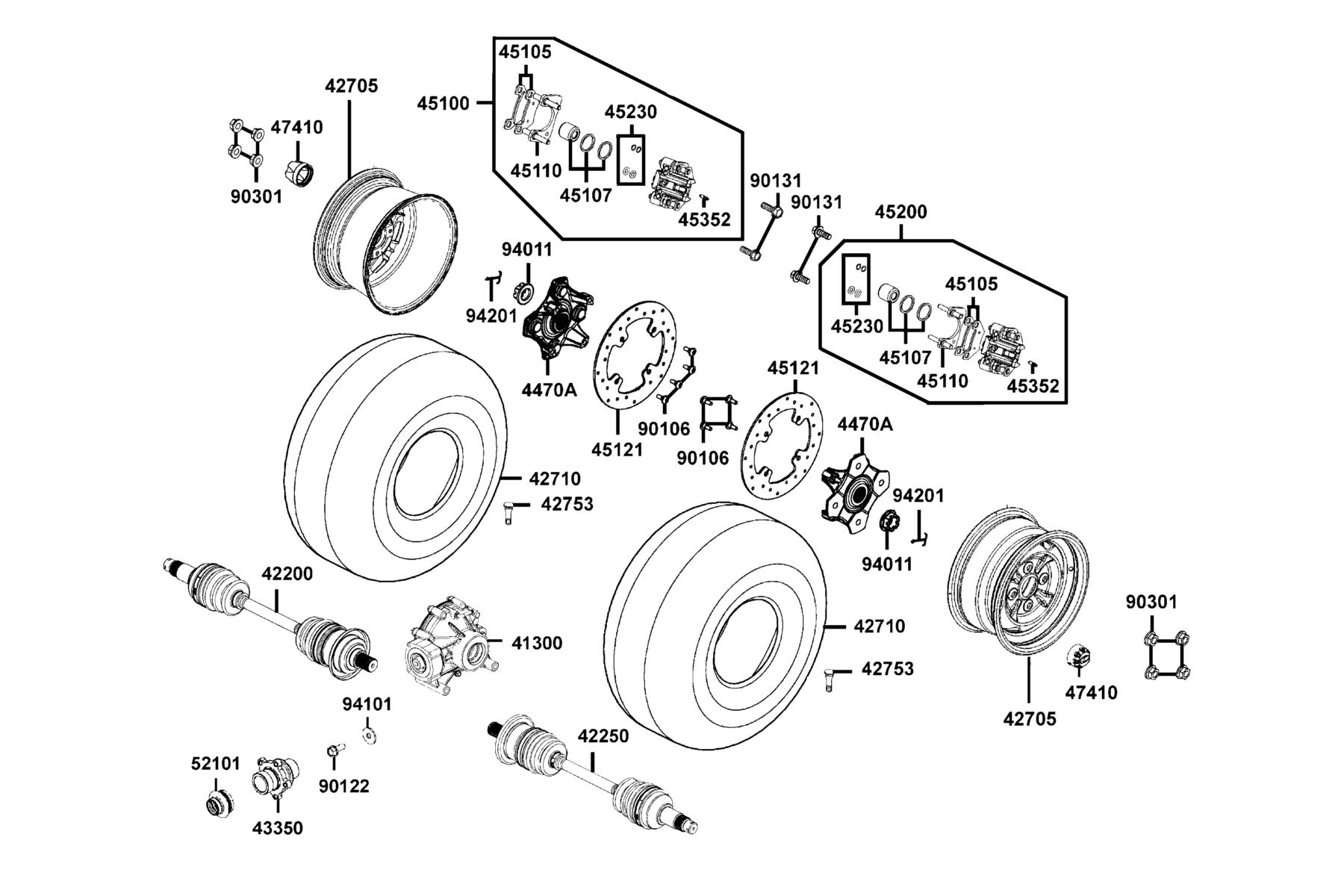

The Rear Wheel diagram contains 25 genuine OEM parts for the KYMCO MXU 700(2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 41300-AGA8-E00 | GEAR ASSY RR FINAL | 1 | $693.26 USD | View product → | |
| 2 | 42200-AGA8-M00 | HALF SHAFT REAR-RH | 1 | $562.17 USD | View product → | |
| 3 | 42250-AGA8-M00 | HALF SHAFT REAR-LH | 1 | $566.67 USD | View product → | |
| 4 | 42705-LFE9-E00-MAS | RIM COMP RR WHEEL | 2 | $302.79 USD | View product → | |
| 5 | 42710-LKM5-E0A | TIRE ASSY RR (AT25*10-12 6PR) | 2 | $426.98 USD | View product → | |
| 6 | 42753-KNBN-90B | VALVE RIM (TR412) | 2 | $17.70 USD | View product → | |
| 7 | 43350-LFE9-E00 | HOLDER DISK RR BRK | 1 | $225.09 USD | View product → | |
| 8 | 4470A-LFA5-E01 | HUB ASSEMBLY | 2 | $208.53 USD | View product → | |
| 9 | 45100-PWB1-600 | CALIPER BRAKE RH | 1 | $501.57 USD | View product → | |
| 10 | 45105-PWB1-306 | BRAKE PADS | 2 | $160.32 USD | View product → | |
| 11 | 45107-PWB1-305 | PISTON AND SEALS (??31.75MM) | 2 | $129.42 USD | View product → | |
| 12 | 45110-PWB1-305 | MOUNT BRACKET ASSEMBLS | 2 | $173.49 USD | View product → | |
| 13 | 45121-PWB1-900 | DISK BRAKE | 2 | $113.91 USD | View product → | |
| 14 | 45200-PWB1-600 | CALIPER BRAKE LH | 1 | $391.68 USD | View product → | |
| 15 | 45230-PWB1-305 | GUIDE O RINGS | 2 | $88.05 USD | View product → | |
| 16 | 45352-PWB1-305 | BLEEDER | 2 | $57.06 USD | View product → | |
| 17 | 47410-LDB5-E00 | CAP WHEEL SHAFT | 2 | $15.06 USD | View product → | |
| 18 | 52101-LFE9-E00 | BOOT RR PROPELLER SHAFT | 1 | $41.97 USD | View product → | |
| 19 | 90106-PWB1-900 | BOLT SHOULDER | 4 | $18.24 USD | View product → | |
| 20 | 90122-LKA8-E00 | BOLT FLANGE 10x20 | 1 | $19.26 USD | View product → | |
| 21 | 90131-PRB3-900 | BOLT FLANGE 8X20 | 4 | $22.50 USD | View product → | |
| 22 | 90301-LDB5-E00 | NUT WHEEL | 8 | $18.24 USD | View product → | |
| 23 | 94011-PWB1-900 | NUT CASTLE FLANGE M22x1.5 | 2 | $52.95 USD | View product → | |
| 24 | 94101-10800 | WASHER PLAIN 10MM | 1 | $2.61 USD | View product → | |
| 25 | 94201-30400 | PIN SPLIT 3*40 | 2 | $10.14 USD | View product → |
