F02 — Speedmeter

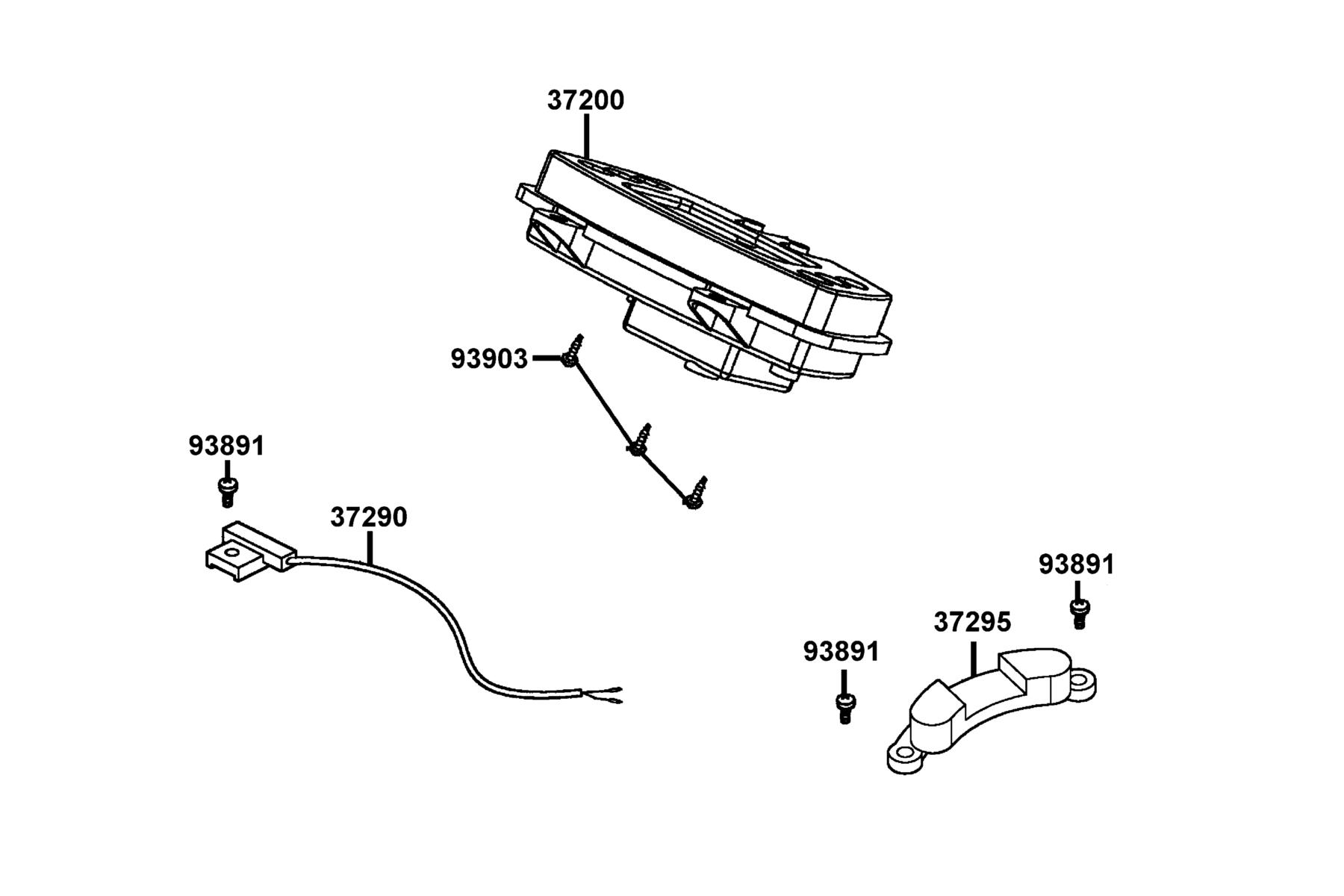

The Speedmeter diagram contains 5 genuine OEM parts for the KYMCO MXU 150X 2023MY. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 37200-PWA8-900 | METER ASSY SPEED | 1 | $333.21 USD | View product → | |
| 2 | 37290-LLB1-E00 | SENSOR WHEEL RPM | 1 | $46.65 USD | View product → | |
| 3 | 37295-LLB1-E00 | SENSOR MAGNET WHEEL RPM | 1 | $24.96 USD | View product → | |
| 4 | 93891-05012-06 | SCREW WASHER 5*12 | 3 | $4.92 USD | View product → | |
| 5 | 93903-35260 | SCREW TAPPING 5*12 | 3 | $4.92 USD | View product → |
