F03 — Handle Steering

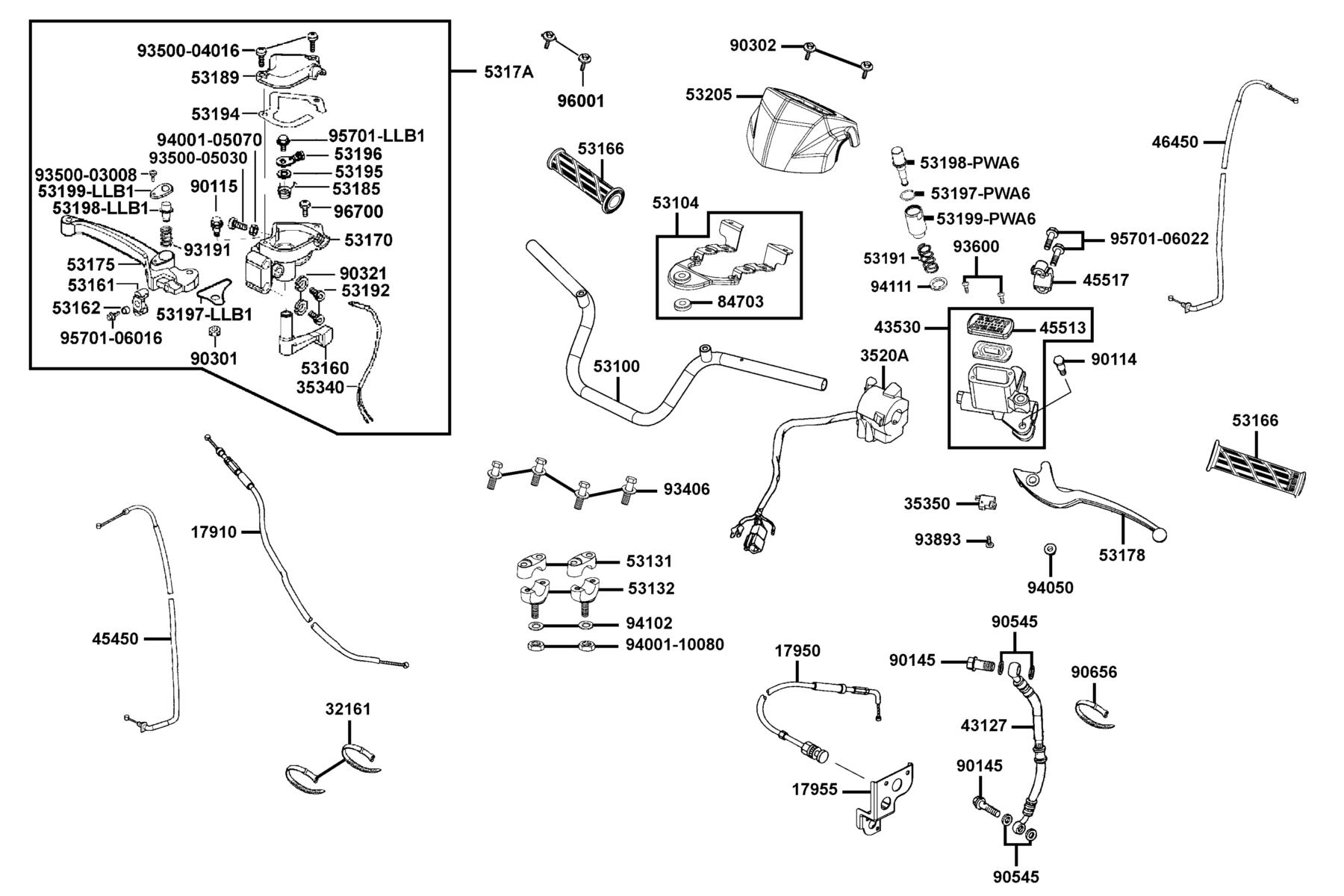

The Handle Steering diagram contains 66 genuine OEM parts for the KYMCO MXU 150X 2023MY. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17910-LCA4-E00 | CABLE COMP THROT | 1 | $80.10 USD | View product → | |
| 2 | 17950-LLB1-900 | CABLE COMP CHOKE | 1 | $44.07 USD | View product → | |
| 3 | 17955-LLB1-900 | STAY CHOKE & FUEL COCK | 1 | $19.38 USD | View product → | |
| 4 | 32161-4D04-001 | BAND BI WIRE | 2 | $4.53 USD | View product → | |
| 5 | 3520A-LDF3-900 | SW ASSY HANDLE COMP | 1 | $148.20 USD | View product → | |
| 6 | 35340-LLB1-800 | SW ASSY FR STOP | 1 | $44.07 USD | View product → | |
| 7 | 35350-KNBN-901 | SW ASSY RR STOP | 1 | $38.34 USD | View product → | |
| 8 | 43127-LLB1-800 | HOSE ASSY RR BRAKE | 1 | $193.05 USD | View product → | |
| 9 | 43530-PWA6-305 | CYLINDER SET RR MASTER | 1 | $195.15 USD | View product → | |
| 10 | 45450-LLB1-900 | CABLE COMP FR BRK R | 1 | $58.50 USD | View product → | |
| 11 | 45513-GLW0-91A | CAP MASTER CYLINDER | 1 | $20.58 USD | View product → | |
| 12 | 45517-KFAF-900 | HOLDER M/C | 1 | $20.91 USD | View product → | |
| 13 | 46450-LLB1-900 | CABLE COMP FR BRK L | 1 | $58.50 USD | View product → | |
| 14 | 53100-LCA4-600 | HANDLE PIPE STEERING | 1 | $127.02 USD | View product → | |
| 15 | 53104-LCA4-E00 | STAY COMP HANDLE COVER | 1 | $32.49 USD | View product → | |
| 16 | 53131-4K39-001 | HOLDER HANDLE PIPE | 2 | $17.79 USD | View product → | |
| 17 | 53132-LLB1-900 | HOLDER UNDER HANDLE PIPE | 2 | $56.58 USD | View product → | |
| 18 | 53160-LLB1-800 | THUMB THROTTLE | 1 | $38.52 USD | View product → | |
| 19 | 53161-LLB1-800 | EQUALIZER BRAKE CABLE | 1 | $22.47 USD | View product → | |
| 20 | 53162-LLB1-810 | SPACER | 1 | $4.50 USD | View product → | |
| 21 | 53166-KC5-0010 | GRIP L HANDLE | 2 | $24.15 USD | View product → | |
| 22 | 53170-LLB1-800 | BRKT HANDLE R | 1 | $57.03 USD | View product → | |
| 23 | 53175-LBD4-900-M2A | LEVER R STRG HANDLE | 1 | $53.61 USD | View product → | |
| 24 | 53178-PWA8-900-M2A | LEVER L STRG HANDLE | 1 | $38.01 USD | View product → | |
| 25 | 5317A-LCA4-M01 | BRKT ASSY HANDLE R | 1 | $131.82 USD | View product → | |
| 26 | 53185-LLB1-800 | SPPING RETURN | 1 | $17.46 USD | View product → | |
| 27 | 53189-LLB1-800 | COVER BRKT R | 1 | $33.39 USD | View product → | |
| 28 | 53191-PWA6-900 | SPRING RETURN | 1 | $5.82 USD | View product → | |
| 29 | 53192-LLB1-810 | BOLT WIRE ADJUST | 2 | $10.65 USD | View product → | |
| 30 | 53194-LLB1-800 | PACKING | 1 | $11.40 USD | View product → | |
| 31 | 53195-LLB1-800 | WASHER FLAT | 1 | $15.72 USD | View product → | |
| 32 | 53196-LLB1-810 | PLATE CHOKE | 1 | $17.70 USD | View product → | |
| 33 | 53197-LLB1-810 | STOPPER PBK | 1 | — | Part details → | |
| 34 | 53197-PWA6-900 | CLIP | 1 | $5.34 USD | View product → | |
| 35 | 53198-LLB1-810 | BUTTON PBK | 1 | — | Part details → | |
| 36 | 53198-PWA6-900 | BUTTON PARKING | 1 | $11.04 USD | View product → | |
| 37 | 53199-LLB1-810 | COVER PBK | 1 | — | Part details → | |
| 38 | 53199-PWA6-900 | COVER PARING | 1 | $11.61 USD | View product → | |
| 39 | 53205-LCA5-M00-KDR | COVER HANDLE | 1 | $47.52 USD | View product → | |
| 40 | 84703-LLB1-900 | RUBBER TAIL LIGHT | 1 | $3.96 USD | View product → | |
| 41 | 90114-1F66-007 | BOLT HANDLE LEVER | 1 | $4.92 USD | View product → | |
| 42 | 90115-LLB1-810 | BOLT HANDLE LEVER PIROT | 1 | — | Part details → | |
| 43 | 90145-LEA3-E00 | OIL BOLT 10*22 | 2 | $22.86 USD | View product → | |
| 44 | 90301-LLB1-810 | NUT U 6MM(K) | 1 | — | Part details → | |
| 45 | 90302-PWA1-900 | BOLT-WASH 5*16 | 2 | $4.92 USD | View product → | |
| 46 | 90321-LLB1-810 | NUT FIXING | 3 | $3.54 USD | View product → | |
| 47 | 90545-3L00-001 | WASHER OIL BOLT | 4 | $2.91 USD | View product → | |
| 48 | 90545-3L00-001(wrong) | WASHER OIL BOLT | 4 | $3.78 USD | View product → | |
| 49 | 90656-KCBC-900 | BAND OIL HANDLE 8X146 | 1 | $3.93 USD | View product → | |
| 50 | 93191-LLB1-810 | SPG HAND BRAKE | 1 | — | Part details → | |
| 51 | 93406-LLB1-900 | BOLT-WASHER 8*35 | 4 | $4.92 USD | View product → | |
| 52 | 93500-03008-0GG | SCREW PAN M3*8 | 1 | — | Part details → | |
| 53 | 93500-04016-0GG | SCREW PAN M4*16 | 2 | — | Part details → | |
| 54 | 93500-05030-0G | SCREW BOLT M5*30 | 1 | $1.95 USD | View product → | |
| 55 | 93600-04012-1G | SCREW FLAT 4*12 | 2 | $5.67 USD | View product → | |
| 56 | 93893-04012-18 | SCREW WASHER 4*12 | 1 | $1.86 USD | View product → | |
| 57 | 94001-05070-0SG | NUT HEX 5MM | 1 | $4.92 USD | View product → | |
| 58 | 94030-10080 | NUT HEX 10MM | 2 | $12.09 USD | View product → | |
| 59 | 94050-06080 | NUT FLANGE 6MM | 1 | $2.31 USD | View product → | |
| 60 | 94101-10800 | WASHER PLAIN 10MM | 2 | $2.61 USD | View product → | |
| 61 | 94111-PWA6-900 | WASHER SPRING | 1 | $5.16 USD | View product → | |
| 62 | 95701-06016-07G | BOLT FLANGE SH 6*16 (KG) | 1 | $0.99 USD | View product → | |
| 63 | 95701-06022-06 | BOLT FLANGE 6*22 | 2 | $4.26 USD | View product → | |
| 64 | 95701-LLB1-810 | BOLT FLANGE M8X12 | 1 | — | Part details → | |
| 65 | 96001-06022-06 | BOLT FLANGE SH 6X22 | 2 | $4.26 USD | View product → | |
| 66 | 96600-06020-07G | SOCKET BOLT 6X20 | 1 | $6.72 USD | View product → |
