F14 — Kick Starter Arm

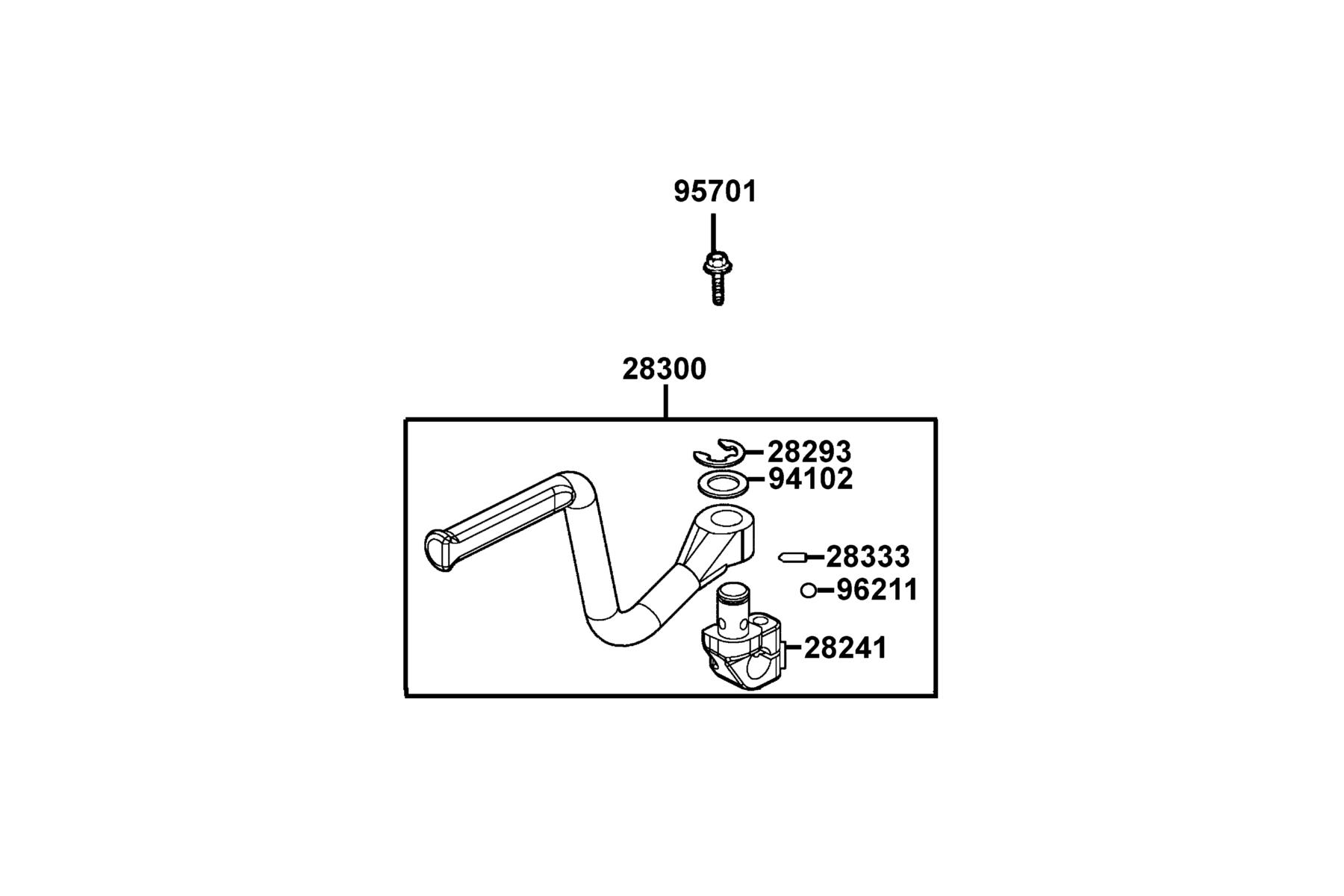

The Kick Starter Arm diagram contains 7 genuine OEM parts for the KYMCO MXU 150X 2023MY. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 28241-LBD4-900 | JOINT KICK ARM | 1 | $75.63 USD | View product → | |
| 2 | 28293-3C33-001 | CLIP KICK STARTER ARM | 1 | $12.78 USD | View product → | |
| 3 | 28300-LCA4-E00 | ARM ASSY KICK STARTER | 1 | $109.68 USD | View product → | |
| 4 | 28333-1D24-001 | SPG KICK STARTER | 1 | $13.74 USD | View product → | |
| 5 | 94102-13700 | WASHER PLAIN 13MM | 1 | $4.92 USD | View product → | |
| 6 | 95701-06022-06 | BOLT FLANGE 6*22 | 1 | $4.26 USD | View product → | |
| 7 | 96211-08000 | BALL STEEL 8 | 1 | $1.83 USD | View product → |
