F10 — Battery

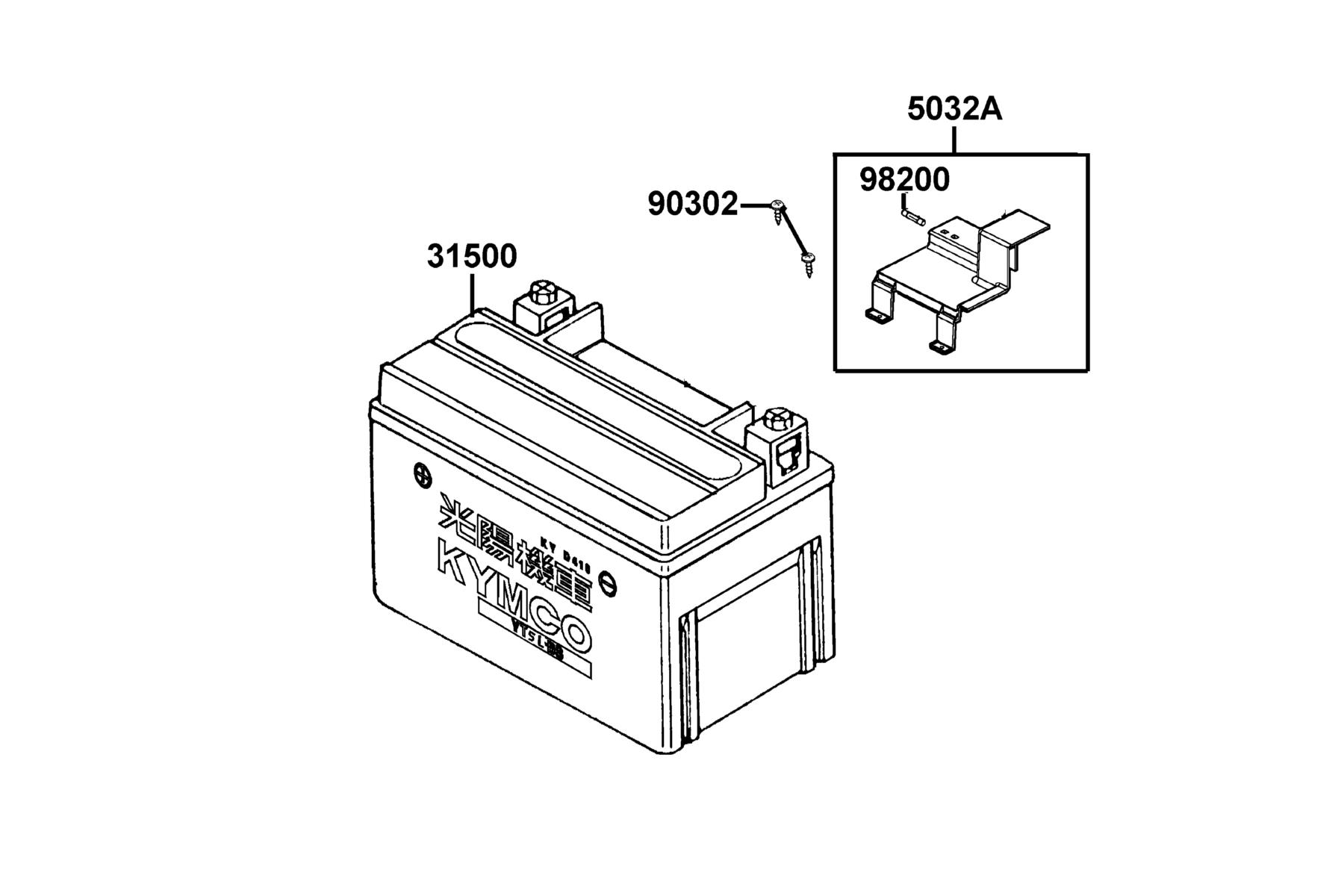

The Battery diagram contains 4 genuine OEM parts for the KYMCO MXU 150X 2023MY. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 31500-KFAF-90B | BATTERY GTX9-BS | 1 | $232.89 USD | View product → | |
| 2 | 5032A-LCA4-E00 | COVER ASSY BATTERY | 1 | $39.36 USD | View product → | |
| 3 | 90302-PWA1-900 | BOLT-WASH 5*16 | 2 | $4.92 USD | View product → | |
| 4 | 98200-12000 | FUSE 20A | 1 | $5.10 USD | View product → |
