F20 — Emblem●Stripe

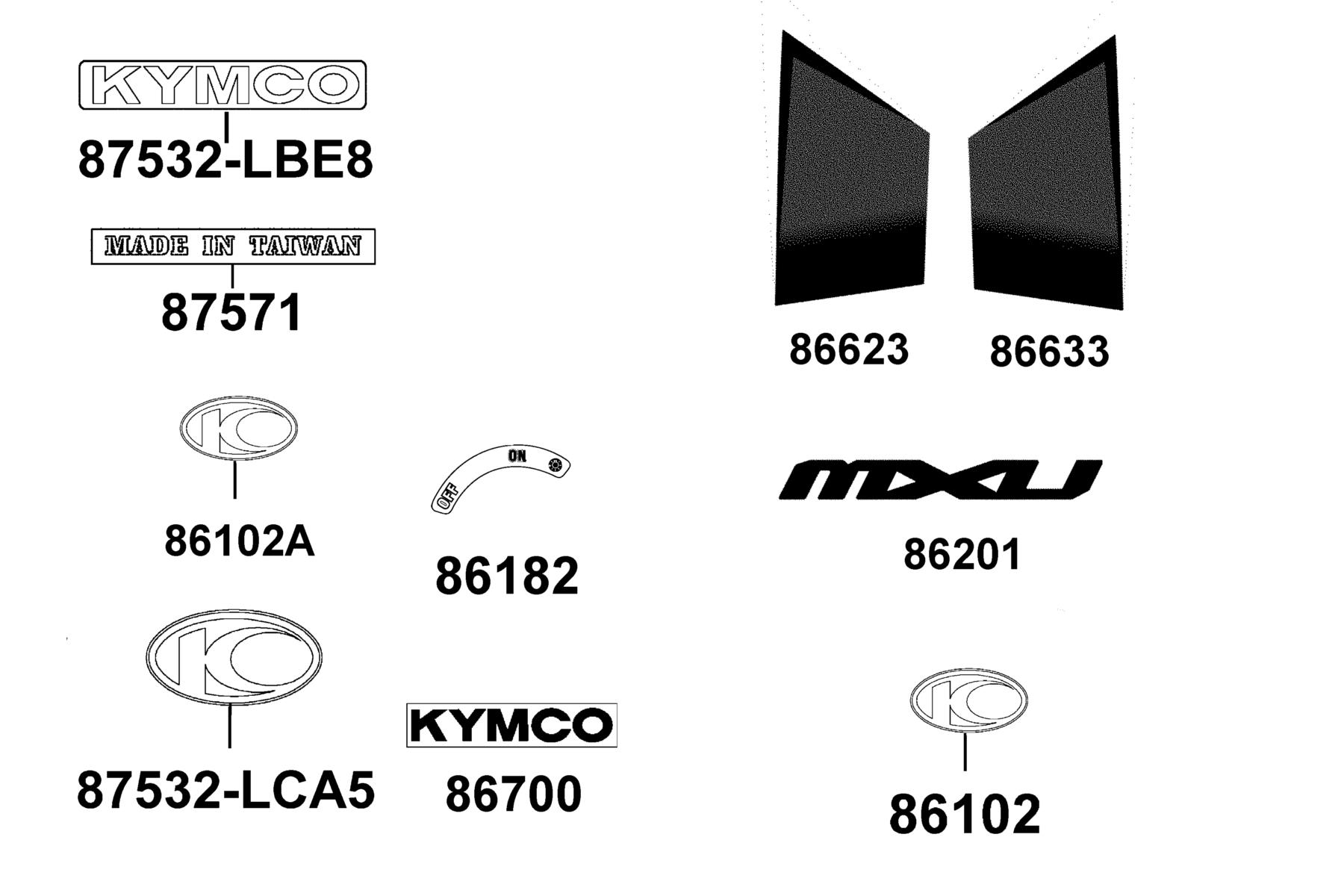

The Emblem●Stripe diagram contains 8 genuine OEM parts for the KYMCO MXU 150X 2023MY. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 86182-LCA5-MVV-T01 | SW LABEL | 1 | $22.98 USD | View product → | |
| 2 | 86201-AGA9-M00-T02 | EMB FR COVER | 2 | $62.22 USD | View product → | |
| 3 | 86623-LCA4-M00-T02 | STRIPE R SIDE COVER | 2 | $30.60 USD | View product → | |
| 4 | 86633-LCA4-M00-T02 | STRIPE L SIDE COVER | 2 | $30.60 USD | View product → | |
| 5 | 86700-LCA4-M00-T01 | STRIPE KYMCO-150MM (PP) | 1 | — | Part details → | |
| 6 | 87532-LBE8-900-T02 | STRIPE KYMCO | 1 | $17.82 USD | View product → | |
| 7 | 87532-LCA5-900-T03 | STRIPE K-LOGO 60MM | 1 | $18.72 USD | View product → | |
| 8 | 87571-LCA5-M30-T01 | LABEL MIT | 1 | $4.53 USD | View product → |
