E05 — Driven Pulley

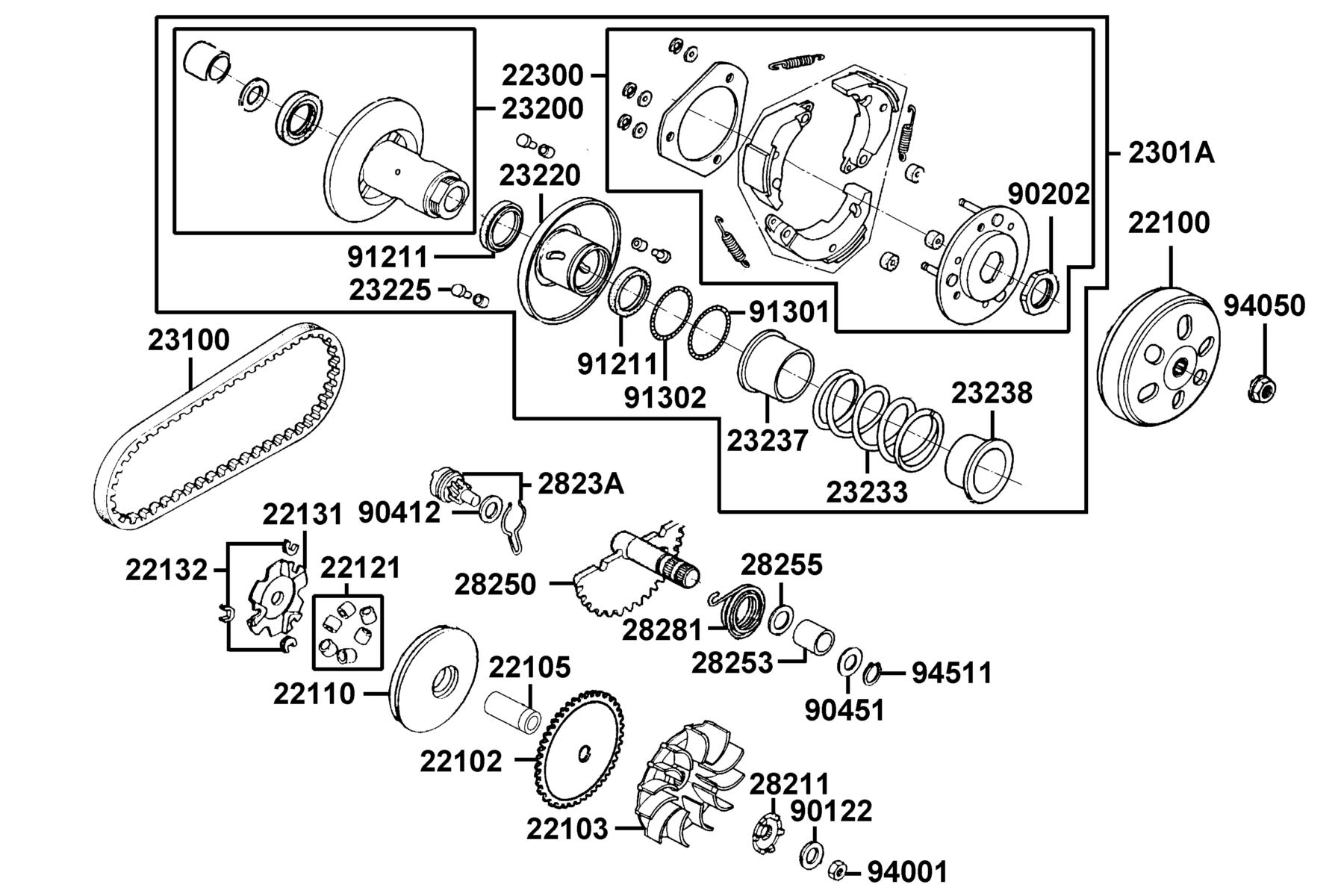

The Driven Pulley diagram contains 34 genuine OEM parts for the KYMCO LIKE 50(2013~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 22100-LHM9-E10 | CLUTCH OUTER | 1 | $112.89 USD | View product → | |
| 2 | 22102-LDC8-E10 | FACE DRIVE | 1 | $58.98 USD | View product → | |
| 3 | 22103-KEB7-C00 | FACE CVT COOLING | 1 | $11.79 USD | View product → | |
| 4 | 22105-KFA5-C00 | BOSS DRIVE FACE | 1 | $25.26 USD | View product → | |
| 5 | 22110-LDC8-E10 | FACE COMP MOVABLE DRIVE | 1 | $48.21 USD | View product → | |
| 6 | 22121-GLW0-315 | ROLLER SET WEIGHT (1SET:6PCS) | 1 | $39.93 USD | View product → | |
| 7 | 22131-GHAH-C00 | PLATE RAMP | 1 | $36.93 USD | View product → | |
| 8 | 22132-GLW0-315 | PIECE SLIDE(1SET:3PCS) | 1 | $28.35 USD | View product → | |
| 9 | 22300-KXCX-900 | PLATE ASSY DRIVE | 1 | $130.17 USD | View product → | |
| 10 | 2301A-KEB7-C00 | PULLEY SUB ASSY | 1 | $282.90 USD | View product → | |
| 11 | 23100-KEB7-C00 | BELT DRIVE | 1 | $137.31 USD | View product → | |
| 12 | 23200-GAR1-C00 | FACE ASSY DRIVEN | 1 | $94.62 USD | View product → | |
| 13 | 23220-GKAK-C00 | FACE COMP DRIVEN H1 | 1 | $156.96 USD | View product → | |
| 14 | 23225-GAR1-C00 | PIN GUIDE | 1 | $1.95 USD | View product → | |
| 15 | 23233-GHE8-001 | SPG DRIVEN FACE | 1 | $33.42 USD | View product → | |
| 16 | 23233-GHE8-001(wrong) | SPG DRIVEN FACE | 1 | $40.11 USD | View product → | |
| 17 | 23237-GAR1-C00 | COLLAR SEAL | 1 | $46.74 USD | View product → | |
| 18 | 23238-GGS7-C00 | COLLAR SPG | 1 | $17.28 USD | View product → | |
| 19 | 28211-KEB7-W10 | RATCHET KICK STARTER | 1 | $36.30 USD | View product → | |
| 20 | 2823A-GKAK-W10 | GEAR ASSY KICK DRIVEN | 1 | $73.20 USD | View product → | |
| 21 | 28250-LDF7-E10 | SPINDLE COMP KICK STARTER | 1 | $93.54 USD | View product → | |
| 22 | 28253-GBN2-C00 | BUSH KICK SPDL | 1 | $7.53 USD | View product → | |
| 23 | 28255-GFS6-C00 | COLLAR KICK BOSS | 1 | $8.43 USD | View product → | |
| 24 | 28281-GBN2-C00 | SPRING KICK RETURN | 1 | $16.11 USD | View product → | |
| 25 | 90122-GCS3-C00 | WASHER 12MM | 1 | $4.92 USD | View product → | |
| 26 | 90202-1G87-C00 | NUT SPECIAL 28MM | 1 | $14.07 USD | View product → | |
| 27 | 90412-3K29-C00 | WASHER THRUST 10M/M | 1 | $4.59 USD | View product → | |
| 28 | 90451-GBN2-C00 | WASHER KICK SPINDLE | 1 | $1.65 USD | View product → | |
| 29 | 91211-GHK8-C00 | OIL SEAL 34*39*3 | 1 | $16.77 USD | View product → | |
| 30 | 91301-KEA5-742 | O-RING 36X1.5 | 1 | $4.92 USD | View product → | |
| 31 | 91302-PKA9-C00 | O-RING 39.8*2.2 | 1 | $5.88 USD | View product → | |
| 32 | 94001-12280-0SG | NUT HEX 12MM(C) | 1 | $1.65 USD | View product → | |
| 33 | 94050-10080 | NUT FLANGE 10MM | 1 | $4.92 USD | View product → | |
| 34 | 94511-14000 | CIR CLIP EX 14 | 1 | $6.39 USD | View product → |
