F20 — Frame Body

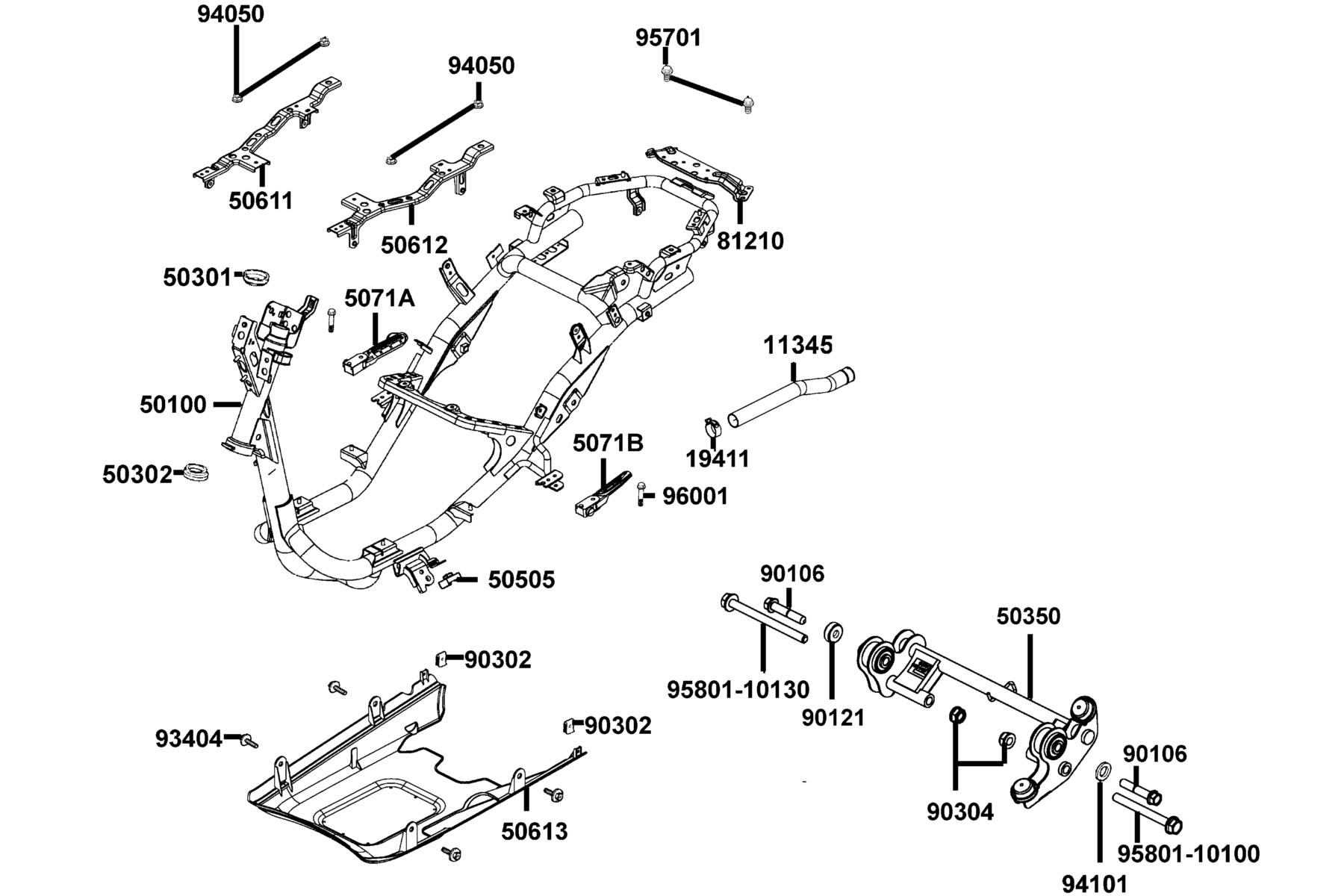

The Frame Body diagram contains 23 genuine OEM parts for the KYMCO LIKE 50(2013~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11345-LGR4-E10 | DUCT L COVER | 1 | $45.96 USD | View product → | |
| 2 | 19411-KNBN-C10 | CLIP HOSE | 1 | $27.12 USD | View product → | |
| 3 | 50100-LGR4-E10 | BODY COMP FRAME | 1 | $435.08 USD | View product → | |
| 4 | 50301-KGN7-C00 | RACE UP STRG BALL | 1 | $18.57 USD | View product → | |
| 5 | 50302-2H68-C00 | RACE (STRG BOT) BALL | 1 | $15.84 USD | View product → | |
| 6 | 50350-LGR4-E10 | ENG HANGER COMP | 1 | $172.62 USD | View product → | |
| 7 | 50505-PUA3-B50 | STOPPER RUBBER | 1 | $9.39 USD | View product → | |
| 8 | 50611-LGR5-E10 | "RNFCT. R,FLOOR" | 1 | $99.78 USD | View product → | |
| 9 | 50612-LGR5-E10 | "RNFCT.L,FLOOR" | 1 | $99.78 USD | View product → | |
| 10 | 50613-LGR5-E10 | COVER UNDER | 1 | $110.16 USD | View product → | |
| 11 | 5071A-LDA6-C00 | BAR STEP R ASSY | 1 | $114.12 USD | View product → | |
| 12 | 5071B-LDA6-C00 | BAR STEP L ASSY | 1 | $114.12 USD | View product → | |
| 13 | 81210-LGR5-E10 | STAY CARRIER | 1 | $60.03 USD | View product → | |
| 14 | 90106-GFY6-901 | BOLT FLANGE 10X55 | 2 | $17.28 USD | View product → | |
| 15 | 90121-GFY6-C00 | COLLAR DISTANCE | 1 | $22.62 USD | View product → | |
| 16 | 90302-SDA4-C01 | NUT SPRING 4MM | 1 | $0.99 USD | View product → | |
| 17 | 90304-GHE8-C00 | NUT U 10MM (C) | 1 | $18.33 USD | View product → | |
| 18 | 93404-06012-07 | BOLT WASH 6*12 | 4 | $4.92 USD | View product → | |
| 19 | 94050-06080 | NUT FLANGE 6MM | 4 | $2.31 USD | View product → | |
| 20 | 94101-10800 | WASHER PLAIN 10MM | 1 | $2.61 USD | View product → | |
| 21 | 95701-06012-08 | BOLT FLANGE 6*12 | 2 | $2.61 USD | View product → | |
| 22 | 95801-10100-08G | BOLT FLANGE 10*100 (CG) | 1 | — | Part details → | |
