F19 — Wire Harness

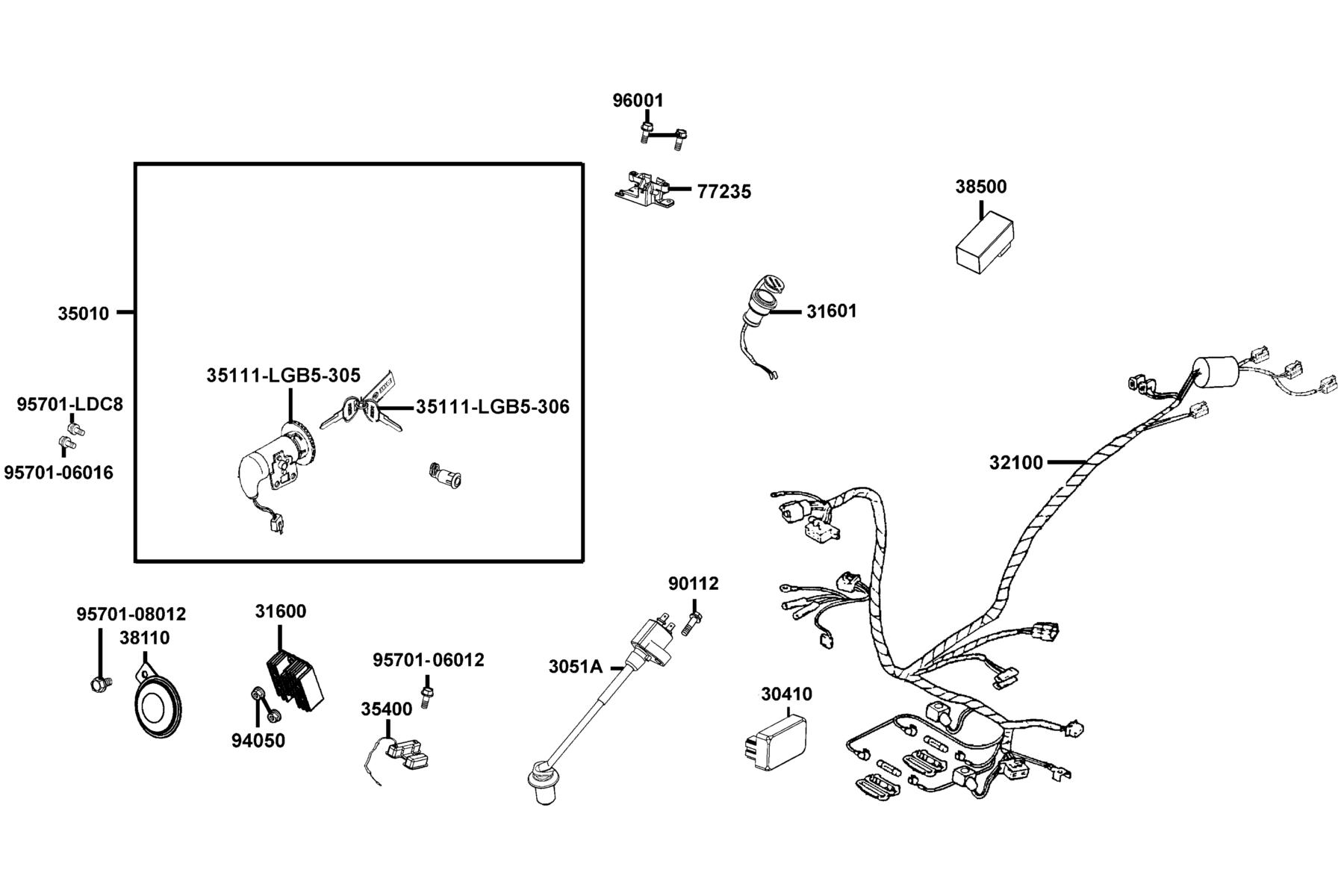

The Wire Harness diagram contains 19 genuine OEM parts for the KYMCO LIKE 50(2013~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 30410-LHB3-E10 | UNIT COMP C.D.I. | 1 | $153.15 USD | View product → | |
| 2 | 3051A-KELE-C00 | COIL ASSY IGN | 1 | $108.84 USD | View product → | |
| 3 | 31600-LCD3-C01 | REG REC COMP(DC) | 1 | $125.70 USD | View product → | |
| 4 | 31601-LFC2-E10 | SOCKET COMP DC 12V | 1 | $73.80 USD | View product → | |
| 5 | 32100-LGR4-M30 | HARNESS WIRE | 1 | $170.91 USD | View product → | |
| 6 | 35010-LGR4-M30 | KEY SET | 1 | $155.55 USD | View product → | |
| 7 | 35111-LGB5-305 | KEY COMP R | 1 | $34.92 USD | View product → | |
| 8 | 35111-LGB5-306 | KEY COMP L | 1 | $34.92 USD | View product → | |
| 9 | 35400-LHB3-E10 | RESISTOR COMP | 1 | $44.31 USD | View product → | |
| 10 | 38110-KGC4-B50 | HORN COMP | 1 | $60.87 USD | View product → | |
| 11 | 38500-KKDK-C00 | SET START MAG | 1 | $152.13 USD | View product → | |
| 12 | 77235-LGB5-E10 | SEAT CATCH COMP | 1 | $72.51 USD | View product → | |
| 13 | 90112-KRDR-C00 | BOLT FLANGE 5*22 | 1 | $0.99 USD | View product → | |
| 14 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → | |
| 15 | 95701-06012-08 | BOLT FLANGE 6*12 | 1 | $2.61 USD | View product → | |
| 16 | 95701-06016-08 | BOLT FLANGE 6*16 | 1 | $4.92 USD | View product → | |
| 17 | 95701-08012-08G | BOLT FLANGE 8X12(C) | 1 | $3.27 USD | View product → | |
| 18 | 95701-LDC8-E11 | BOLT TORQUE 6x16 | 1 | $2.82 USD | View product → | |
| 19 | 96001-06012-08G | BOLT FLANGE SH 6X12 (C) | 2 | $0.99 USD | View product → |
