F23 — RR BOX

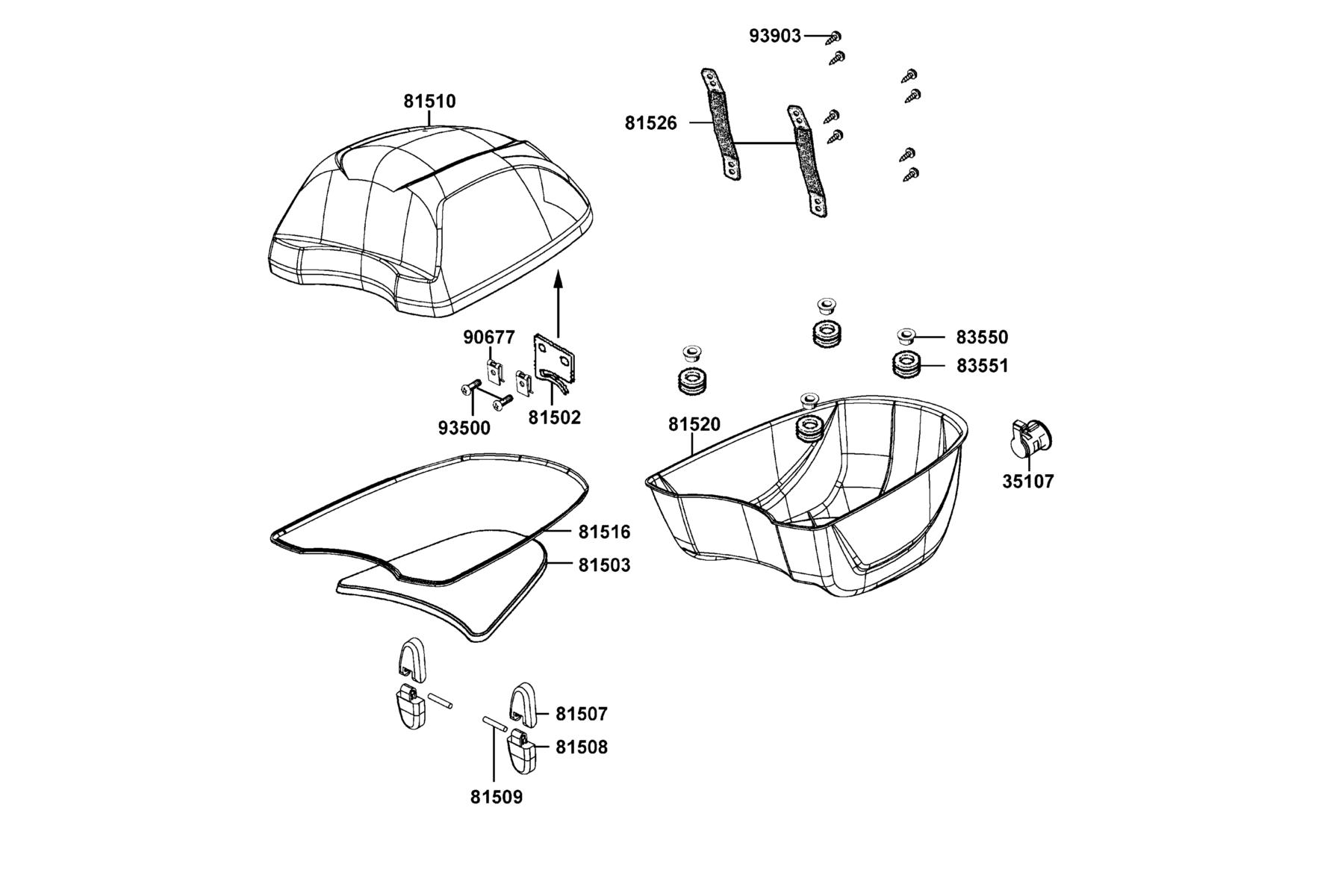

The RR BOX diagram contains 14 genuine OEM parts for the KYMCO LIKE 50(2013~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 35107-LFC2-E13 | PACKING RR BOX LOCK | 1 | $101.91 USD | View product → | |
| 2 | 81502-LGA5-C10 | BOTTOM UP THE HOOK | 1 | $9.78 USD | View product → | |
| 3 | 81503-LGR5-E10 | RUBBER RR WASHER | 1 | $32.94 USD | View product → | |
| 4 | 81507-LFD6-C50-N8P | CATCH COMP UP | 1 | $31.50 USD | View product → | |
| 5 | 81508-LFD6-C50-NJP | CATCH COMP DOWN | 1 | $31.50 USD | View product → | |
| 6 | 81509-LDD9-C50 | PIN LOCK | 1 | $4.89 USD | View product → | |
| 7 | 81510-LGR5-E10-R9P | RR BOX UP | 1 | $166.44 USD | View product → | |
| 8 | 81520-LGR5-E10-R9P | REAR BOX LOW | 1 | $169.68 USD | View product → | |
| 9 | 81526-LGR5-E10 | LINK STRIP | 1 | $6.09 USD | View product → | |
| 10 | 83550-KEC8-C00 | COLLAR | 1 | $1.86 USD | View product → | |
| 11 | 83551-KEC8-C10 | RUBBER | 1 | $3.96 USD | View product → | |
| 12 | 90677-GAR1-C01 | NUT CLIP 5MM | 1 | $1.65 USD | View product → | |
| 13 | 93500-05016-0H | SCREW PAN 5*16 | 1 | $2.19 USD | View product → | |
| 14 | 93903-25480 | SCREW TAPPING 5*20 **93903-25460 C.P.N. | 1 | $4.92 USD | View product → |
