F05 — Front Cover ● Front Fender

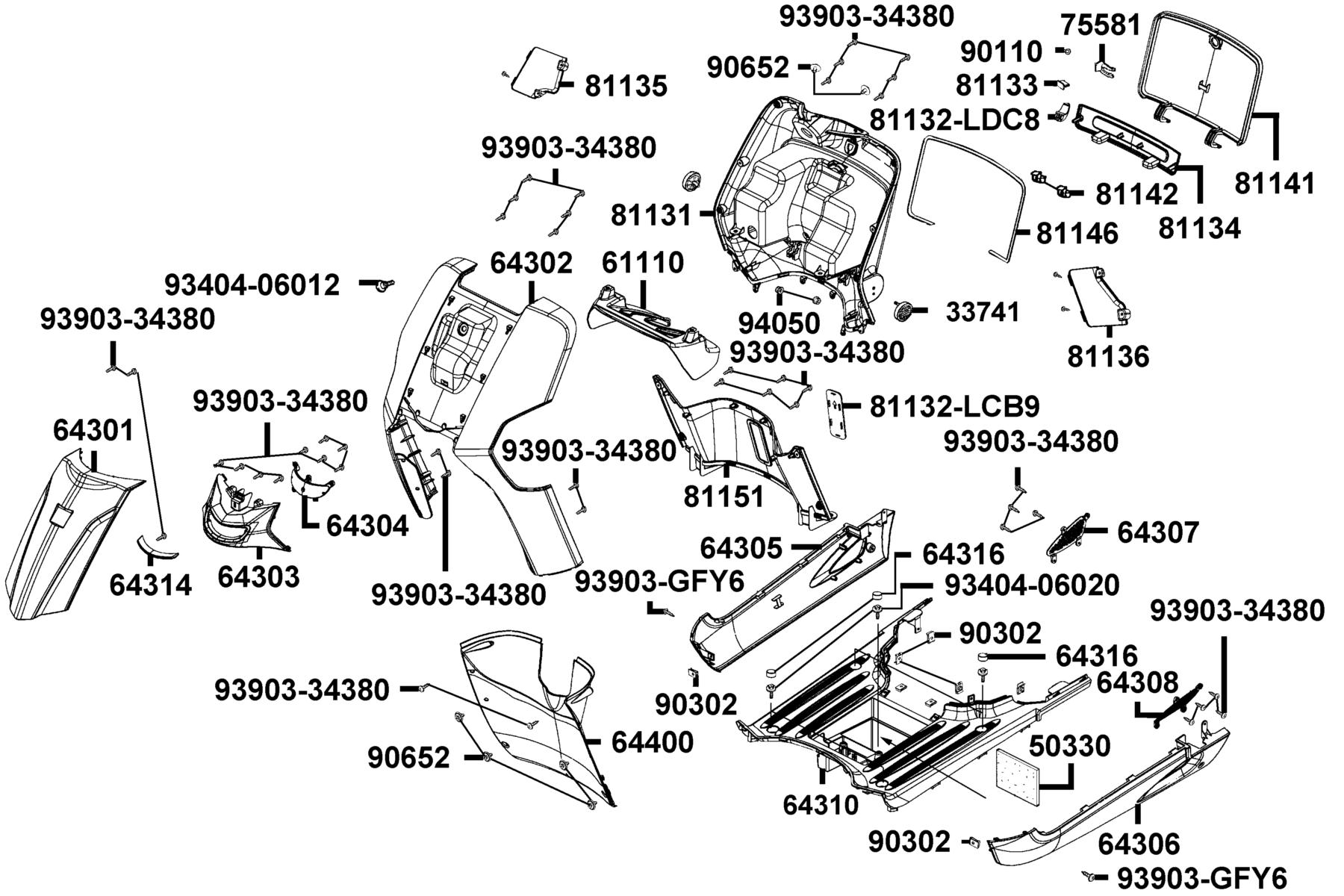

The Front Cover ● Front Fender diagram contains 35 genuine OEM parts for the KYMCO LIKE 50(2013~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33741-GFY6-C00 | REFLEX REFLECTOR | 1 | $32.85 USD | View product → | |
| 2 | 50330-KEBE-C00 | SEAL BATTER FRONT | 1 | $13.56 USD | View product → | |
| 3 | 61110-LGR5-E10-N1R | FENDER FR. INNER | 1 | $44.91 USD | View product → | |
| 4 | 64301-LGR5-E10-R9P | COVER FR | 1 | $113.55 USD | View product → | |
| 5 | 64302-LGR5-E10-R9P | MOLD FRONT | 1 | $165.63 USD | View product → | |
| 6 | 64303-LGR5-E10-R9P | FR COVER LOW | 1 | $64.95 USD | View product → | |
| 7 | 64304-LGR5-E10 | LID FR. COVER LOW | 1 | $5.16 USD | View product → | |
| 8 | 64305-LGR5-E10-R9P | SKIRT R SIDE | 1 | $112.26 USD | View product → | |
| 9 | 64306-LGR5-E10-R9P | SKIRT L SIDE | 1 | $112.26 USD | View product → | |
| 10 | 64307-LGR5-E10-N1R | LID R SIDE SKIRT | 1 | $19.92 USD | View product → | |
| 11 | 64308-LGR5-E10-N1R | LID L SIDE SKIRT | 1 | $19.92 USD | View product → | |
| 12 | 64310-LGR5-E10-N1R | PANEL FLOOR | 1 | $127.65 USD | View product → | |
| 13 | 64314-LGR5-E10-F1P | RIB FRONT COVER LOW | 1 | $49.59 USD | View product → | |
| 14 | 64316-LCB9-C10 | PLUG FLOOR | 4 | $5.28 USD | View product → | |
| 15 | 64400-LGR5-E10-N1R | UNDER COWL | 1 | $45.75 USD | View product → | |
| 16 | 75581-6C73-C00 | SET SPG LOCK KET(43*C) | 1 | $21.93 USD | View product → | |
| 17 | 81131-LGR5-E10-R9P | LEG SHIELD UP | 1 | $193.77 USD | View product → | |
| 18 | 81132-LCB9-C10-N1R | LID LEG SHIELD | 1 | $12.99 USD | View product → | |
| 19 | 81132-LDC8-E10-N1R | HOOK LUGGAGE | 1 | $6.09 USD | View product → | |
| 20 | 81133-KNBN-C00 | STOPPER LUGGAGE | 1 | $3.39 USD | View product → | |
| 21 | 81134-LGR5-E10-N1R | PLATE INNER BOX | 1 | $25.68 USD | View product → | |
| 22 | 81135-LGR5-E10 | LID R MAINT. FR. WINKER | 1 | $9.15 USD | View product → | |
| 23 | 81136-LGR5-E10 | LID L MAINT. FR. WINKER | 1 | $9.15 USD | View product → | |
| 24 | 81141-LGR5-E10-R9P | LEG SHIELD | 1 | $122.40 USD | View product → | |
| 25 | 81142-KFA6-C00 | STAY LID INNER BOX | 1 | $5.28 USD | View product → | |
| 26 | 81146-LGR5-E10 | "SEAL , LID INNER BOX" | 1 | $11.28 USD | View product → | |
| 27 | 81151-LGR5-E10-N1R | LEG SHIELD LOW | 1 | $55.14 USD | View product → | |
| 28 | 90110-GLW0-C00 | SCREW SPECIAL 6*14(CR) | 1 | $8.16 USD | View product → | |
| 29 | 90302-SDA4-C01 | NUT SPRING 4MM | 1 | $0.99 USD | View product → | |
| 30 | 90652-LCA4-C10 | CLIP MUDGUARD | 1 | $5.67 USD | View product → | |
| 31 | 93404-06012-07 | BOLT WASH 6*12 | 1 | $4.92 USD | View product → | |
| 32 | 93404-06020-07 | BOLT WASH 6*20 (K) | 4 | $9.06 USD | View product → | |
| 33 | 93903-34380 | SCREW TAPPING 4*12 (K) | 48 | $3.75 USD | View product → | |
| 34 | 93903-GFY6-C01 | SCREW TAPPING 4*14(K) | 1 | $4.92 USD | View product → | |
| 35 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → |
