E04 — Cylinder ● Piston ● Crankshaft

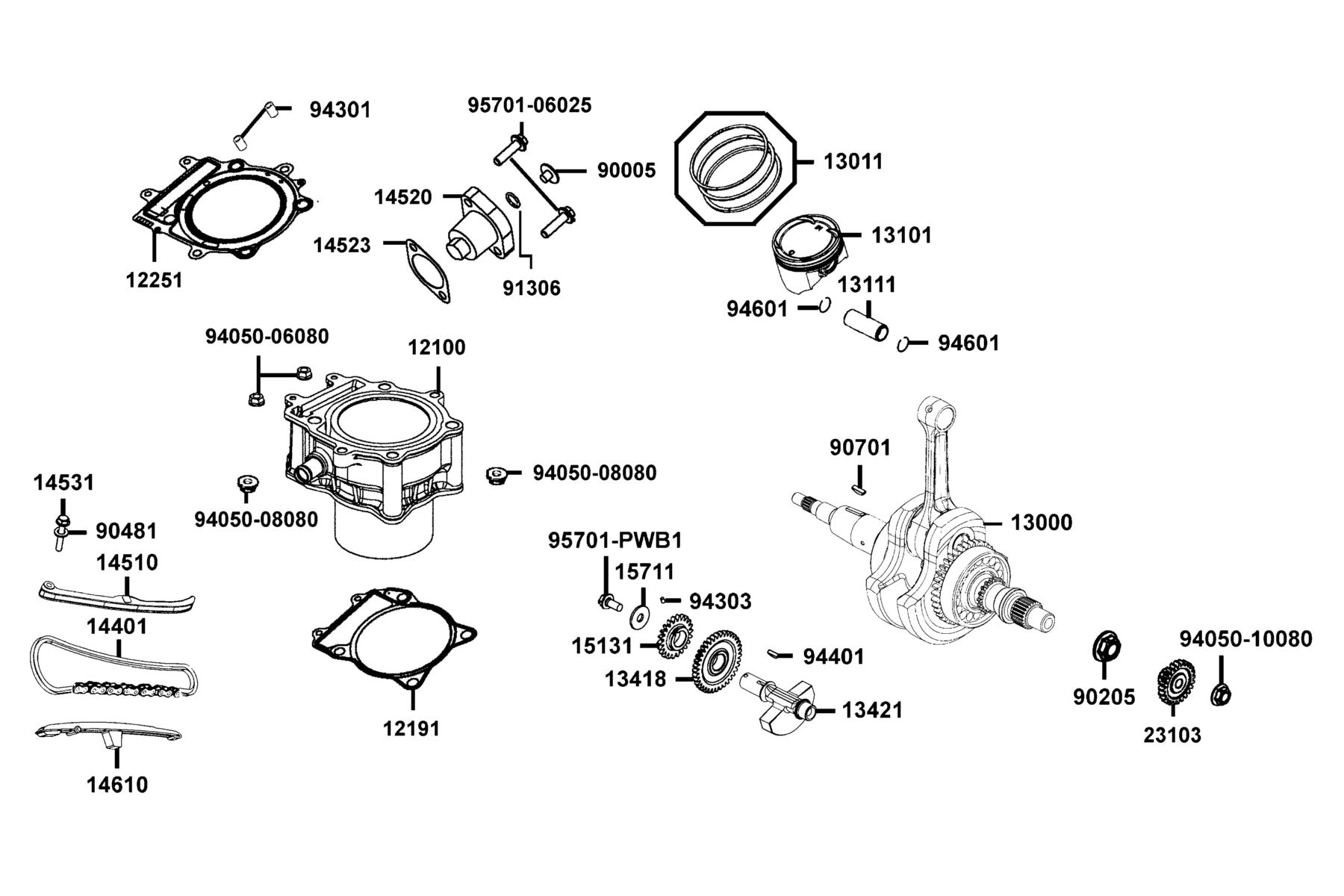

The Cylinder ● Piston ● Crankshaft diagram contains 32 genuine OEM parts for the KYMCO MAXXER 450i (2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 12100-PTA1-900 | CYLINDER COMP | 1 | $490.02 USD | View product → | |
| 2 | 12191-PTA1-900 | GASKET CYLINDER @A | 1 | $82.44 USD | View product → | |
| 3 | 12251-PTA1-900 | GASKET CYLINDER HEAD | 1 | $127.20 USD | View product → | |
| 4 | 13000-PWB1-800 | CRANK SHAFT COMP | 1 | $468.68 USD | View product → | |
| 5 | 13011-PTA1-90B | RING SET PISTON | 1 | $137.76 USD | View product → | |
| 6 | 13101-LGC7-E00 | PISTON | 1 | $121.02 USD | View product → | |
| 7 | 13111-PWB1-900 | PIN PISTON | 1 | $33.66 USD | View product → | |
| 8 | 13418-PWB1-900 | GEAR A??? BALANCER SHAFT | 1 | $124.68 USD | View product → | |
| 9 | 13421-PTA1-900 | SHAFT BALANCER | 1 | $173.28 USD | View product → | |
| 10 | 14401-PWB1-900 | CHAIN CAM | 1 | $146.58 USD | View product → | |
| 11 | 14510-PWB1-900 | TENSIONER CAM CHAIN | 1 | $98.10 USD | View product → | |
| 12 | 14520-GFY6-90C | LIFTER ASSY.. TENSIONER | 1 | $125.97 USD | View product → | |
| 13 | 14523-KED9-920 | GASKET TENSIONER LIFTER @A | 1 | $3.81 USD | View product → | |
| 14 | 14531-PWB1-900 | PIVOT TENSION GUIDE | 1 | $14.31 USD | View product → | |
| 15 | 14610-PTA1-900 | GUIDE COMP CAM CHAIN | 1 | $66.96 USD | View product → | |
| 16 | 15131-PWB1-900 | SPROCKET OIL PUMP DRIVE | 1 | $78.81 USD | View product → | |
| 17 | 15711-PWB1-900 | WASHER 10.2X30X2.5 | 1 | $12.09 USD | View product → | |
| 18 | 23103-PTA1-900 | GEAR PRIMARY DRIVE | 1 | $143.34 USD | View product → | |
| 19 | 90005-KED9-900 | BOLT SPECIAL 6*6 | 1 | $2.76 USD | View product → | |
| 20 | 90205-LDB5-E00 | NUT FLANGE 16 MM | 1 | $47.70 USD | View product → | |
| 21 | 90481-0E35-001 | WASHER 8MM | 1 | $1.65 USD | View product → | |
| 22 | 90701-LDB5-E00 | KEY WAY ACG | 1 | $7.53 USD | View product → | |
| 23 | 91306-1E05-691 | O-RING 1.5*9.5 | 1 | $4.92 USD | View product → | |
| 24 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → | |
| 25 | 94050-08080 | NUT FLANGE 8MM | 2 | $4.92 USD | View product → | |
| 26 | 94050-10080 | NUT FLANGE 10MM | 1 | $4.92 USD | View product → | |
| 27 | 94301-12200 | DOWEL PIN 12*20 | 2 | $6.39 USD | View product → | |
| 28 | 94303-04065 | DOWEL PIN 4X6.5 | 1 | $5.43 USD | View product → | |
| 29 | 94401-16150 | KEY WOODRUFF 16*15 | 1 | $5.31 USD | View product → | |
| 30 | 94601-PWB1-900 | CIRCLIP PISTON PIN 20MM | 2 | $5.31 USD | View product → | |
| 31 | 95701-06025-06 | BOLT FLANGE 6*25 | 2 | $1.95 USD | View product → | |
| 32 | 95701-PWB1-900 | BOLT FLANGE 10X20 | 1 | $13.41 USD | View product → |
