F16 — Control Arm Assy

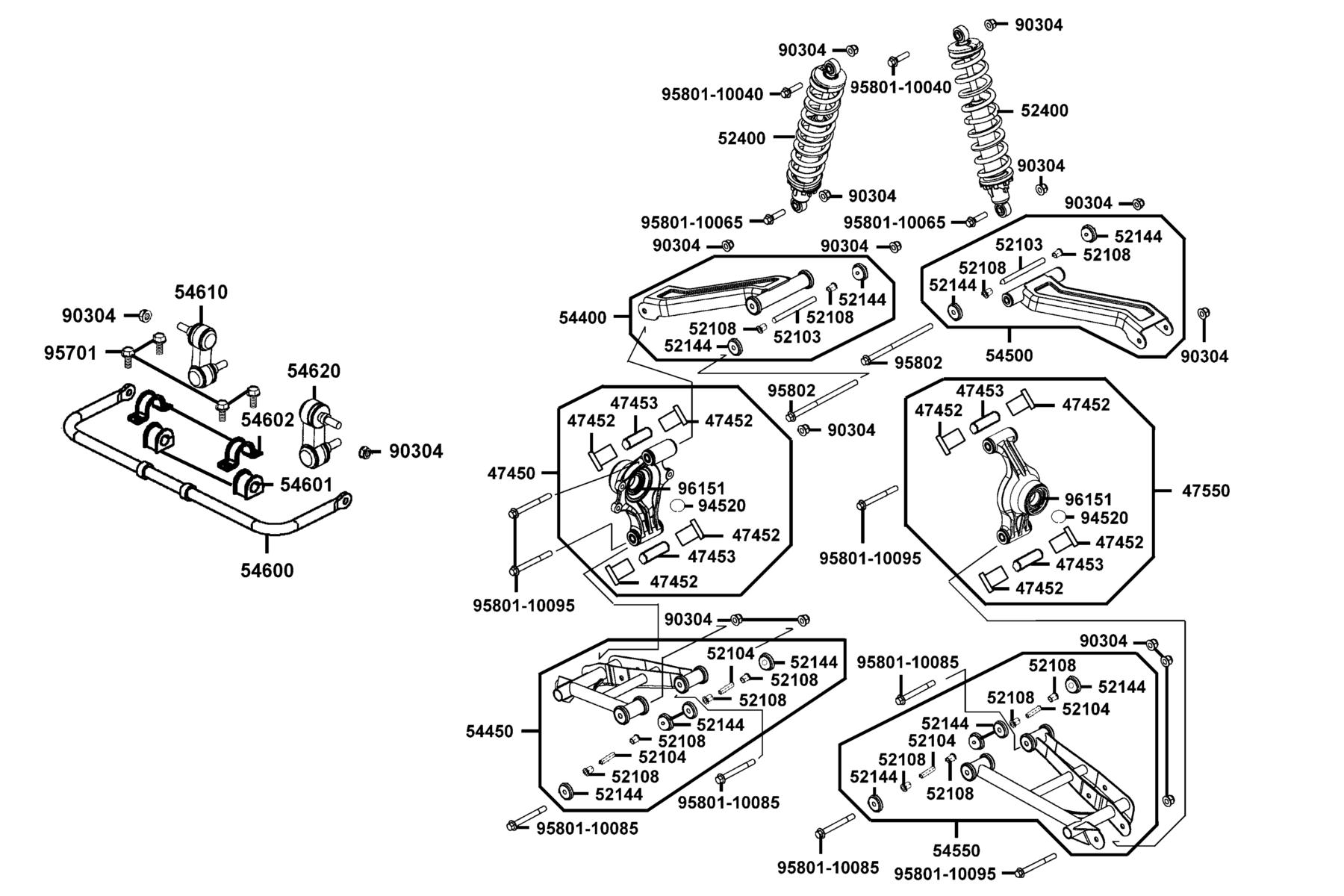

The Control Arm Assy diagram contains 27 genuine OEM parts for the KYMCO MAXXER 450i (2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 47450-PWB1-900 | KNUCKLE REAR ASSEMBLY RH | 1 | $301.50 USD | View product → | |
| 2 | 47452-PWB1-900 | BUSHING RR SUSPENSION | 8 | $36.66 USD | View product → | |
| 3 | 47453-PWB1-900 | COLLAR SUSPENSION | 4 | $50.07 USD | View product → | |
| 4 | 47550-PWB1-900 | KNUCKLE REAR ASSEMBLY LH | 1 | $301.50 USD | View product → | |
| 5 | 52103-PWB1-900 | SLEEVE SUSPENSION | 2 | $38.85 USD | View product → | |
| 6 | 52104-PWB1-900 | SLEEVE SUSPENSION | 4 | $22.98 USD | View product → | |
| 7 | 52108-PWB1-900 | BUSHING SUSPENSION | 12 | $11.31 USD | View product → | |
| 8 | 52144-PWB1-900 | SEAL SUSPENSION | 10 | $12.09 USD | View product → | |
| 9 | 52400-LGC7-E00-NMS | CUSHION ASSY RR | 2 | $396.00 USD | View product → | |
| 10 | 54400-PRB1-900-MBS | CONTROL ARM RH UPPER ASSY | 1 | $114.54 USD | View product → | |
| 11 | 54450-LGN5-E00-MBS | A-ARM, RH/LH LWR ASSY (GRAY) | 1 | $208.53 USD | View product → | |
| 12 | 54500-PRB1-900-MBS | CONTROL ARM LH UPPER ASSY | 1 | $104.40 USD | View product → | |
| 13 | 54550-LGN5-E00-MBS | A-ARM, RH/LH LWR ASSY (GRAY) | 1 | $208.53 USD | View product → | |
| 14 | 54600-LGN5-E00 | BAR. STABILIZER | 2 | $273.03 USD | View product → | |
| 15 | 54601-LFE9-E00 | BUSH STABILIZER | 2 | $32.76 USD | View product → | |
| 16 | 54602-LFE9-E00 | HOLDER STABILIZER | 2 | $27.39 USD | View product → | |
| 17 | 54610-LFE9-E00 | JOINT STABILIZER RH | 1 | $117.00 USD | View product → | |
| 18 | 54620-LFE9-E00 | STABILIZER JOINT LH | 1 | $117.00 USD | View product → | |
| 19 | 90304-GLW0-90A | NUT U FLANGE 10MM | 16 | $9.39 USD | View product → | |
| 20 | 94520-55000 | CIR CLIP IN 55 | 2 | $13.95 USD | View product → | |
| 21 | 95701-08016-06 | BOLT FLANGE 8*16 | 4 | $4.53 USD | View product → | |
| 22 | 95801-10040-06 | BOLT FLANGE 10X40 | 2 | $21.60 USD | View product → | |
| 23 | 95801-10065-06 | BOLT FLANGE 10*65 | 2 | $7.02 USD | View product → | |
| 24 | 95801-10085-06 | BOLT FLANGE 10*85 | 4 | $19.59 USD | View product → | |
| 25 | 95801-10095-06 | BOLT FLANGE 10*95 | 4 | $13.17 USD | View product → | |
| 26 | 95802-PWB1-900 | SCREW CAP-HFH M10X1.25X180 | 2 | $43.56 USD | View product → | |
| 27 | 96151-PWB1-900 | BEARING WHEEL | 2 | $160.56 USD | View product → |
