F25 — Emblem ● Stripe

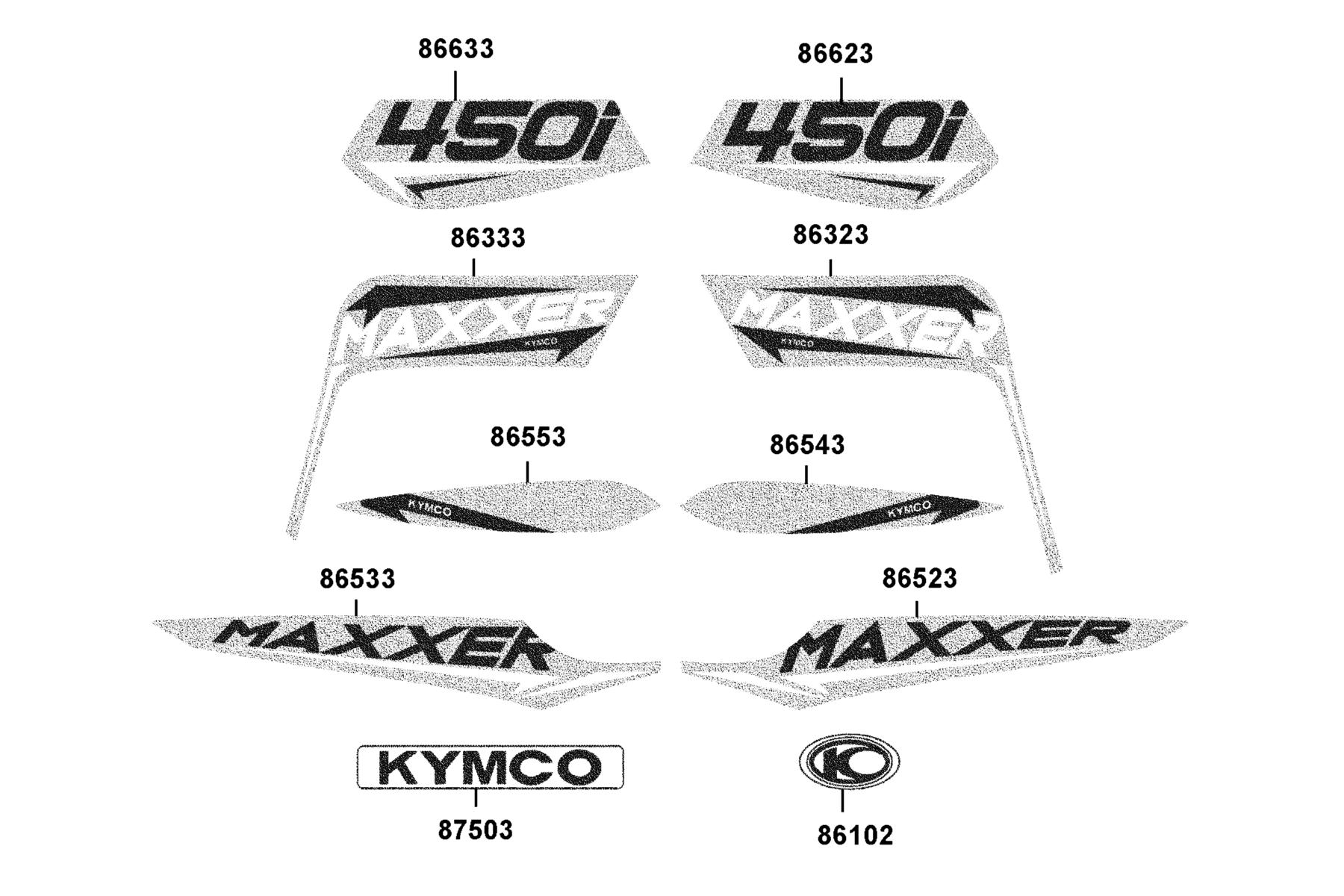

The Emblem ● Stripe diagram contains 10 genuine OEM parts for the KYMCO MAXXER 450i (2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 86102-LDB5-900-T02 | EMB K-LOGO 28.5mm-PP | 1 | $33.18 USD | View product → | |
| 2 | 86323-LGC7-M00-T01 | STRIPE R SIDE COVER | 1 | $106.53 USD | View product → | |
| 3 | 86333-LGC7-M00-T01 | STRIPE L SIDE COVER | 2 | $92.28 USD | View product → | |
| 4 | 86523-LGC7-M00-T01 | STRIPE R FENDER FR | 1 | $53.49 USD | View product → | |
| 5 | 86533-LGC7-M00-T01 | STRIPE L FENDER FR | 1 | $53.49 USD | View product → | |
| 6 | 86543-LGC7-M00-T01 | STRIPE B R FENDER FR | 1 | $53.49 USD | View product → | |
| 7 | 86553-LGC7-M00-T01 | STRIPE B L FENDER FR | 1 | $53.49 USD | View product → | |
| 8 | 86623-LGC7-M00-T01 | STRIPE R RR FENDER | 1 | $53.49 USD | View product → | |
| 9 | 86633-LGC7-M00-T01 | STRIPE L RR FENDER | 1 | $53.49 USD | View product → | |
| 10 | 87503-LGN5-900-T03 | STRIPE KYMCO-125mm (PP) | 1 | $25.65 USD | View product → |
