F01 — Head Light

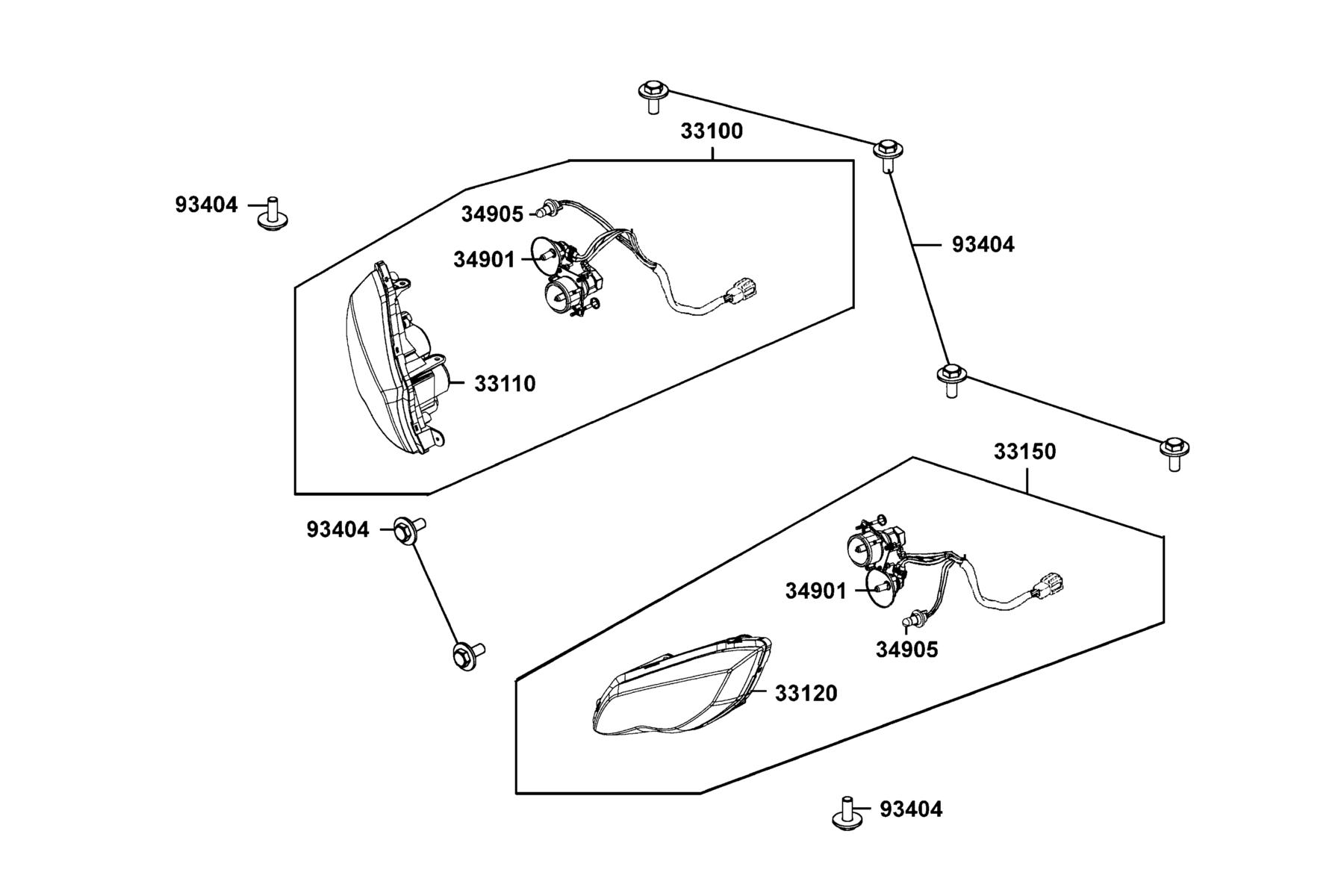

The Head Light diagram contains 7 genuine OEM parts for the KYMCO MAXXER 450i (2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33100-LGN5-900 | LIGHT ASSY R HEAD | 1 | $545.82 USD | View product → | |
| 2 | 33110-LGN5-E00 | UNIT HEAD LIGHT R | 1 | $415.72 USD | View product → | |
| 3 | 33120-LGN5-E00 | UNIT HEAD LIGHT L | 1 | $415.72 USD | View product → | |
| 4 | 33150-LGN5-900 | LIGHT ASSY L HEAD | 1 | $545.82 USD | View product → | |
| 5 | 34901-KGB5-M30 | BULB HEAD LIGHT | 2 | $64.80 USD | View product → | |
| 6 | 34905-LCA5-900 | BULB POSITION 12V5W | 2 | $32.10 USD | View product → | |
| 7 | 93404-06016-06 | BOLT WASHER 6*16 | 8 | $7.89 USD | View product → |
