F12 — Fender Rear ● Mudguard Floor

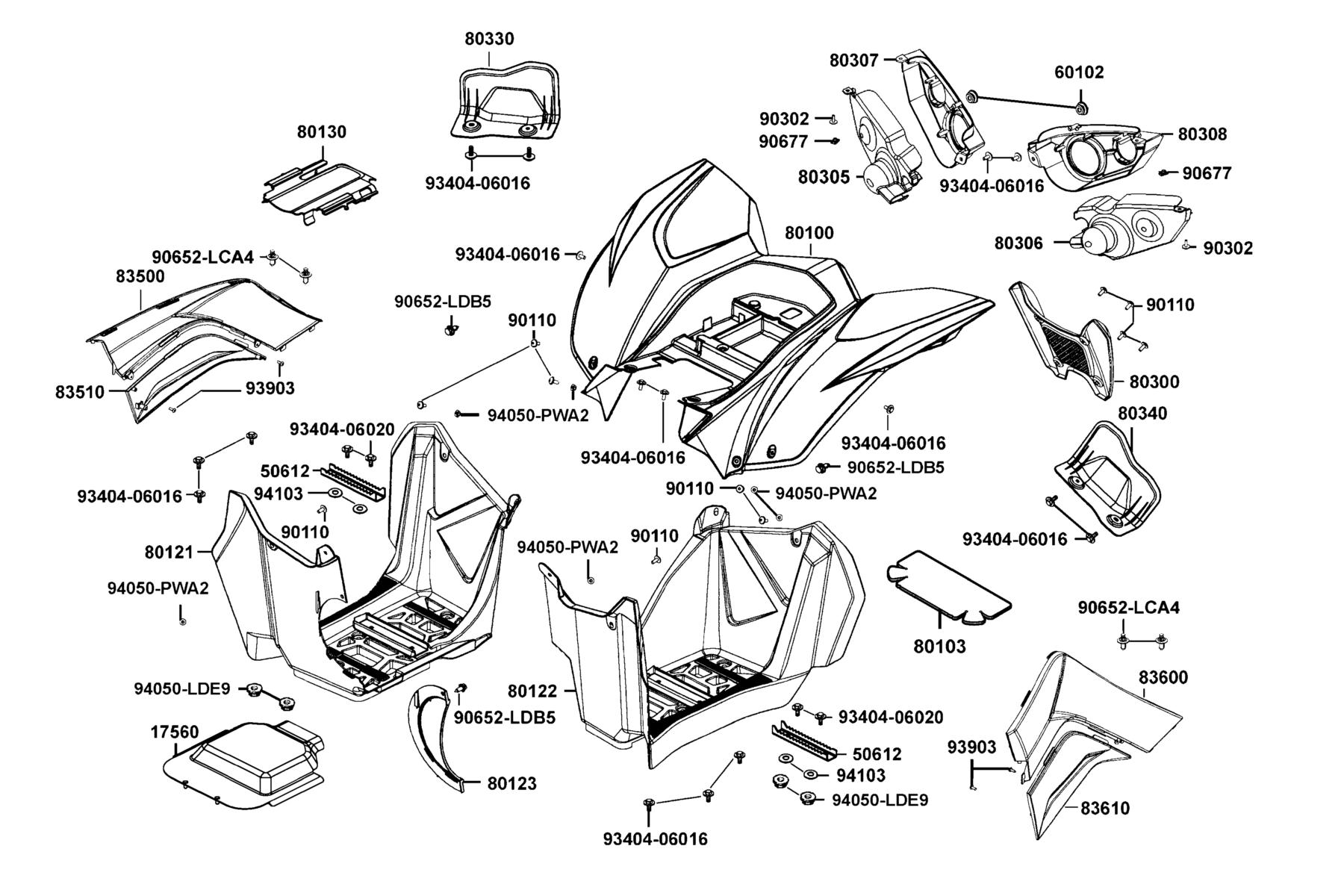

The Fender Rear ● Mudguard Floor diagram contains 27 genuine OEM parts for the KYMCO MAXXER 450i (2021). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17560-LGC7-E00-N1R | SHIELD HEAT (Black) | 1 | $94.11 USD | View product → | |
| 2 | 50612-PWB1-900 | FOOTPEG | 2 | $32.10 USD | View product → | |
| 3 | 60102-PWB1-900 | GROMMET PANEL-SIDE | 2 | $4.89 USD | View product → | |
| 4 | 80100-LGN5-600-X2P | FENDER.REAR | 1 | $485.91 USD | View product → | |
| 5 | 80103-LGC7-E00 | SHIELD LH | 1 | $23.58 USD | View product → | |
| 6 | 80121-LGN5-E01-N1R | MUDGUARD R FLOOR (Black) | 1 | $114.84 USD | View product → | |
| 7 | 80122-LGN5-E01-N1R | MUDGUARD???L FLOOR (Black) | 1 | $114.84 USD | View product → | |
| 8 | 80123-LGN5-E01-N1R | MUDGUARD FR R FLOOR (Black) | 1 | $28.95 USD | View product → | |
| 9 | 80130-PWB1-E00-N1R | SHIELD REAR GEARCASE (Black) | 1 | $41.07 USD | View product → | |
| 10 | 80300-LGN5-E01-N1R | COVER GEARBOX (Black) | 1 | $39.69 USD | View product → | |
| 11 | 80305-LGN5-900-N1R | GUARD COVER R TAIL LIGHT (Black) | 1 | $26.22 USD | View product → | |
| 12 | 80306-LGN5-900-N1R | GUARD COVER L TAIL LIGHT (Black) | 1 | $26.22 USD | View product → | |
| 13 | 80330-LGN5-E01-N1R | GUARD R RR BOOT (Black) | 1 | $35.34 USD | View product → | |
| 14 | 80340-LGN5-E01-N1R | GUARD L RR BOOT (Black) | 1 | $35.34 USD | View product → | |
| 15 | 83500-LGN5-600-X2P | COVER A R SIDE | 1 | $118.32 USD | View product → | |
| 16 | 83600-LGN5-600-X2P | COVER A L SIDE | 1 | $175.05 USD | View product → | |
| 17 | 90110-PWA2-900 | BOLT SPECIAL 6*16 | 12 | $4.29 USD | View product → | |
| 18 | 90302-PWA1-900 | BOLT-WASH 5*16 | 2 | $4.92 USD | View product → | |
| 19 | 90652-LCA4-E00 | CLIP MUDGUARD | 4 | $4.92 USD | View product → | |
| 20 | 90652-LDB5-900 | CLIP MUDGUARD | 1 | $5.31 USD | View product → | |
| 21 | 90677-GAR1-004 | NUT CLIP 5MM | 2 | $3.00 USD | View product → | |
| 22 | 93404-06016-06 | BOLT WASHER 6*16 | 16 | $7.89 USD | View product → | |
| 23 | 93404-06020-06 | BOLT WASHER 6X20 | 4 | $3.00 USD | View product → | |
| 24 | 93903-34360 | SCREW TAPPING 4X12 | 6 | $4.29 USD | View product → | |
| 25 | 94050-LDE9-E00 | NUT LOCK | 4 | $2.61 USD | View product → | |
| 26 | 94050-PWA2-900 | NUT LOCK | 6 | $4.92 USD | View product → | |
| 27 | 94103-06800 | WASHER PLAIN 6MM | 4 | $4.92 USD | View product → |
