F03 — Tube Handlebar

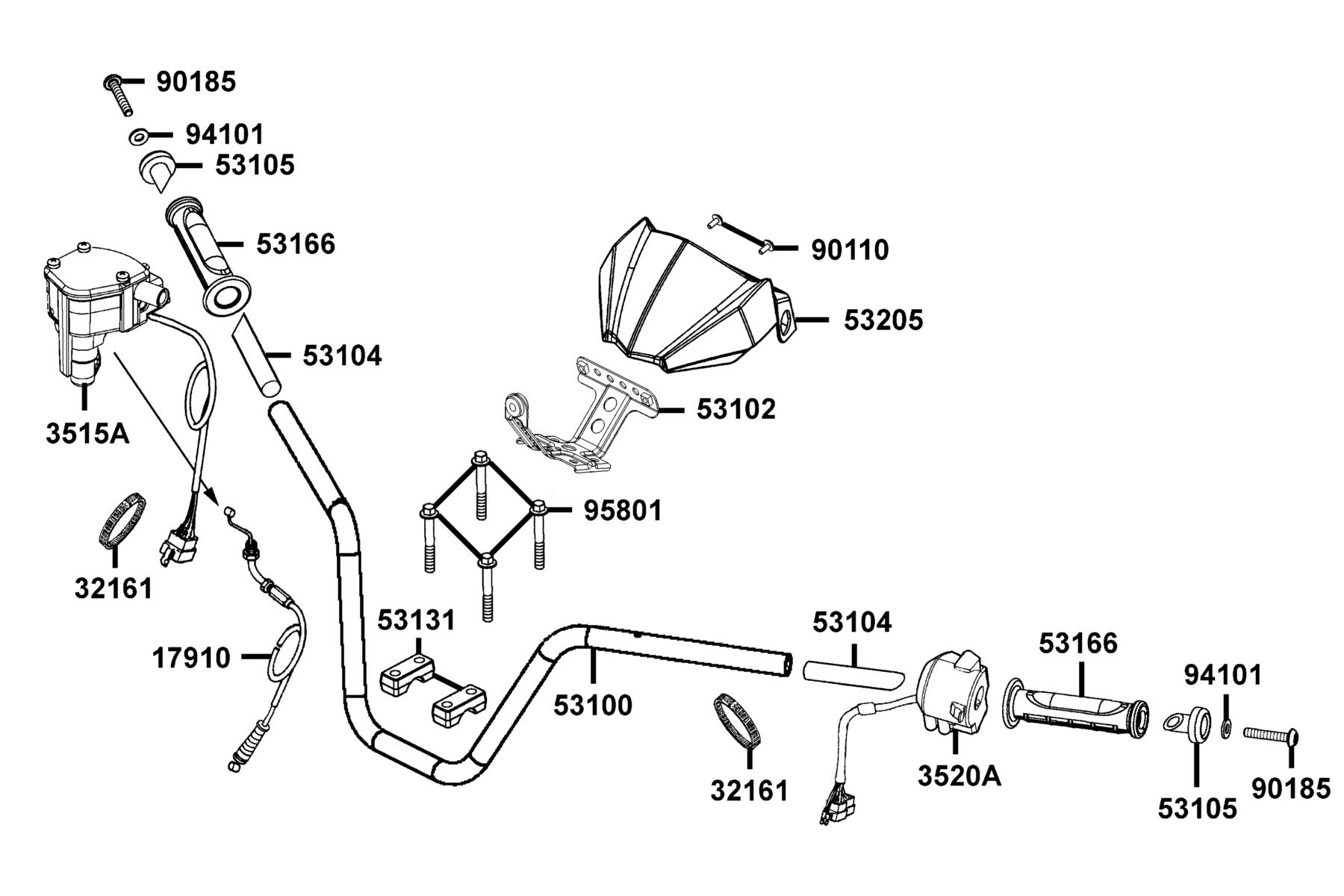

The Tube Handlebar diagram contains 15 genuine OEM parts for the KYMCO MXU 450i LE (2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17910-LFA5-E00 | CABLE COMP THROT | 1 | $61.59 USD | View product → | |
| 2 | 32161-4D04-001 | BAND BI WIRE | 2 | $4.53 USD | View product → | |
| 3 | 3515A-LFE9-900 | SW & THROT ASSY RH HANDLE | 1 | $263.58 USD | View product → | |
| 4 | 3520A-PWB1-900 | SW ASSY HANDLE COMP | 1 | $159.66 USD | View product → | |
| 5 | 53100-LFA5-900 | TUBE HANDLEBAR | 1 | $112.74 USD | View product → | |
| 6 | 53102-LGC3-E00 | STAY HANDLE COVER | 1 | $52.71 USD | View product → | |
| 7 | 53104-PWB1-900 | PLUG??? HANDLEBAR | 2 | $31.17 USD | View product → | |
| 8 | 53105-PWB1-900 | END HANDLEBAR-BLACK | 2 | $7.17 USD | View product → | |
| 9 | 53131-PWB1-900 | CAP STEERING ADJUSTER | 2 | $47.34 USD | View product → | |
| 10 | 53166-PWB1-900 | GRIP???HANDLEBAR | 2 | $17.82 USD | View product → | |
| 11 | 53205-LKK7-6V0-X6P | COVER HANDLE | 1 | $62.85 USD | View product → | |
| 12 | 90110-PWA2-900 | BOLT SPECIAL 6*16 | 2 | $4.29 USD | View product → | |
| 13 | 90185-PWB1-900 | SOCKET BOLT 8x45 | 2 | $17.82 USD | View product → | |
| 14 | 94101-08600 | WASH PLAIN 8MM | 2 | $2.25 USD | View product → | |
| 15 | 95801-08055-06 | BOLT FLANGE 8*55 | 1 | $6.84 USD | View product → |
