F19 — Harness Wire

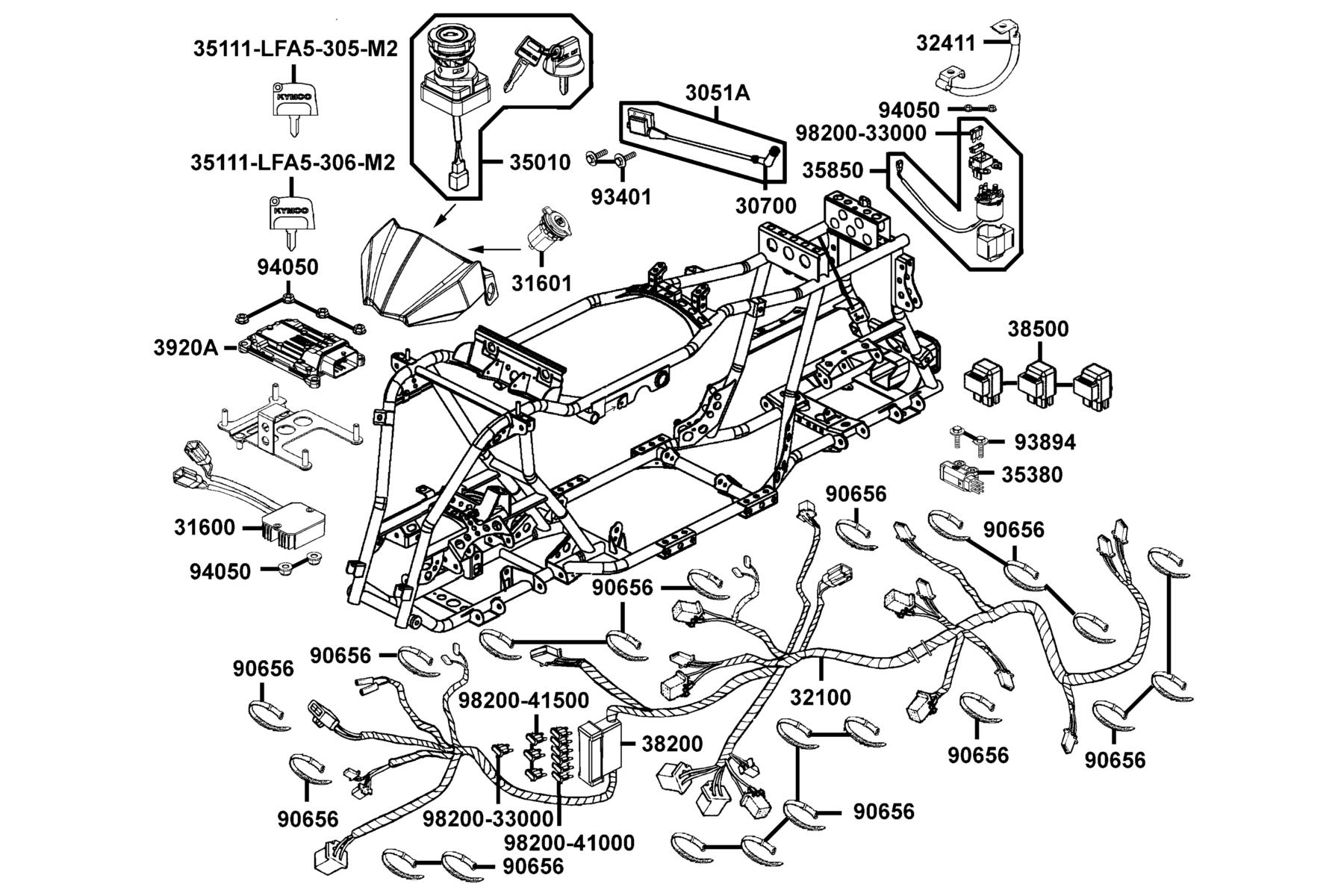

The Harness Wire diagram contains 20 genuine OEM parts for the KYMCO MXU 450i LE (2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 3051A-PRB8-900 | COIL ASS'Y IGNITION | 1 | $122.55 USD | View product → | |
| 2 | 30700-PTA1-800 | CAP ASSY NOISE SUPPRESOR | 1 | $68.25 USD | View product → | |
| 3 | 31600-PRB8-900 | REG RECT COMP | 1 | $322.77 USD | View product → | |
| 4 | 31601-LDB5-E00 | SOCKET COMP DC 12V | 1 | $71.67 USD | View product → | |
| 5 | 32100-AEB8-M0D | HARNESS WIRE | 1 | $678.84 USD | View product → | |
| 6 | 32411-LGN5-E00 | CABLE BAT | 1 | $36.51 USD | View product → | |
| 7 | 35010-LFA5-900 | KEY SET | 1 | $100.95 USD | View product → | |
| 8 | 35111-LFA5-305-M2 | KEY COMP (R TANGENT PLANE/TJ) | 1 | $49.02 USD | View product → | |
| 9 | 35111-LFA5-306-M2 | KEY COMP (L TANGENT PLANE/TJ) | 1 | $49.02 USD | View product → | |
| 10 | 35380-LDF2-900 | SENSOR ANGLE DETECT | 1 | $168.24 USD | View product → | |
| 11 | 35850-LBA2-E00 | SET START MAG | 1 | $112.17 USD | View product → | |
| 12 | 38500-LGL3-90A | RELAY ASSY LIGHT/D402(12V 20A) | 2 | $93.66 USD | View product → | |
| 13 | 3920A-AEC7-E00 | MODULE ASS'Y ECU | 1 | $594.24 USD | View product → | |
| 14 | 90656-KCBC-900 | BAND OIL HANDLE 8X146 | 21 | $3.93 USD | View product → | |
| 15 | 93401-04025-06 | BOLT WASHER 4*25 | 1 | $13.95 USD | View product → | |
| 16 | 93894-04022-06 | SCREW WASHER 4X22 | 1 | $11.46 USD | View product → | |
| 17 | 94050-06080 | NUT FLANGE 6MM | 8 | $2.31 USD | View product → | |
| 18 | 98200-33000 | BLADE FUSE 30A | 2 | $4.92 USD | View product → | |
| 19 | 98200-41000 | FUSE 10A | 6 | $14.31 USD | View product → | |
| 20 | 98200-41500 | FUSE 15A | 3 | $14.31 USD | View product → |
