F21 — Cooler Oil

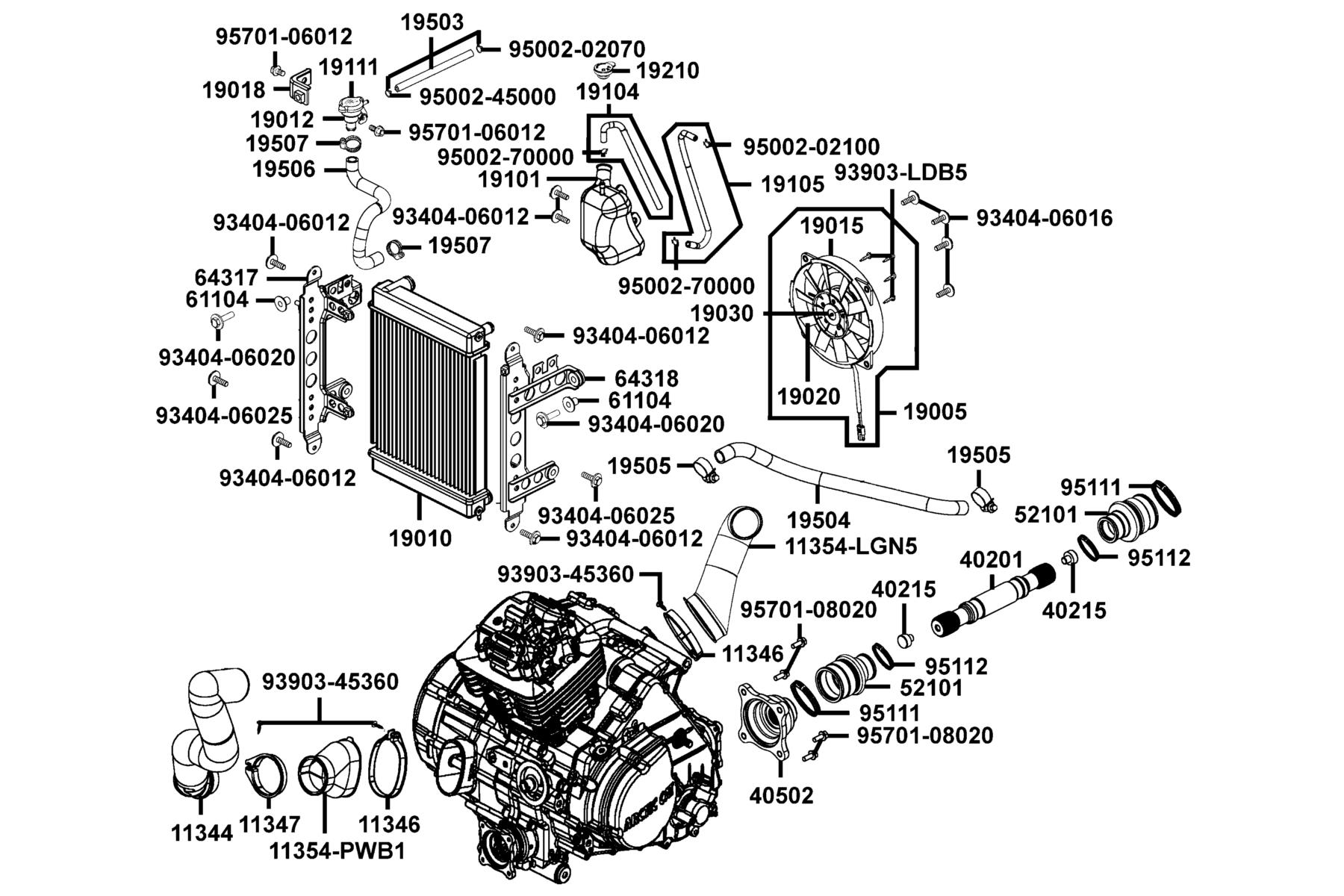

The Cooler Oil diagram contains 42 genuine OEM parts for the KYMCO MXU 450i LE (2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11344-PWB1-900 | DUCT BELT-AIR IN | 1 | $48.54 USD | View product → | |
| 2 | 11346-PWB1-900 | CLAMP PLASTC-SCREW-OVAL | 2 | $14.31 USD | View product → | |
| 3 | 11347-PWB1-900 | CLAMP PLASTC-SCREW-OVAL | 1 | $12.09 USD | View product → | |
| 4 | 11354-LGN5-E00 | BOOT AIR-OUT | 1 | $121.56 USD | View product → | |
| 5 | 11354-PWB1-900 | BOOT AIR-IN | 1 | $37.98 USD | View product → | |
| 6 | 19005-LDB5-E00 | SHROUD ASSY | 1 | $287.13 USD | View product → | |
| 7 | 19010-LKK7-900 | RADIATOR COMP | 1 | $385.35 USD | View product → | |
| 8 | 19012-KHD8-900 | UNIT RADIATOR | 1 | $54.18 USD | View product → | |
| 9 | 19015-LBA2-E00 | SHROUD COMP | 1 | $85.89 USD | View product → | |
| 10 | 19018-PTA1-900 | STAY.UNIT RADIATOR | 1 | $18.24 USD | View product → | |
| 11 | 19020-LBA2-E00 | FAN COOLING | 1 | $59.70 USD | View product → | |
| 12 | 19030-LDB5-E00 | MOTOR ASSY FAN | 1 | $391.89 USD | View product → | |
| 13 | 19101-PTA1-900 | TANK RESERVE | 1 | $66.96 USD | View product → | |
| 14 | 19105-PTA1-E00 | HOSE ASSY.WATER | 1 | $41.82 USD | View product → | |
| 15 | 19111-GBE2-004 | CAP COMP | 1 | $47.31 USD | View product → | |
| 16 | 19210-KKC4-900 | CAP RESERVE TANK | 1 | $9.39 USD | View product → | |
| 17 | 19503-PTA1-E00 | HOSE ASSY.WATER | 1 | $24.66 USD | View product → | |
| 18 | 19504-LKK7-E00 | HOSE WATER | 1 | $123.63 USD | View product → | |
| 19 | 19505-LBA2-E00 | CLAMP WATER HOSE | 2 | $15.06 USD | View product → | |
| 20 | 19506-LKK7-E00 | HOSE WATER | 1 | $55.29 USD | View product → | |
| 21 | 19507-LBA2-E00 | CLAMP D 27.5 | 2 | $11.31 USD | View product → | |
| 22 | 40201-PWB1-900 | SHAFT PROPELLER-REAR | 1 | $122.34 USD | View product → | |
| 23 | 40215-PWB1-900 | BUMPER DRIVESHAFT | 2 | $5.31 USD | View product → | |
| 24 | 40502-PRB2-900 | FLANGE OUTPUT | 1 | $94.86 USD | View product → | |
| 25 | 52101-PWB1-900 | BOOT COUPLER | 2 | $30.12 USD | View product → | |
| 26 | 61104-357-0010 | COLLAR FR FENDER | 2 | $11.19 USD | View product → | |
| 27 | 64317-LKK7-900 | BRKT R RADIATOR | 1 | $109.47 USD | View product → | |
| 28 | 64318-LKK7-900 | BRKT L RADIATOR | 1 | $105.78 USD | View product → | |
| 29 | 93404-06012-06 | BOLT WASHER 6X12 | 6 | $2.61 USD | View product → | |
| 30 | 93404-06016-06 | BOLT WASHER 6*16 | 4 | $7.89 USD | View product → | |
| 31 | 93404-06020-06 | BOLT WASHER 6X20 | 2 | $3.00 USD | View product → | |
| 32 | 93404-06025-06 | BOLT WASHER 6*25 | 2 | $4.17 USD | View product → | |
| 33 | 93903-45360 | SCREW TAPPING 5*16 | 3 | $1.65 USD | View product → | |
| 34 | 93903-LDB5-E00 | SCREW TAPPING 4*14 | 4 | $12.84 USD | View product → | |
| 35 | 95002-02070 | CLIP B7 TUBE | 1 | $1.86 USD | View product → | |
| 36 | 95002-02100 | CLIP B15 TUBE | 1 | $4.92 USD | View product → | |
| 37 | 95002-45000 | CLIP C8 TUBE | 1 | $4.53 USD | View product → | |
| 38 | 95002-70000 | CLIP C11 TUBE | 2 | $4.92 USD | View product → | |
| 39 | 95111-PWB1-900 | CLAMP BOOT | 2 | $18.24 USD | View product → | |
| 40 | 95112-PWB1-900 | CLAMP 30mm-BOOT | 2 | $16.68 USD | View product → | |
| 41 | 95701-06012-06 | BOLT FLANGE 6X12 | 2 | $1.86 USD | View product → | |
| 42 | 95701-08020-06 | BOLT FLANGE 8*20 | 4 | $3.78 USD | View product → |
