F05 — Fender Front

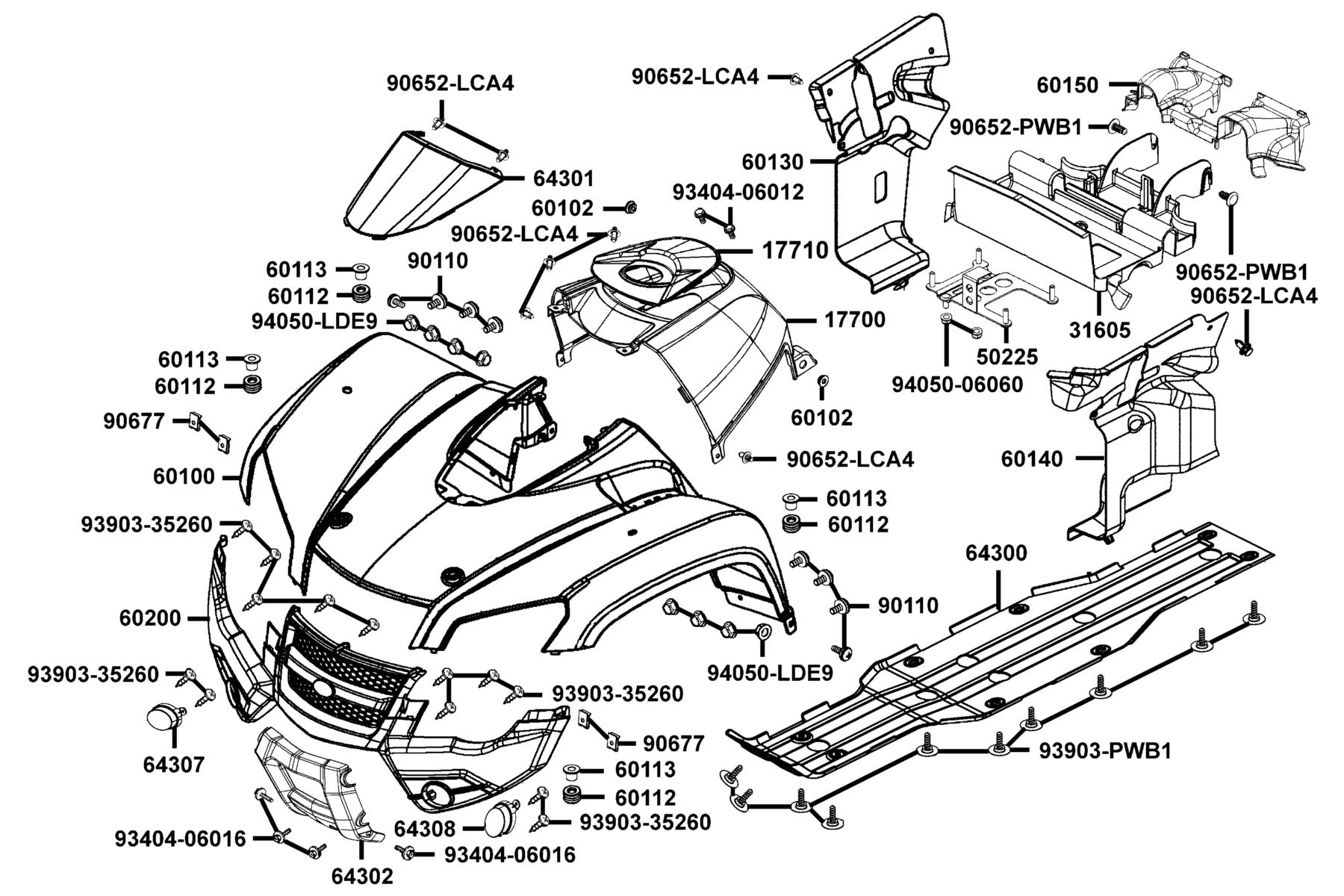

The Fender Front diagram contains 26 genuine OEM parts for the KYMCO MXU 450i LE (2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17700-LKK7-600-X6P | COVER TANK | 1 | $166.62 USD | View product → | |
| 2 | 17710-LKK7-600-X6P | CAP TANK COVER | 1 | $96.96 USD | View product → | |
| 3 | 31605-PRB2-900-N1R | TRAY ELECTRICAL (Black) | 1 | $66.03 USD | View product → | |
| 4 | 50225-PRB2-900 | STAY ECU | 1 | $56.16 USD | View product → | |
| 5 | 60100-LFA5-600-X6P | FENDER FRONT | 0 | $453.69 USD | View product → | |
| 6 | 60102-PWB1-900 | GROMMET PANEL-SIDE | 2 | $4.89 USD | View product → | |
| 7 | 60112-PWB1-900 | GROMMET | 4 | $4.29 USD | View product → | |
| 8 | 60113-PWB1-900 | SPACER STELL | 4 | $12.48 USD | View product → | |
| 9 | 60130-LGC7-E00-N1R | PANEL.SPLASH RIGHT (Black) | 1 | $46.74 USD | View product → | |
| 10 | 60140-LGC7-E00-N1R | PANEL SPLASH LEFT (Black) | 1 | $43.29 USD | View product → | |
| 11 | 60150-LFA5-E01-N1R | COVER WATERPROOF (Black) | 1 | $42.87 USD | View product → | |
| 12 | 60200-LFA5-E00-N1R | MUDGUARD FRONT (Black) | 1 | $94.68 USD | View product → | |
| 13 | 64300-PWB1-910-N1R | PLATE SKID (Black) | 1 | $140.64 USD | View product → | |
| 14 | 64302-LFA5-E01-N1R | BUMPER FRONT (Black) | 1 | $55.14 USD | View product → | |
| 15 | 64307-LFA5-900-N1R | CAP R FR MUDGUARD (Black) | 1 | $11.94 USD | View product → | |
| 16 | 64308-LFA5-900-N1R | CAP L FR MUDGUARD (Black) | 1 | $11.94 USD | View product → | |
| 17 | 90110-PWB1-900 | SCREW SPECIAL 6X20 | 8 | $7.17 USD | View product → | |
| 18 | 90652-LCA4-E00 | CLIP MUDGUARD | 8 | $4.92 USD | View product → | |
| 19 | 90652-PWB1-900 | X'MAS TREE CLIP | 2 | $5.31 USD | View product → | |
| 20 | 90677-GAR1-004 | NUT CLIP 5MM | 4 | $3.00 USD | View product → | |
| 21 | 93404-06012-06 | BOLT WASHER 6X12 | 2 | $2.61 USD | View product → | |
| 22 | 93404-06016-06 | BOLT WASHER 6*16 | 4 | $7.89 USD | View product → | |
| 23 | 93903-35260 | SCREW TAPPING 5*12 | 13 | $4.92 USD | View product → | |
| 24 | 93903-PWB1-900 | SCREW BODY-SELF TAP #12x3/4 A | 10 | $9.99 USD | View product → | |
| 25 | 94050-06060 | NUT FLANGE 6MM | 2 | $4.92 USD | View product → | |
| 26 | 94050-LDE9-E00 | NUT LOCK | 8 | $2.61 USD | View product → |
