F18 — Light Tail

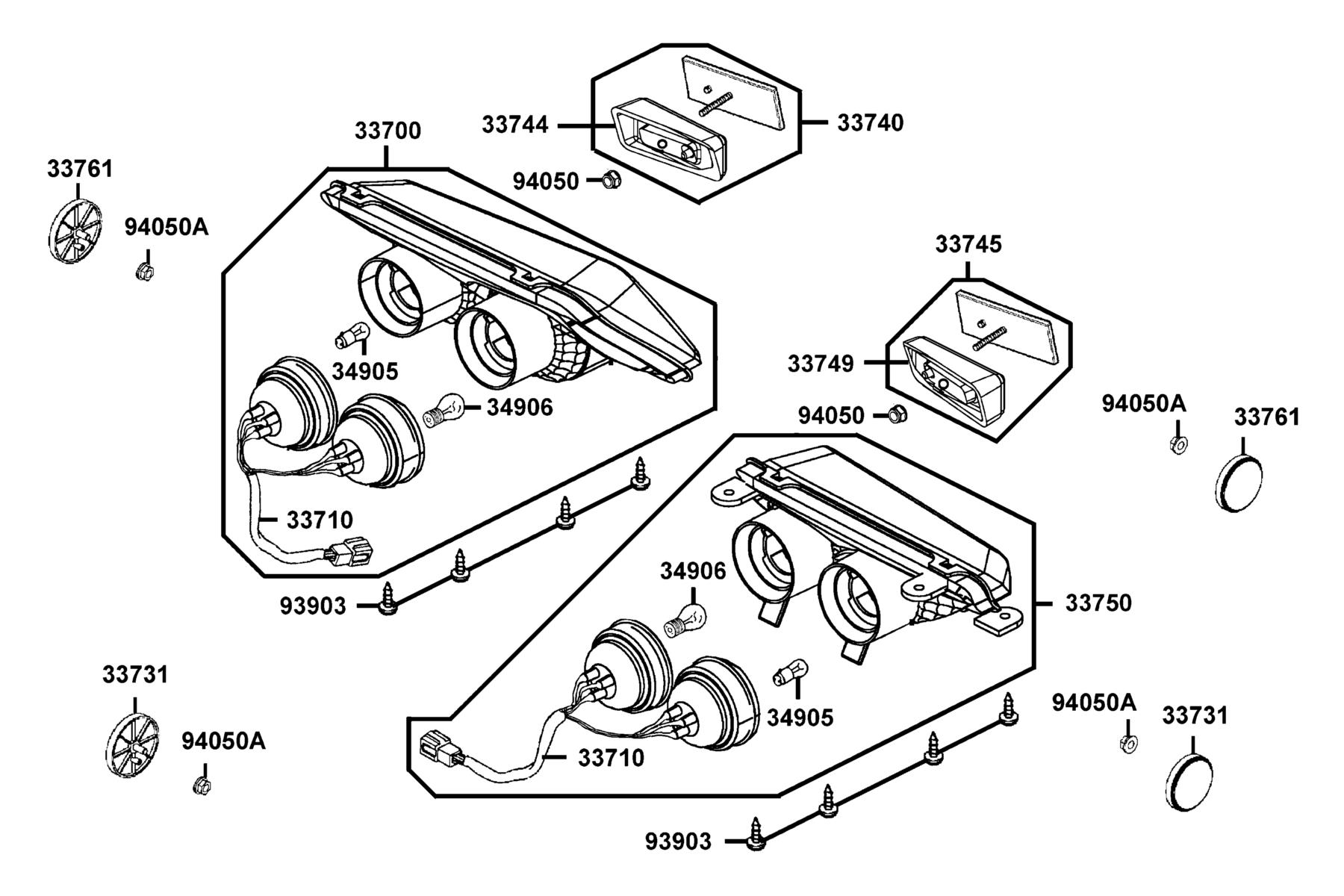

The Light Tail diagram contains 14 genuine OEM parts for the KYMCO MXU 450i LE (2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33700-LFA5-900 | LIGHT ASS Y R RR COMB | 2 | $139.92 USD | View product → | |
| 2 | 33710-LFA5-900 | SOCKEY COMP RR COMB | 1 | $78.27 USD | View product → | |
| 3 | 33731-KHC5-M00 | REFLEX REFLECTOR SIDE | 2 | $35.79 USD | View product → | |
| 4 | 33740-LFA5-E00 | REFLECTOR ASSY R RR | 1 | $48.54 USD | View product → | |
| 5 | 33744-LFA5-E00 | PACKING R REFLECTOR RR | 1 | $33.66 USD | View product → | |
| 6 | 33745-LFA5-E00 | REFLECTOR ASSY L RR | 1 | $48.54 USD | View product → | |
| 7 | 33749-LFA5-E00 | PACKING L REFLECTOR RR | 1 | $33.66 USD | View product → | |
| 8 | 33761-KHC5-M00 | REFLEX REFLECTOR | 2 | $14.01 USD | View product → | |
| 9 | 34905-LCA5-900 | BULB POSITION 12V5W | 2 | $32.10 USD | View product → | |
| 10 | 34906-KPCP-900 | BULB TAIL & STOP | 2 | $8.76 USD | View product → | |
| 11 | 34906-KPCP-900-invalid | BULB TAIL & STOP | 2 | $11.40 USD | View product → | |
| 12 | 93903-35260 | SCREW TAPPING 5*12 | 8 | $4.92 USD | View product → | |
| 13 | 94050-05060 | NUT FLANGE 5MM | 2 | $4.92 USD | View product → | |
| 14 | 94050-06080 | NUT FLANGE 6MM | 4 | $2.31 USD | View product → |
