F24 — Emblem ● Stripe

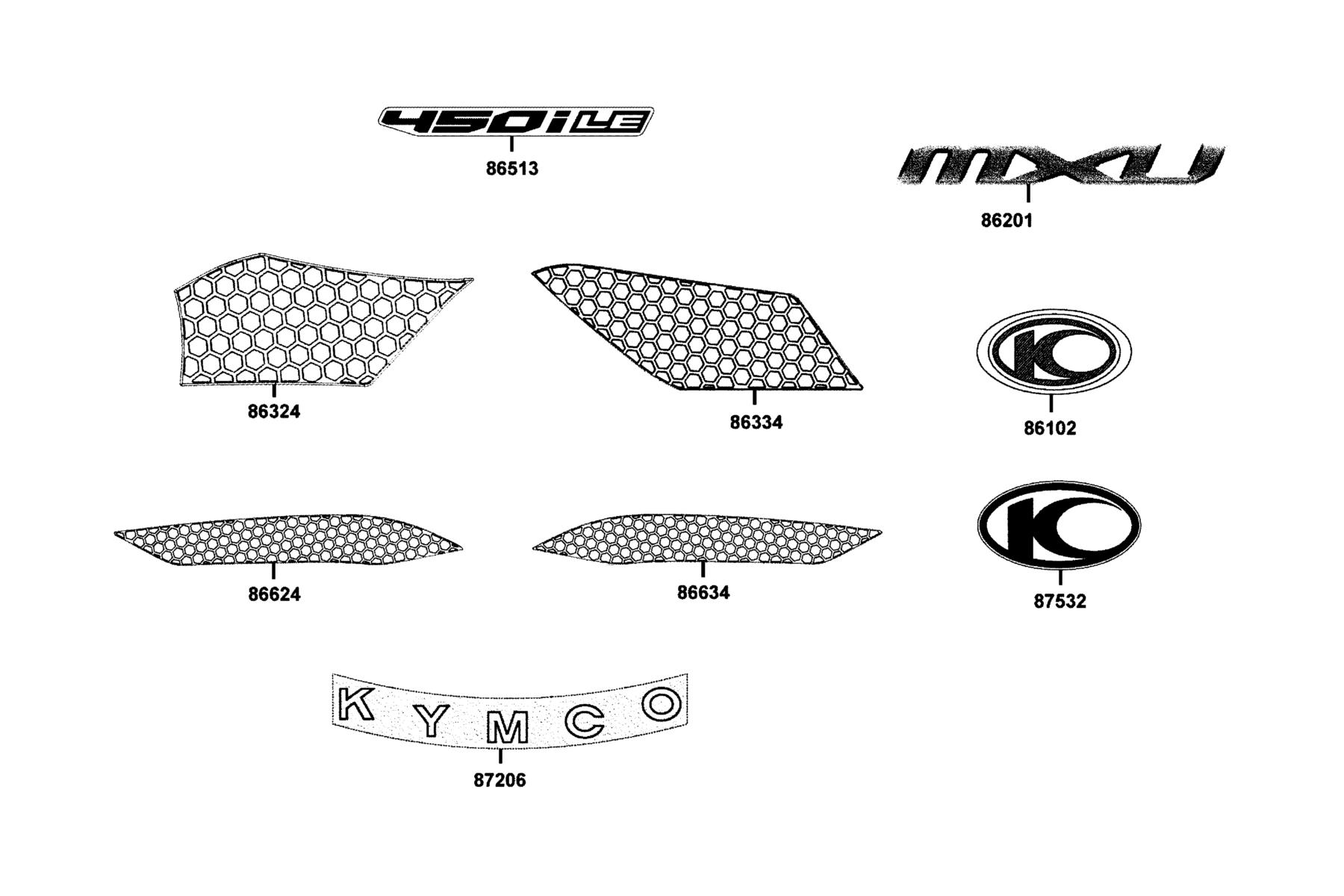

The Emblem ● Stripe diagram contains 9 genuine OEM parts for the KYMCO MXU 450i LE (2023). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 86102-ALG1-E00-T01 | EMB K-LOGO | 1 | $47.49 USD | View product → | |
| 2 | 86201-AGA9-M00-T01 | EMB FR COVER | 1 | $59.82 USD | View product → | |
| 3 | 86324-AEB8-M30-T01 | EMB R SIDE COVER | 1 | $103.08 USD | View product → | |
| 4 | 86334-AEB8-M30-T01 | EMB L SIDE COVER | 1 | $118.41 USD | View product → | |
| 5 | 86513-AEB8-M00-T01 | STRIPE B R FR FENDER | 1 | — | Part details → | |
| 6 | 86624-AEB8-M30-T01 | EMB R RR FENDER | 1 | $132.30 USD | View product → | |
| 7 | 86634-AEB8-M30-T01 | EMB R RR FENDER | 1 | $132.30 USD | View product → | |
| 8 | 87206-AEB8-M30-T01 | EMB MARK KYMCO | 1 | $50.55 USD | View product → | |
| 9 | 87532-LCA5-900-T03 | STRIPE K-LOGO 60MM | 1 | $18.72 USD | View product → |
