E07 — Fan Cover ● Generator

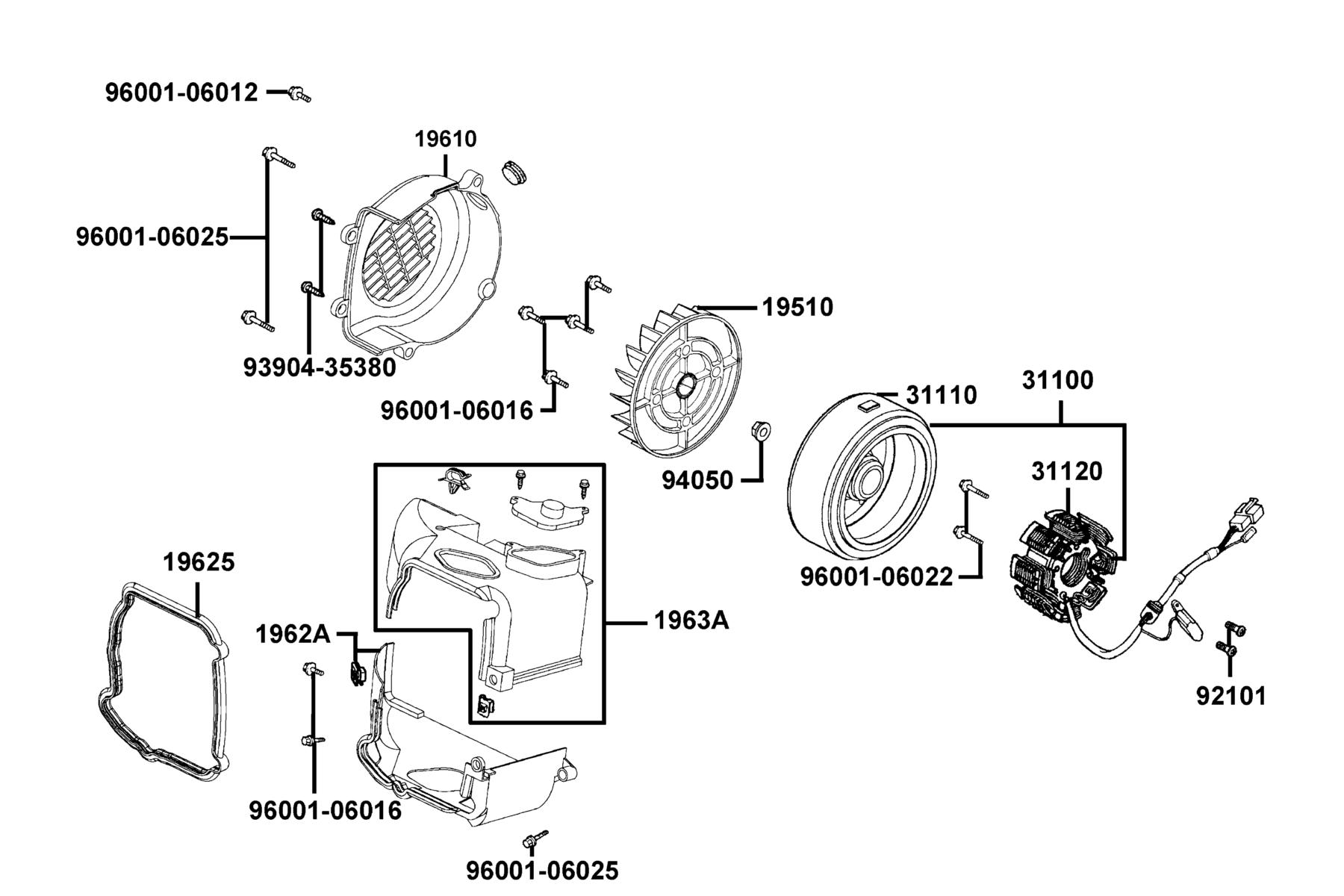

The Fan Cover ● Generator diagram contains 15 genuine OEM parts for the KYMCO Super 8 50 MY2026. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 19510-LDC5-C00 | FAN COMP COOLING | 1 | $27.60 USD | View product → | |
| 2 | 19610-LFC2-E10 | "COVER ASSY., FAN" | 1 | $38.52 USD | View product → | |
| 3 | 19625-KEE1-C00 | SEAL SHROUND | 1 | $21.03 USD | View product → | |
| 4 | 1962A-KEE1-C00 | SHROCD ASSY A | 1 | $20.67 USD | View product → | |
| 5 | 1963A-ADB2-C00 | SHROUD ASSY B | 1 | $51.51 USD | View product → | |
| 6 | 31100-ACB9-E10 | AC GEN ASS'Y | 1 | $227.55 USD | View product → | |
| 7 | 31110-ADB2-C00 | FLYWHEEL COMP | 1 | $168.30 USD | View product → | |
| 8 | 31120-ACB9-E10 | STATOR COMP | 1 | $195.15 USD | View product → | |
| 9 | 92101-05012-0HG | BOLT HEX 5*12 | 2 | $0.66 USD | View product → | |
| 10 | 93904-35380-G | SCREW TAPPING 5*16(K) | 2 | $0.99 USD | View product → | |
| 11 | 94050-10080-G | NUT FLANGE 10MM | 1 | $1.95 USD | View product → | |
| 12 | 96001-06012-08G | BOLT FLANGE SH 6X12 (C) | 1 | $0.99 USD | View product → | |
| 13 | 96001-06016-08G | BOLT FLANGE SH 6x16 (C) | 6 | $0.99 USD | View product → | |
| 14 | 96001-06022-08G | BOLT FLANGE SH 6*22 (C) | 2 | $0.99 USD | View product → | |
| 15 | 96001-06025-08G | BOLT FLANGE SH 6*25 (C) | 3 | $0.99 USD | View product → |
