E08 — Transmission

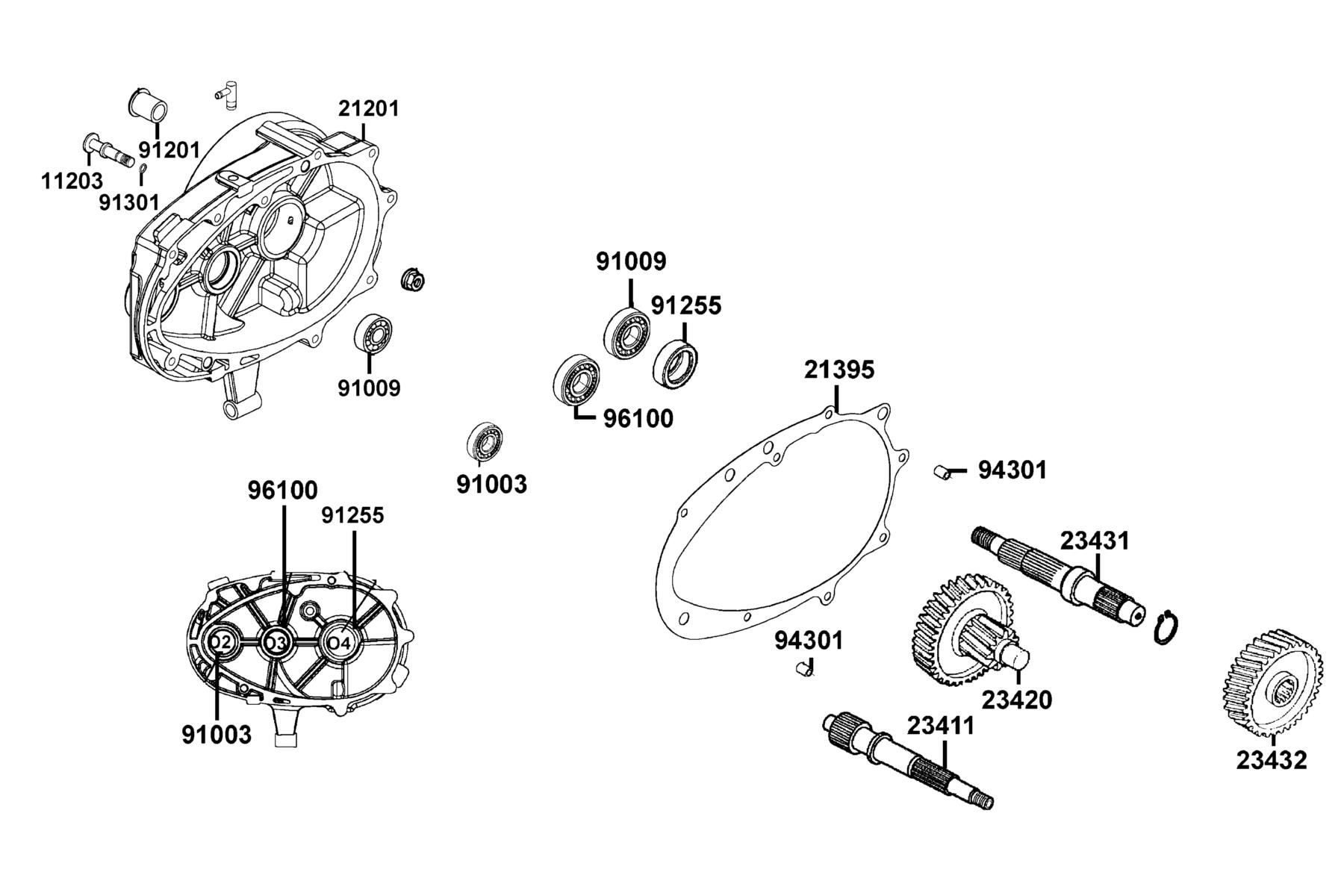

The Transmission diagram contains 14 genuine OEM parts for the KYMCO Super 8 50 MY2026. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11203-KUDU-C00 | PIN BRAKE SHOE ANCHOR | 1 | $20.85 USD | View product → | |
| 2 | 21201-LCD2-C00 | CASE COMP MISSION | 1 | $171.72 USD | View product → | |
| 3 | 21395-LCD2-E90 | GASKET MISSION CASE@A | 1 | $86.16 USD | View product → | |
| 4 | 23411-LCD2-C00 | SHAFT DRIVE | 1 | $116.85 USD | View product → | |
| 5 | 23420-ALK1-E15 | SHAFT COMP COUNTER | 1 | $159.27 USD | View product → | |
| 6 | 23432-ALK1-E15 | GEAR FINAL | 1 | $132.24 USD | View product → | |
| 7 | 2343A-LEJ2-E10 | SHAFT FINAL | 1 | $117.78 USD | View product → | |
| 8 | 91003-KDS4-C00 | BRG BALL RADIAL 6301TMB | 1 | $49.68 USD | View product → | |
| 9 | 91009-GLE0-004 | BRG BALL RADIAL 6004 UU | 1 | $66.72 USD | View product → | |
| 10 | 91201-KED1-C00 | BUSH MISSION | 1 | $35.97 USD | View product → | |
| 11 | 91255-LDC8-E10 | OIL SEAL 27*42*7 (C???) | 1 | $8.70 USD | View product → | |
| 12 | 91301-0C53-W10 | O-RING 7.5*1.5 | 1 | $0.99 USD | View product → | |
| 13 | 94301-10160 | DOWEL PIN 10*16 | 2 | $3.00 USD | View product → | |
| 14 | 96100-60020-00 | BRG BALL RADIAL 6002 | 1 | $53.61 USD | View product → |
