F10 — Fuel Tank

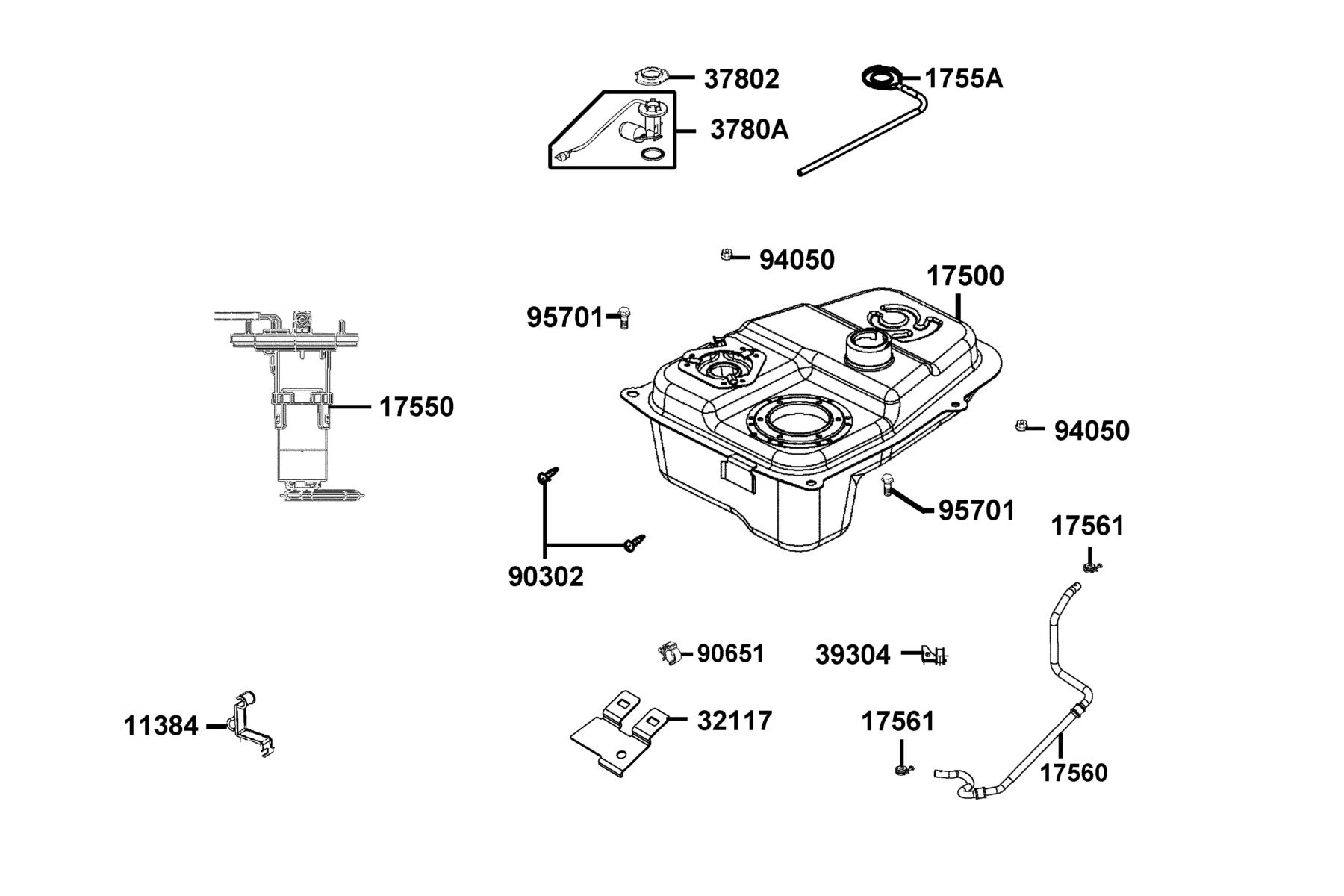

The Fuel Tank diagram contains 14 genuine OEM parts for the KYMCO Super 8 50 MY2026. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11384-AHF8-M40 | CLAMPER. SP SENSOR | 1 | — | Part details → | |
| 2 | 17500-AAB6-E15 | TANK COMP FUEL | 1 | $335.07 USD | View product → | |
| 3 | 17550-AAB6-M30 | FUEL PUMP ASSY | 1 | $491.01 USD | View product → | |
| 4 | 1755A-BLA2-E70 | TRAY ASSY FUEL CAP | 1 | $67.20 USD | View product → | |
| 5 | 17560-BLA2-M30 | TUBE PUMP.,INJECTOR | 1 | — | Part details → | |
| 6 | 17561-LGK8-900 | CLIP 12.0 | 1 | $22.17 USD | View product → | |
| 7 | 32117-AHF8-M40 | STAY | 1 | — | Part details → | |
| 8 | 37802-GGA7-C00 | RET FUEL UNIT | 1 | $5.22 USD | View product → | |
| 9 | 3780A-BLA2-M30 | FUEL UNIT ASSY | 1 | $110.28 USD | View product → | |
| 10 | 39304-LFG7-900 | CLAMPER FUEL TUBE | 1 | — | Part details → | |
| 11 | 90302-GFY6-C11 | BOLT-WASH 5*16 | 2 | $4.65 USD | View product → | |
| 12 | 90651-ALJ8-C00 | CLIP,MUDGUARD | 1 | — | Part details → | |
| 13 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → | |
| 14 | 95701-06012-08G | BOLT FLANGE 6*12 (C) | 5 | $0.99 USD | View product → |
