F13 — Air Cleaner

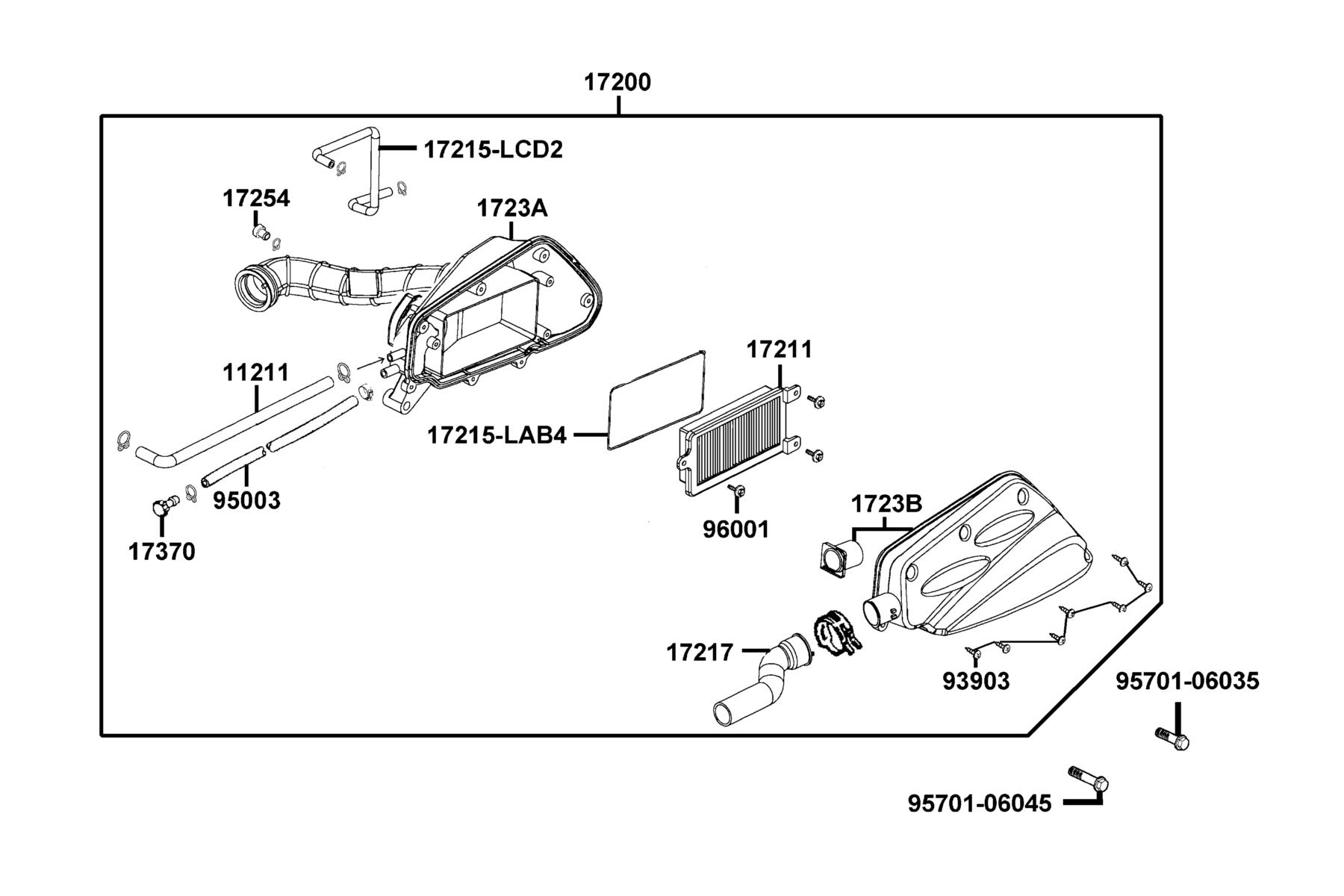

The Air Cleaner diagram contains 15 genuine OEM parts for the KYMCO Super 8 50 MY2026. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11211-LCD2-C00 | TUBE BREATHER | 1 | $34.50 USD | View product → | |
| 2 | 17200-BLA2-M30 | AIR/C ASSY | 1 | $186.93 USD | View product → | |
| 3 | 17211-LAB4-C00 | ELEMENT COMP AIR/C | 1 | $43.50 USD | View product → | |
| 4 | 17215-LAB4-C00 | SEAL ELEMENT | 1 | $20.64 USD | View product → | |
| 5 | 17215-LCD2-C00 | TUBE COMP BREATH MISSION | 1 | $23.40 USD | View product → | |
| 6 | 17217-LCD2-C00 | TUBE OUTER AIR/C | 1 | $32.46 USD | View product → | |
| 7 | 1723A-ALK1-EW5 | CASE ASSY AIR/C | 1 | $128.64 USD | View product → | |
| 8 | 1723B-LCD2-C00 | COVER COMP AIR/C | 1 | $85.65 USD | View product → | |
| 9 | 17254-KACA-P00 | PLUG AIR/C CONN TUBE | 1 | $5.67 USD | View product → | |
| 10 | 17370-4K19-C00 | PLUG BREATHER TUBE | 1 | $1.65 USD | View product → | |
| 11 | 93903-25480 | SCREW TAPPING 5*20 **93903-25460 C.P.N. | 7 | $4.92 USD | View product → | |
| 12 | 95003-23036-60 | V TUBE 8*12*360 | 1 | $14.04 USD | View product → | |
| 13 | 95701-06035-08G | BOLT FLANGE 6*35 | 1 | $1.95 USD | View product → | |
| 14 | 95701-06045-08G | BOLT FLANGE 6*45 (C) | 1 | — | Part details → | |
| 15 | 96001-GFY6-C00 | BOLT SPECIAL 5X10 | 1 | $1.65 USD | View product → |
