F04 — Brake Master Cylinder

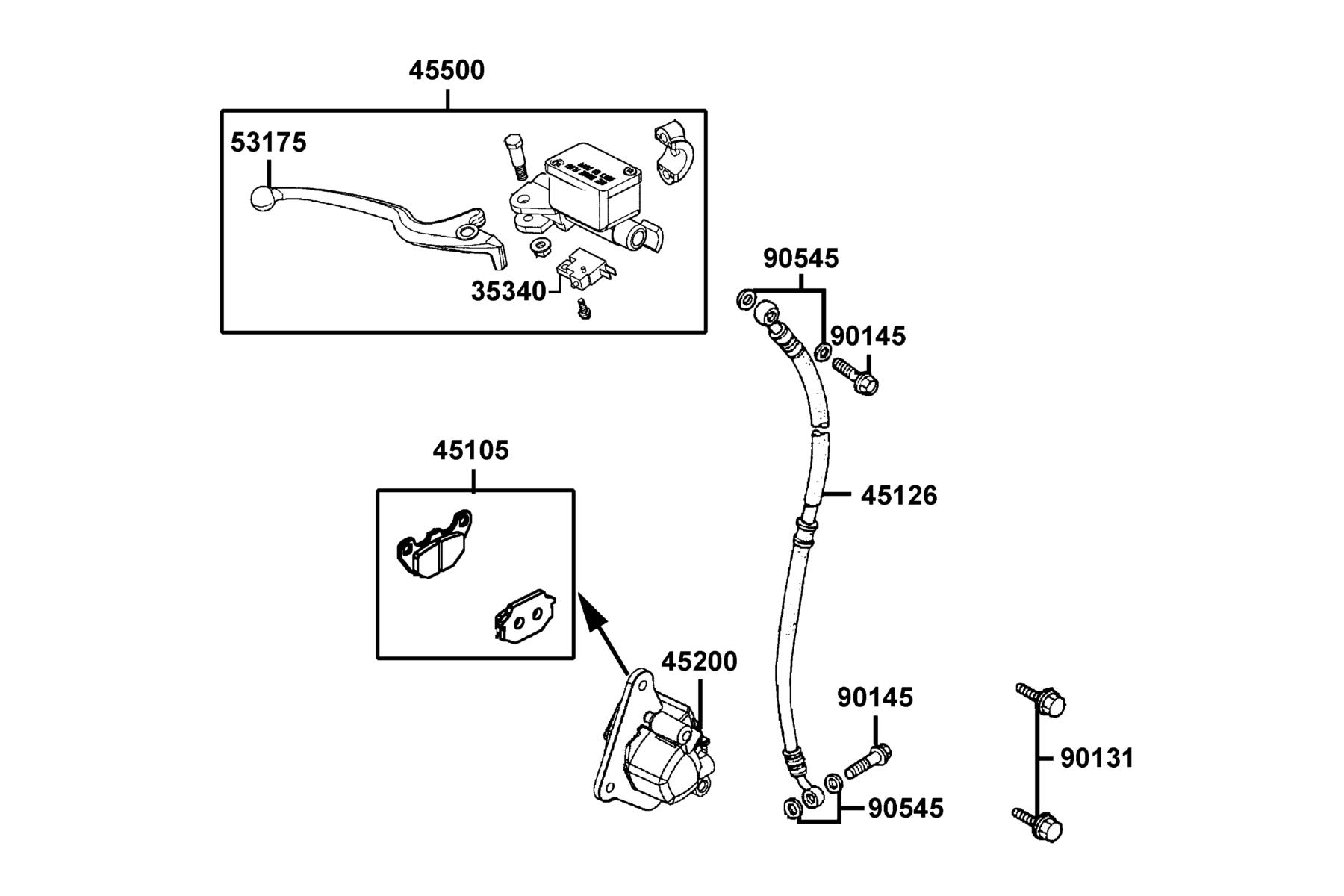

The Brake Master Cylinder diagram contains 9 genuine OEM parts for the KYMCO Super 8 50 MY2026. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 35340-KNBN-C00 | SW ASSY FR STOP | 1 | $44.07 USD | View product → | |
| 2 | 45105-LEJ2-306 | PAD COMP A AND B | 1 | $131.10 USD | View product → | |
| 3 | 45126-BLA2-E00 | HOSE ASSY FR BRK | 1 | $140.25 USD | View product → | |
| 4 | 45200-LEJ2-E1A | CALIPER ASSY FR LH | 1 | $176.73 USD | View product → | |
| 5 | 45500-AEH9-C00 | CYLINDER ASSY FR (MASTER) | 1 | — | Part details → | |
| 6 | 53175-LEB9-E00-M2A | LEVER R STRG HANDLE | 1 | $107.49 USD | View product → | |
| 7 | 90131-GLW0-C02 | BOLT FLANGE 8*35 | 2 | $7.50 USD | View product → | |
| 8 | 90145-MKS9-C00 | OIL BOLT 10*22 | 2 | $7.53 USD | View product → | |
| 9 | 90545-3L00-C01 | WASHER OIL BOLT | 1 | $66.33 USD | View product → |
