F03 — Handle Steering ● Handle Cover

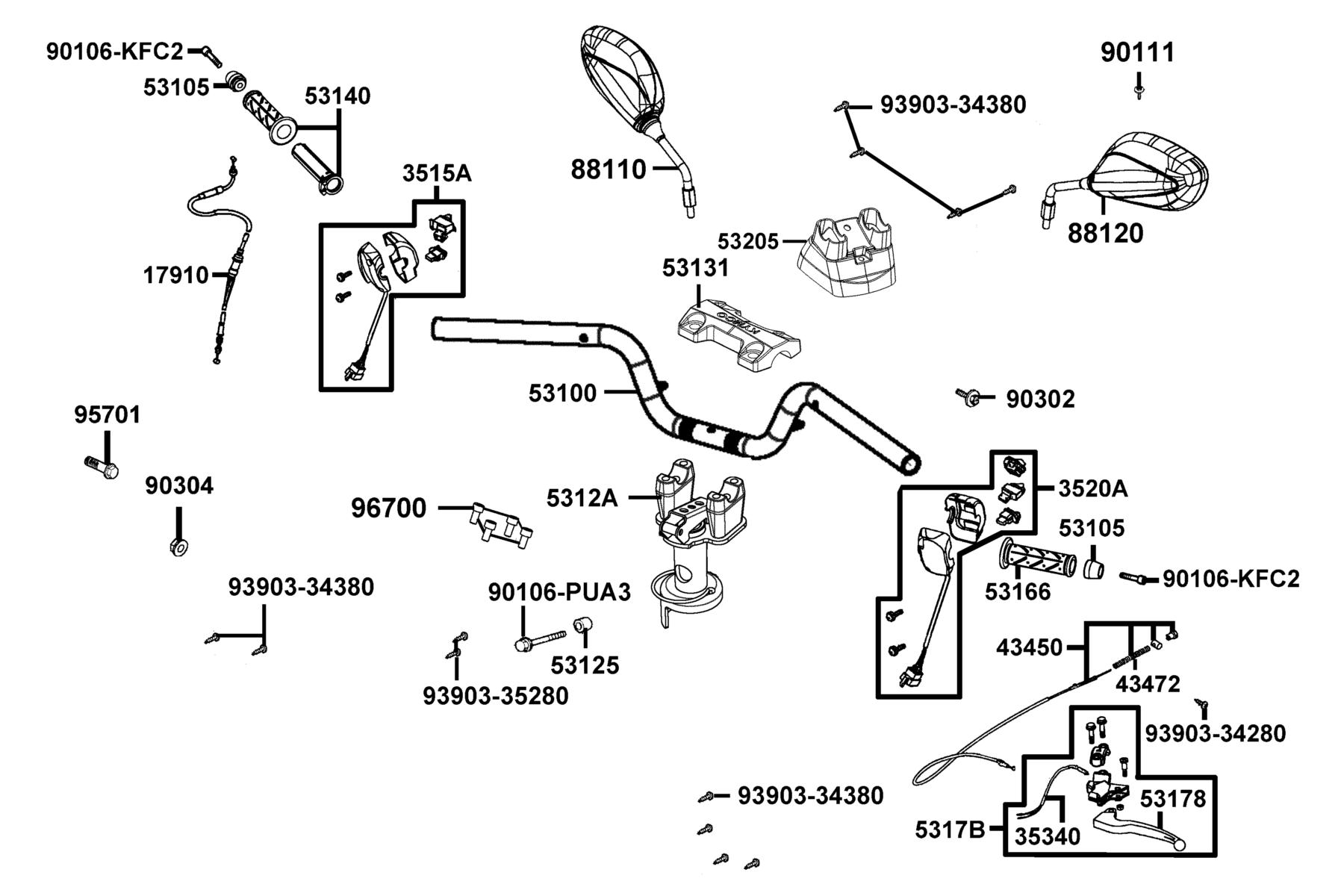

The Handle Steering ● Handle Cover diagram contains 28 genuine OEM parts for the KYMCO Super 8 50 MY2026. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17910-BLA2-EW5 | CABLE COMP THROT | 1 | $77.28 USD | View product → | |
| 2 | 3515A-LKL5-EV0 | SW. ASSY. RH HNDL. COMP. | 1 | $104.58 USD | View product → | |
| 3 | 3520A-AEH2-M40 | SW ASSY LH HANDLE COMP | 1 | $90.60 USD | View product → | |
| 4 | 35340-AEH2-M40 | SW ASSY FR STOP | 1 | $33.72 USD | View product → | |
| 5 | 43450-BLA2-E70 | CABLE COMP RR BRK | 1 | $55.17 USD | View product → | |
| 6 | 43472-LEJ3-E10 | SPG RR BRK CABLE | 1 | $6.24 USD | View product → | |
| 7 | 53100-BLA2-M30 | HANDLE COMP STRG | 1 | $140.07 USD | View product → | |
| 8 | 53105-KNBN-C00 | END STRG HANDLE | 2 | $10.14 USD | View product → | |
| 9 | 53125-PUA3-B50 | COLLAR HANDLE SET | 1 | $16.11 USD | View product → | |
| 10 | 5312A-AHF8-M40 | HOLDER COMP HANDLE | 1 | $404.36 USD | View product → | |
| 11 | 53131-LHM9-E60-YYP | HOLDER UPPER HANDLE PIPE | 1 | — | Part details → | |
| 12 | 53140-AEH2-M40-N1R | GRIP COMP THROT (Black) | 1 | $38.13 USD | View product → | |
| 13 | 53166-KNBN-C00-N1R | GRIP L HANDLE | 1 | $28.05 USD | View product → | |
| 14 | 53178-KED1-C00-M2A | LEVER L STRG HANDLE | 1 | $59.37 USD | View product → | |
| 15 | 5317B-AEH2-M40 | BRKT ASSY HNDL LH | 1 | $70.59 USD | View product → | |
| 16 | 53205-AHF8-M40-N1R | COVER HANDLE FR | 1 | $122.55 USD | View product → | |
| 17 | 88110-AEH2-M30 | MIRROR ASSY R BACK | 1 | $73.14 USD | View product → | |
| 18 | 88120-AEH2-M30 | MIRROR ASSY L BACK | 1 | $73.14 USD | View product → | |
| 19 | 90106-KFC2-900 | BOLT-WASH 8MM | 2 | $10.80 USD | View product → | |
| 20 | 90106-PUA3-B50 | BOLT FLANGE 10*50 | 1 | $4.92 USD | View product → | |
| 21 | 90111-06016-07G | BOLT FLANGE 6*16 (K) | 1 | $4.65 USD | View product → | |
| 22 | 90302-PUA3-B51 | BOLT-WASH 5*12 | 1 | $4.65 USD | View product → | |
| 23 | 90304-GHE8-C01 | NUT U 10MM(C) | 1 | $21.45 USD | View product → | |
| 24 | 93903-34280-G | SCREW TAPPING 4*10 (KG) | 1 | $0.66 USD | View product → | |
| 25 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 6 | $2.73 USD | View product → | |
| 26 | 93903-35280-G | SCREW TAPPING 5*12 (K) | 2 | $0.99 USD | View product → | |
| 27 | 95701-06035-08G | BOLT FLANGE 6*35 | 1 | $1.95 USD | View product → | |
| 28 | 96700-08025-02 | BOLT FLANGE SH 8*25(CR) | 4 | $5.10 USD | View product → |
