F20 — Frame Body

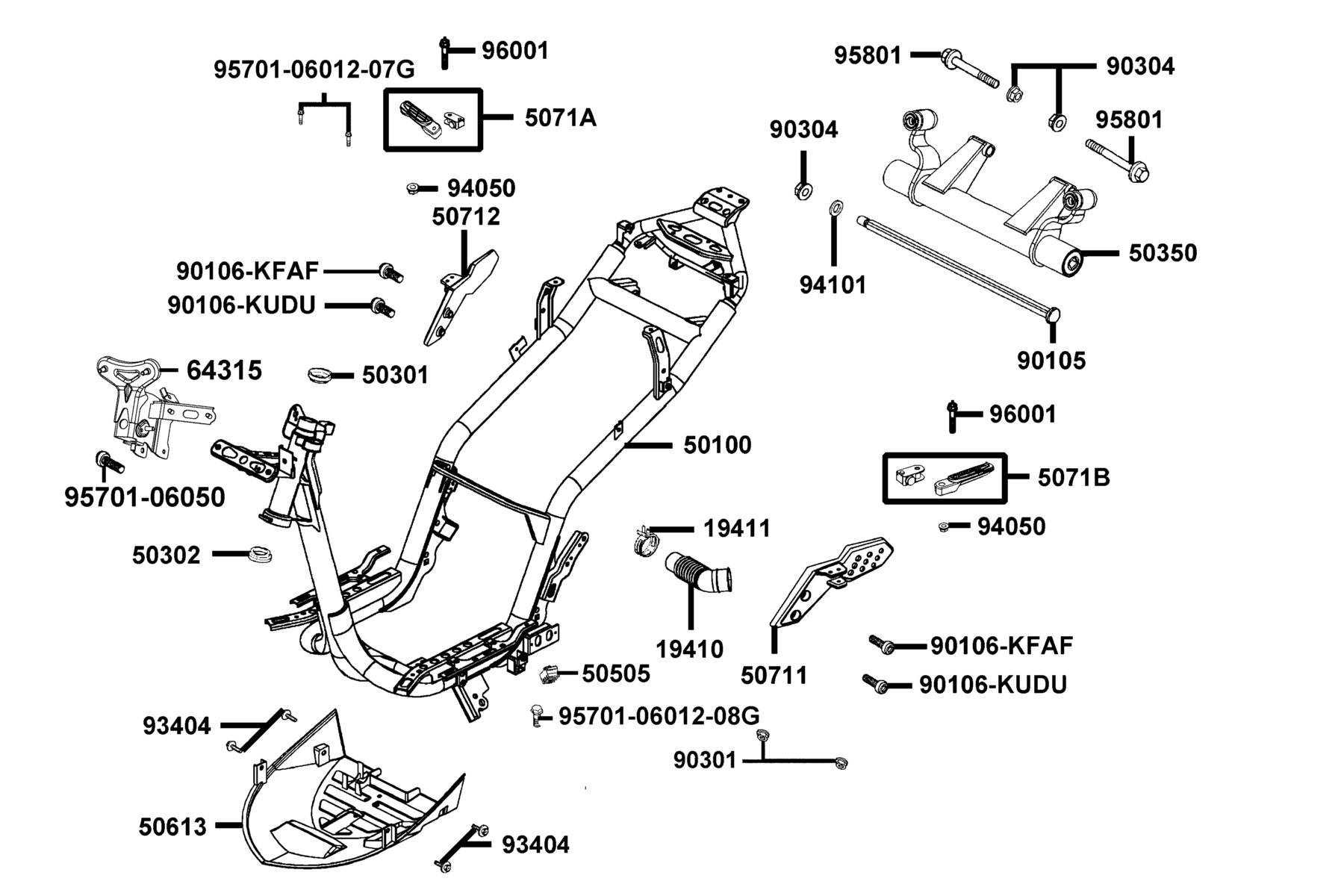

The Frame Body diagram contains 27 genuine OEM parts for the KYMCO Super 8 50 MY2026. Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 19410-LEJ2-E10 | DUCT COOLING | 1 | $41.97 USD | View product → | |
| 2 | 19411-KNBN-C10 | CLIP HOSE | 1 | $27.12 USD | View product → | |
| 3 | 50100-BLA2-E70 | BODY COMP FRAME | 1 | $659.50 USD | View product → | |
| 4 | 50301-KGN7-C00 | RACE UP STRG BALL | 1 | $18.57 USD | View product → | |
| 5 | 50302-2H68-C00 | RACE (STRG BOT) BALL | 1 | $15.84 USD | View product → | |
| 6 | 50350-LEJ2-E10 | HANGER ASSY ENG. | 1 | $174.27 USD | View product → | |
| 7 | 50505-PUA3-B50 | STOPPER RUBBER | 1 | $9.39 USD | View product → | |
| 8 | 50613-LEJ2-E10-N1R | COVER UNDER | 1 | $87.45 USD | View product → | |
| 9 | 50711-LEJ2-E10-NEA | "STEP R,RR STEP" | 1 | $123.27 USD | View product → | |
| 10 | 50712-LEJ2-E10-NEA | STEP L RR STEP | 1 | $115.17 USD | View product → | |
| 11 | 5071A-LEJ2-E10 | BAR R ASSY RR STEP | 1 | $84.60 USD | View product → | |
| 12 | 5071B-LEJ2-E10 | BAR L ASSY RR STEP | 1 | $84.60 USD | View product → | |
| 13 | 64315-AHF8-M40 | "CARRIER FR,CONNECT" | 1 | — | Part details → | |
| 14 | 90105-LEJ2-E10 | SQUARE BOLT/320MM | 1 | $8.01 USD | View product → | |
| 15 | 90106-KFAF-900 | BOLT SPECIAL 8*32 | 2 | $7.56 USD | View product → | |
| 16 | 90106-KFAF-900-invalid | BOLT SPECIAL 8*32 | 2 | $9.84 USD | View product → | |
| 17 | 90106-KUDU-900 | BOLT SPECIAL 8X26 | 2 | $11.31 USD | View product → | |
| 18 | 90301-LEJ2-E11 | NUT FLANGE 6mm | 2 | $4.92 USD | View product → | |
| 19 | 90304-GHE8-C01 | NUT U 10MM(C) | 1 | $21.45 USD | View product → | |
| 20 | 93404-06012-07G | 0 | 4 | $1.32 USD | View product → | |
| 21 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → | |
| 22 | 94101-10800-G | WASHER PLAIN 10MM (C) | 1 | $4.65 USD | View product → | |
| 23 | 95701-06012-07G | BOLT FLANGE 6*12 (K) | 1 | $0.99 USD | View product → | |
| 24 | 95701-06012-08G | BOLT FLANGE 6*12 (C) | 1 | $0.99 USD | View product → | |
| 25 | 95701-06050-07G | BOLT FLANGE 6*50 | 2 | $2.31 USD | View product → | |
| 26 | 95801-10070-08G | BOLT FLANGE 8*50(G) | 2 | $7.89 USD | View product → | |
| 27 | 96001-06040-07G | BOLT FLANGE SH 6*40 (KG) | 2 | $4.65 USD | View product → |
