E01 — Crank Case

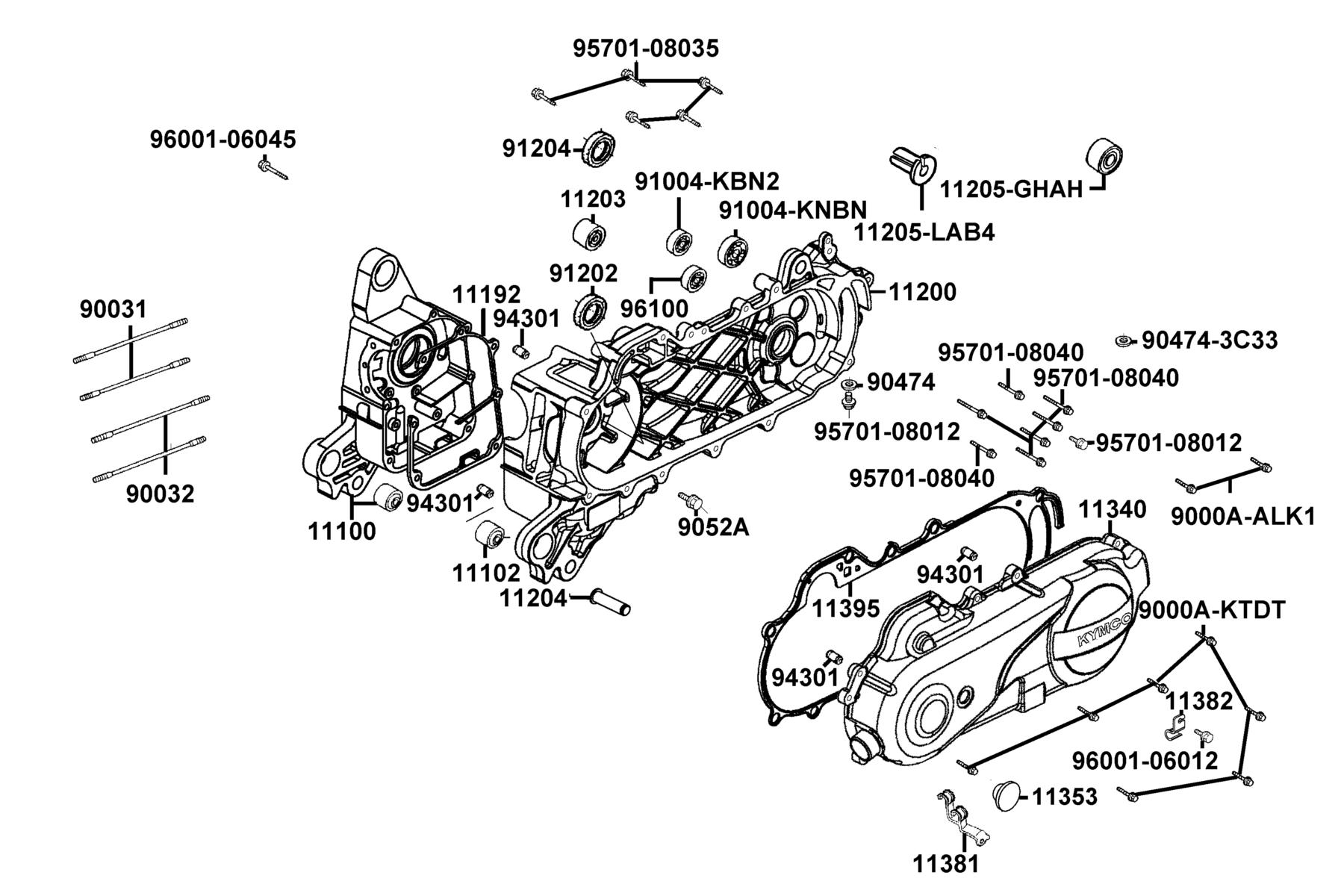

The Crank Case diagram contains 31 genuine OEM parts for the KYMCO LIKE(2)50(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11100-KGBG-C00 | CRANK CASE COMP.,R | 1 | $251.88 USD | View product → | |
| 2 | 11102-1G87-C00 | RUB BUSH ENG HANGER | 2 | $21.30 USD | View product → | |
| 3 | 11192-KGBG-E90 | GASKET CRANK CASE@A | 1 | $13.74 USD | View product → | |
| 4 | 11200-LBD6-C00 | CRANK CASE COMP LEFT | 1 | $378.21 USD | View product → | |
| 5 | 11203-GGC7-W10 | BUSH | 1 | $14.31 USD | View product → | |
| 6 | 11204-KNBN-C00 | PIN SPG HOOK | 1 | $4.65 USD | View product → | |
| 7 | 11205-GHAH-C00 | BUSH 8*12*8 | 2 | $4.59 USD | View product → | |
| 8 | 11205-LAB4-C00 | BUSH M STAND | 1 | $17.04 USD | View product → | |
| 9 | 11340-LBD6-C00-N8A | COVER COMP. L. CRANK CASE | 1 | $358.17 USD | View product → | |
| 10 | 11353-LEA6-C00 | RUBBER PLUG L COVER KICK | 1 | $11.79 USD | View product → | |
| 11 | 11381-KHC4-C00 | CLAMPER THROTTLE CABLE | 1 | $28.11 USD | View product → | |
| 12 | 11382-LBD6-C00 | CLAMPER BRAKE CABLE | 1 | $4.26 USD | View product → | |
| 13 | 11395-LBD6-C00 | GASKET L COVER | 1 | $40.86 USD | View product → | |
| 14 | 9000A-ALK1-E15 | BOLT ASSY SPECIAL | 1 | $7.53 USD | View product → | |
| 15 | 9000A-KTDT-C03 | BOLT ASSY SPECIAL 6*29.5 | 1 | $8.19 USD | View product → | |
| 16 | 90031-KGBG-C01 | BOLT A STUD 7*168 | 2 | $25.89 USD | View product → | |
| 17 | 90032-KGBG-C01 | BOLT B STUD 7x176 | 2 | $15.81 USD | View product → | |
| 18 | 90474-1G47-C00 | WASHER 10.5MM | 1 | $2.97 USD | View product → | |
| 19 | 90474-3C33-C00 | WASHER 8MM(T*2) | 1 | $0.99 USD | View product → | |
| 20 | 9052A-PUA3-B50 | BOLT ASSY DRAIN PLUG 12*15 | 1 | $7.89 USD | View product → | |
| 21 | 91004-KBN2-C00 | BRG BALL RADIAL 6201 | 1 | $94.98 USD | View product → | |
| 22 | 91004-KNBN-C00 | BRG BALL RADIAL 6203 | 1 | $70.98 USD | View product → | |
| 23 | 91202-GFY6-90C | OIL SEAL 19.8*30*5 | 1 | $12.36 USD | View product → | |
| 24 | 91204-KNBN-C00 | OIL SEAL 17*30*6 | 1 | $41.10 USD | View product → | |
| 25 | 94301-08140 | DOWEL PIN 8*14 | 4 | $3.00 USD | View product → | |
| 26 | 95701-08012-08G | BOLT FLANGE 8X12(C) | 2 | $3.27 USD | View product → | |
| 27 | 95701-08035-08G | BOLT FLANGE 8*35 (C) | 5 | $3.27 USD | View product → | |
| 28 | 95701-08040-08G | BOLT FLANGE 8*40 | 2 | $3.27 USD | View product → | |
| 29 | 96001-06012-02 | BOLT FLANGE SH 6*12 (Cr) | 1 | $2.61 USD | View product → | |
| 30 | 96001-06045-08G | BOLT FLANGE SH 6x45 (C) | 1 | $1.95 USD | View product → | |
| 31 | 96100-62033-00 | BEARING BALL RADIAL 6203 | 1 | $44.31 USD | View product → |
