F03 — Handle Steering ● Handle Cover

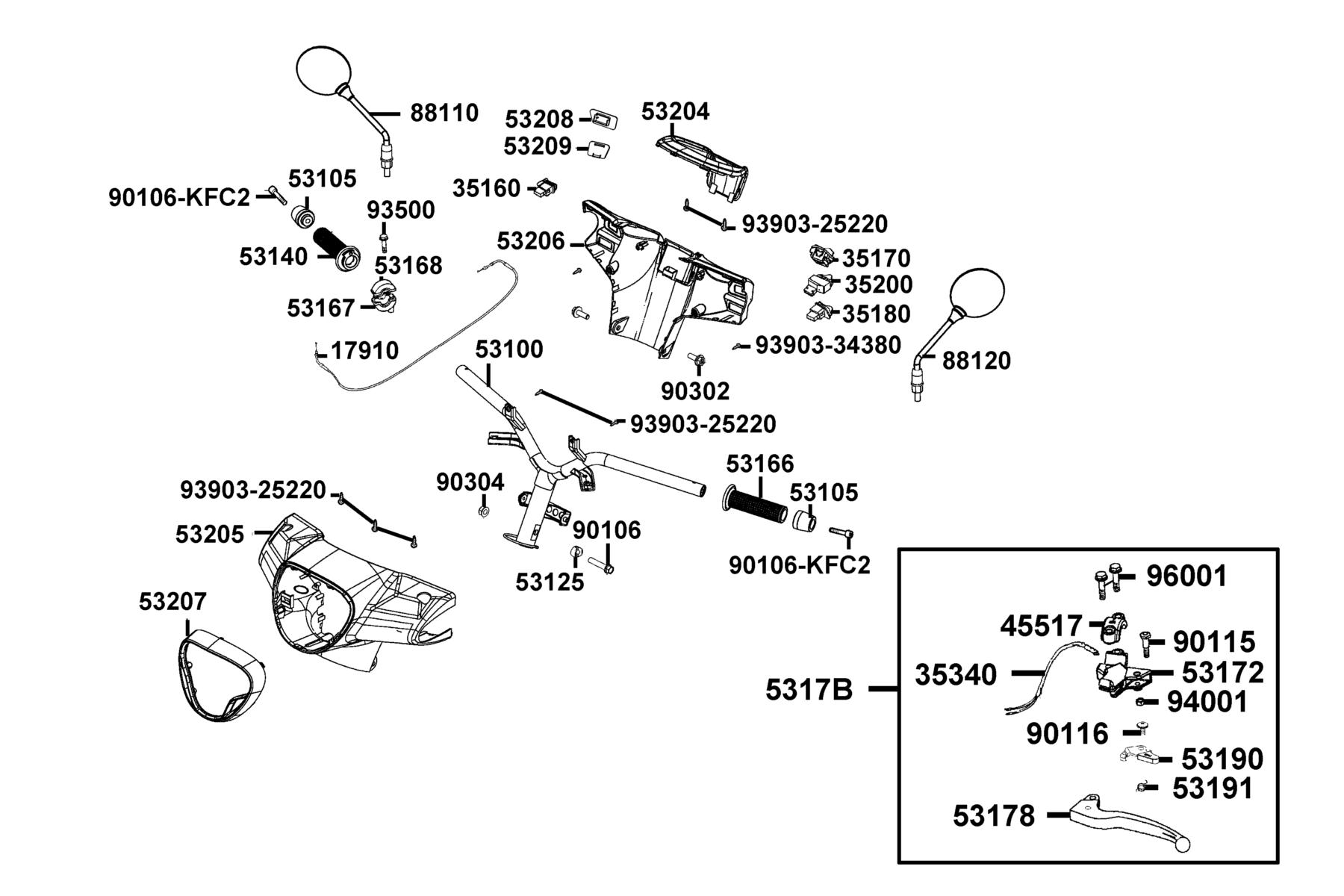

The Handle Steering ● Handle Cover diagram contains 39 genuine OEM parts for the KYMCO LIKE(2)50(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 17910-ACB9-E10 | CABLE COMP THROT | 1 | $41.10 USD | View product → | |
| 2 | 35160-GFY6-C00 | SW UNIT START | 1 | $28.95 USD | View product → | |
| 3 | 35170-KNBN-C00 | SW UNIT DIMMER PASSING | 1 | $45.36 USD | View product → | |
| 4 | 35180-GFY6-C00 | SW UNIT HORN | 1 | $28.95 USD | View product → | |
| 5 | 35200-GFY6-C00 | SW UNIT WINKER | 1 | $37.59 USD | View product → | |
| 6 | 35340-KFLF-C00 | SW ASSY FR STOP | 1 | $24.66 USD | View product → | |
| 7 | 45517-GFY6-900 | HOLDER HNDL BRKT | 1 | $10.14 USD | View product → | |
| 8 | 45517-GFY6-900-invalid | HOLDER HNDL BRKT | 1 | $13.17 USD | View product → | |
| 9 | 53100-ACC1-E10 | HANDLE COMP STRG | 1 | $122.46 USD | View product → | |
| 10 | 53105-LGR5-E10 | END R HANDLE | 1 | $39.99 USD | View product → | |
| 11 | 53125-GEN5-C00 | COLLAR HANDLE SET | 1 | $19.80 USD | View product → | |
| 12 | 53140-ACC1-E10 | GRIP COMP THROT | 1 | $19.47 USD | View product → | |
| 13 | 53166-ACC1-E10 | GRIP L HANDLE | 1 | $32.07 USD | View product → | |
| 14 | 53167-GBN2-C00 | HOUSING UND THROT | 1 | $9.39 USD | View product → | |
| 15 | 53168-GBN2-C00 | HOUSING UP THROT | 1 | $7.17 USD | View product → | |
| 16 | 53172-LGR3-E10 | BRKT, HANDLE L | 1 | $36.36 USD | View product → | |
| 17 | 53178-LGR3-E10-NJA | "LEVEL,L STRG HANDLE" | 1 | $33.15 USD | View product → | |
| 18 | 5317B-LGR3-E10 | "BRKT ASSY, L HNDL(PARK)" | 1 | $130.71 USD | View product → | |
| 19 | 53190-GFY6-C00 | LEVER COMP P/BRK | 1 | $10.14 USD | View product → | |
| 20 | 53191-GFY6-C00 | SPG PKB LEVER | 1 | $1.65 USD | View product → | |
| 21 | 53204-ACC1-E10-J1P | COVER METER | 1 | $72.33 USD | View product → | |
| 22 | 53205-AEA7-M30-U1P | COVER HANDLE FR (Flat Orange) | 1 | $110.01 USD | View product → | |
| 23 | 53206-ACC1-E10-U1P | COVER HANDLE RR (Flat Orange) | 1 | $177.42 USD | View product → | |
| 24 | 53207-ACC1-E10-F1P | COVER HEAD LIGHT | 1 | $70.59 USD | View product → | |
| 25 | 53208-ACC1-E10-U1P | COVER L SIDE HANDLE | 1 | $20.10 USD | View product → | |
| 26 | 53209-ACC1-E10-U1P | COVER | 1 | $20.10 USD | View product → | |
| 27 | 88110-AEA7-M30 | MIRROR ASSY R BACK ( CHROME ) | 1 | $64.14 USD | View product → | |
| 28 | 88120-AEA7-M30 | MIRROR ASSY L BACK ( CHROME ) | 1 | $64.14 USD | View product → | |
| 29 | 90106-KFC2-900 | BOLT-WASH 8MM | 2 | $10.80 USD | View product → | |
| 30 | 90106-PUA3-B50 | BOLT FLANGE 10*50 | 1 | $4.92 USD | View product → | |
| 31 | 90115-GLE0-C00 | BOLT HNDL LEVER PIVOT | 1 | $13.77 USD | View product → | |
| 32 | 90116-GGS7-C00 | SCREW P/BRK LEVER PIVOT | 1 | $1.65 USD | View product → | |
| 33 | 90302-PUA3-B51 | BOLT-WASH 5*12 | 2 | $4.65 USD | View product → | |
| 34 | 90304-GHE8-C01 | NUT U 10MM(C) | 1 | $21.45 USD | View product → | |
| 35 | 93500-05022-07G | SCREW PAN 5*22 | 1 | $0.99 USD | View product → | |
| 36 | 93903-25220-G | SCREW TAPPING 5*12 | 1 | $0.99 USD | View product → | |
| 37 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 2 | $2.73 USD | View product → | |
| 38 | 94001-05080-0S | NUT HEX 5MM | 1 | $4.92 USD | View product → | |
| 39 | 96001-06025-06 | BOLT FLANGE SH 6*25 | 1 | $2.61 USD | View product → |
