F08 — Rear Wheel

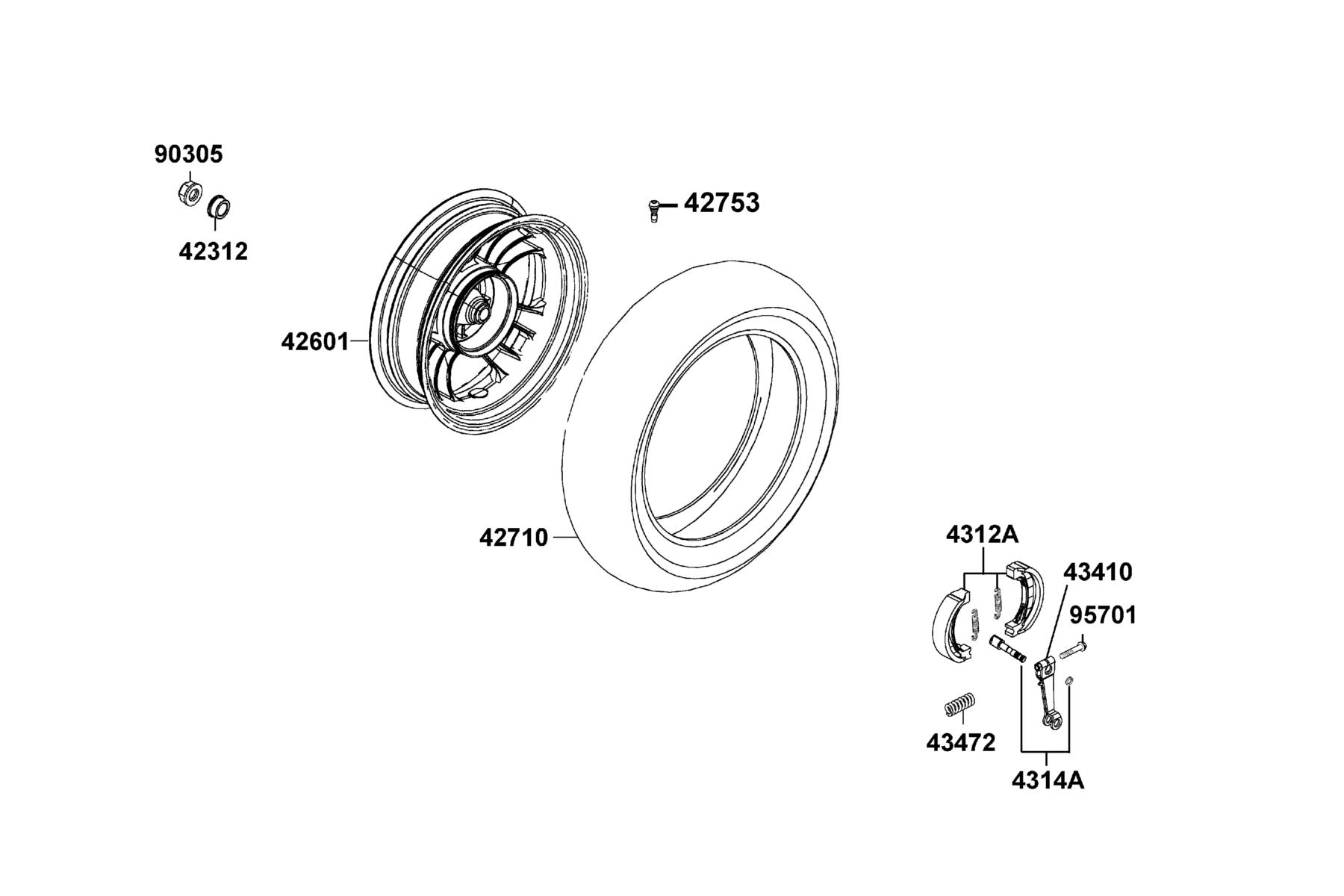

The Rear Wheel diagram contains 10 genuine OEM parts for the KYMCO LIKE(2)50(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42312-KHB4-C00 | CLOLLAR RR AXLE SIDE | 1 | $14.43 USD | View product → | |
| 2 | 42601-ACB9-E11-NEA | WHEEL COMP RR CAST | 1 | $283.47 USD | View product → | |
| 3 | 42710-LGS6-C1B | TIRE ASSY RR | 1 | $552.78 USD | View product → | |
| 4 | 42753-0A01-C00 | VALVE (TR 412) & CAP (C) | 1 | $18.54 USD | View product → | |
| 5 | 4312A-KXCX-C00 | SHOE ASSY RR BRAKE | 1 | $55.95 USD | View product → | |
| 6 | 4314A-KKD6-E00 | CAM ASSY RR BRAKE | 1 | $69.06 USD | View product → | |
| 7 | 43410-KFA1-C00 | ARM REAR BRAKE | 1 | $56.10 USD | View product → | |
| 8 | 43472-KHG8-C00 | SPG RR BRK ARM | 1 | $2.97 USD | View product → | |
| 9 | 90305-KFW6-C00 | NUT U FLANGE 16MM(C) | 1 | $11.73 USD | View product → | |
| 10 | 95701-06032-08G | BOLT FLANGE 6*32 | 1 | $1.95 USD | View product → |
