F18 — Tail Light

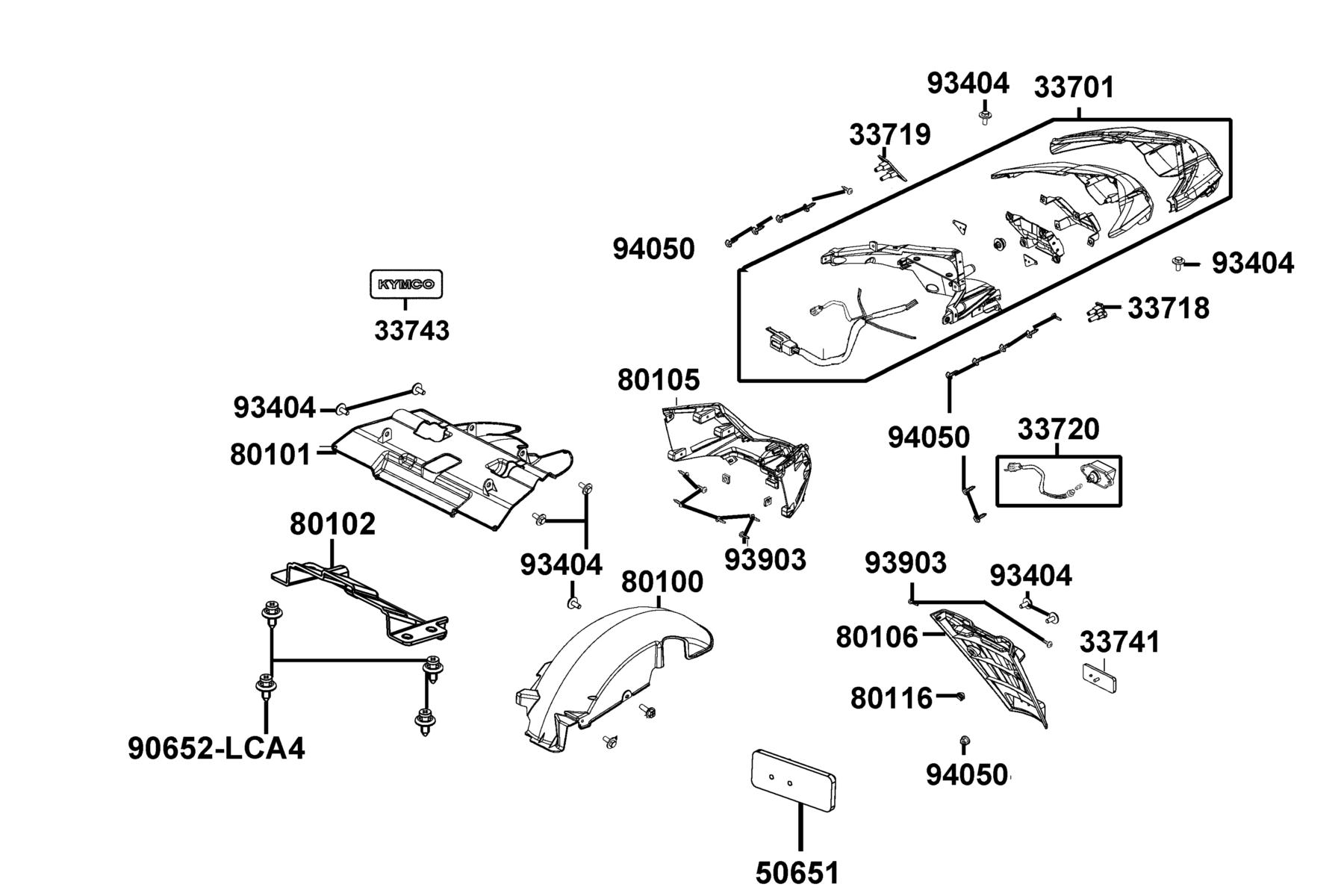

The Tail Light diagram contains 17 genuine OEM parts for the KYMCO LIKE(2)50(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33701-AEA7-M30 | LIGHT ASSY RR COMB | 1 | $589.02 USD | View product → | |
| 2 | 33718-ACC1-E10-N1R | LID R RR (Black) | 1 | — | Part details → | |
| 3 | 33719-ACC1-E10-N1R | LID L RR (Black) | 1 | — | Part details → | |
| 4 | 33720-ADA9-M30 | LIGHT ASSY LICENSE | 1 | $68.04 USD | View product → | |
| 5 | 33741-AEA7-M30 | REFLEX REFLECTOR RR | 1 | $38.91 USD | View product → | |
| 6 | 33743-AEA7-M30 | REFLEX REFLECTOR | 1 | $11.16 USD | View product → | |
| 7 | 50651-LFC4-E10 | STAY RR FENDER BALANCE | 1 | $8.85 USD | View product → | |
| 8 | 80100-LGR3-E10-N1R | FENDER RR. TIRE | 1 | $58.29 USD | View product → | |
| 9 | 80101-ACB9-E10-N1R | FENDER RR INNER | 1 | $66.93 USD | View product → | |
| 10 | 80102-ACC1-E10 | PLATE SPLASH BOARD | 1 | $9.27 USD | View product → | |
| 11 | 80105-ACC1-E10-F1P | FENDER REAR UP | 1 | $99.06 USD | View product → | |
| 12 | 80106-AEA7-M30-N1R | FENDER RR LOW | 1 | $37.08 USD | View product → | |
| 13 | 80116-ACC1-E10 | RUBBER LICENSE PLATE STOP | 1 | $1.32 USD | View product → | |
| 14 | 90652-LCA4-C10 | CLIP MUDGUARD | 4 | $5.67 USD | View product → | |
| 15 | 93404-06012-07G | 0 | 10 | $1.32 USD | View product → | |
| 16 | 93903-34380-G | SCREW TAPPING 4*12 (KG) | 13 | $2.73 USD | View product → | |
| 17 | 94050-05080-G | NUT FLANGE 5MM | 1 | $0.99 USD | View product → |
