F06 — Stem Steering ● Front Cushion

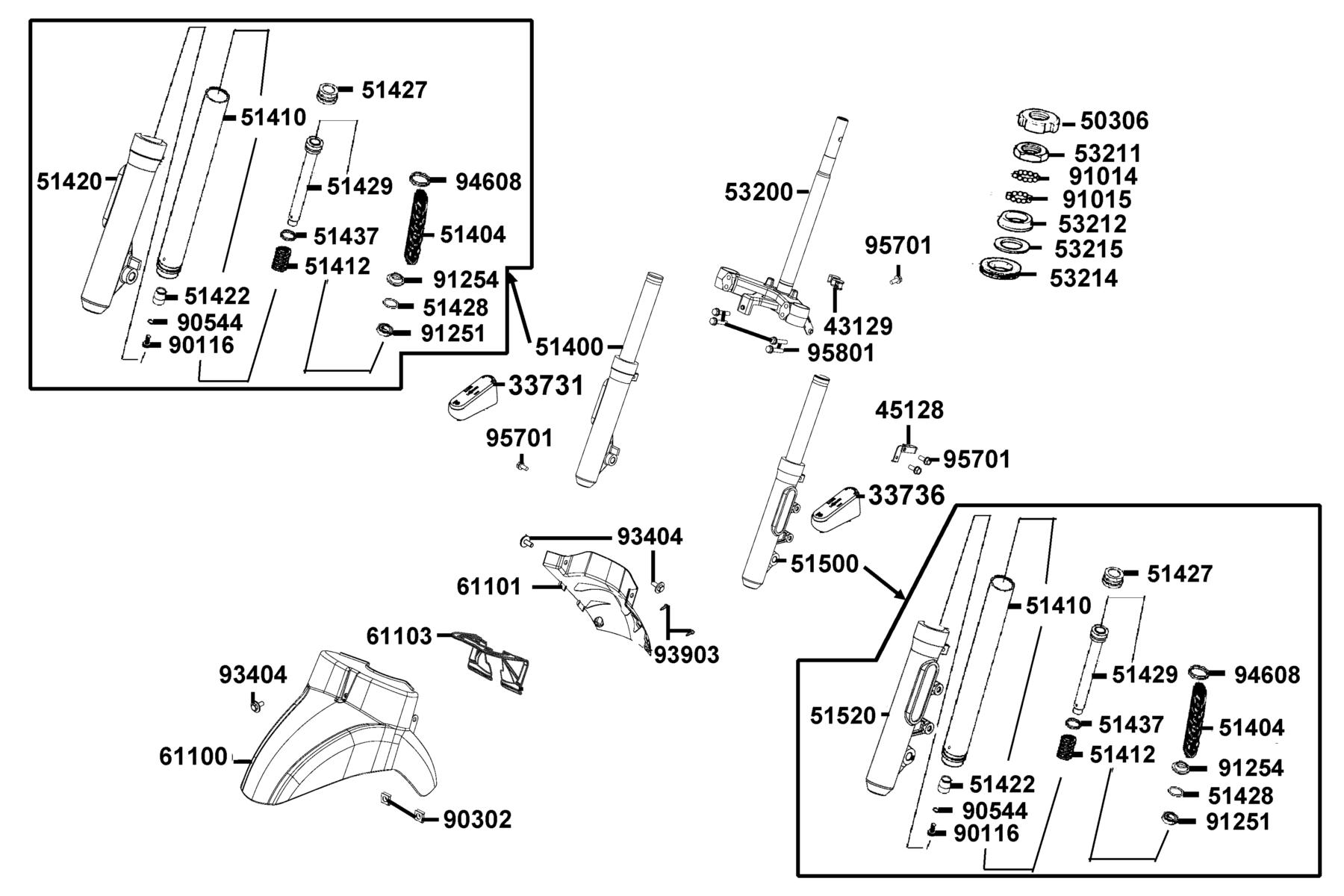

The Stem Steering ● Front Cushion diagram contains 34 genuine OEM parts for the KYMCO LIKE(2)50(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 33731-AEA7-M30 | REFLEX REFLECTOR SIDE | 1 | $36.24 USD | View product → | |
| 2 | 33736-AEA7-M30 | REFLEX REFLECTOR L SIDE | 1 | $36.24 USD | View product → | |
| 3 | 43129-ALD9-E14 | CLAMPER BRK HOSE | 1 | $8.19 USD | View product → | |
| 4 | 45128-ACC1-E10 | CLAMPER FR BRK HOSE | 1 | $12.45 USD | View product → | |
| 5 | 50306-1F96-C00 | NUT STRG STEM LOCK | 1 | $12.12 USD | View product → | |
| 6 | 51400-AEA7-M30-N8A | FORK ASSY FR R | 1 | $273.03 USD | View product → | |
| 7 | 51404-ACC1-E10 | SPRING COLLAR | 2 | $40.62 USD | View product → | |
| 8 | 51410-ACC1-E10 | FORK PIPE COMP | 2 | $319.89 USD | View product → | |
| 9 | 51412-LEJ2-E10 | REBOUND SPRING | 2 | $6.24 USD | View product → | |
| 10 | 51420-AEA7-M30-N8A | BOTTOM CASE RH | 1 | $253.50 USD | View product → | |
| 11 | 51428-LEJ2-E10 | OIL SEAL STOP RING | 2 | $5.31 USD | View product → | |
| 12 | 51429-ACC1-E10 | PIPE SEAT COMP | 2 | $62.61 USD | View product → | |
| 13 | 51437-LEJ2-E10 | PISTON RING | 2 | $5.31 USD | View product → | |
| 14 | 51500-AEA7-M30-N8A | FORK ASSY FR L | 1 | $273.03 USD | View product → | |
| 15 | 51520-AEA7-M30-N8A | BOTTOM CASE RH | 1 | — | Part details → | |
| 16 | 53200-ACC1-E10 | STEM COMP STRG | 1 | $140.19 USD | View product → | |
| 17 | 53211-GFY6-C00 | RACE STRG TOP CONE | 1 | $16.41 USD | View product → | |
| 18 | 53212-2L50-C00 | RACE (STRG BOTTOM) CONE | 1 | $30.66 USD | View product → | |
| 19 | 53214-2L50-C00 | DUST SEAL STRG (HEAD) | 1 | $6.39 USD | View product → | |
| 20 | 53215-2L50-C00 | WASH STRG HDL DUST-SEAL | 1 | $7.53 USD | View product → | |
| 21 | 61100-ACC1-E10-U1P | FENDER FR (Flat Orange) | 1 | $304.89 USD | View product → | |
| 22 | 61101-ACC1-E10-U1P | FENDER B FR | 1 | $72.36 USD | View product → | |
| 23 | 61103-ACC1-E10 | PLATE SPLASH BOARD | 1 | $18.45 USD | View product → | |
| 24 | 90302-SDA4-C01 | NUT SPRING 4MM | 2 | $0.99 USD | View product → | |
| 25 | 90544-LEJ2-E10 | PACKING | 2 | $5.22 USD | View product → | |
| 26 | 91014-LLJ3-C00 | CAGE STRG TOPP | 1 | $22.65 USD | View product → | |
| 27 | 91015-LLJ3-C00 | CAGE STRG BOT | 1 | $28.35 USD | View product → | |
| 28 | 91251-LEJ2-E10 | SEAL OIL | 2 | $36.78 USD | View product → | |
| 29 | 91254-LEJ2-E10 | DUST SEAL | 2 | $19.26 USD | View product → | |
| 30 | 93404-06012-07G | 0 | 3 | $1.32 USD | View product → | |
| 31 | 93903-GFY6-C01 | SCREW TAPPING 4*14(K) | 2 | $4.92 USD | View product → | |
| 32 | 94608-LEJ2-E10 | O-RING 23X2.4 | 2 | $4.92 USD | View product → | |
| 33 | 95701-06012-07G | BOLT FLANGE 6*12 (K) | 1 | $0.99 USD | View product → | |
| 34 | 95801-08040-08G | BOLT FLANGE 8*40 | 1 | $4.89 USD | View product → |
