F07 — Front Wheel

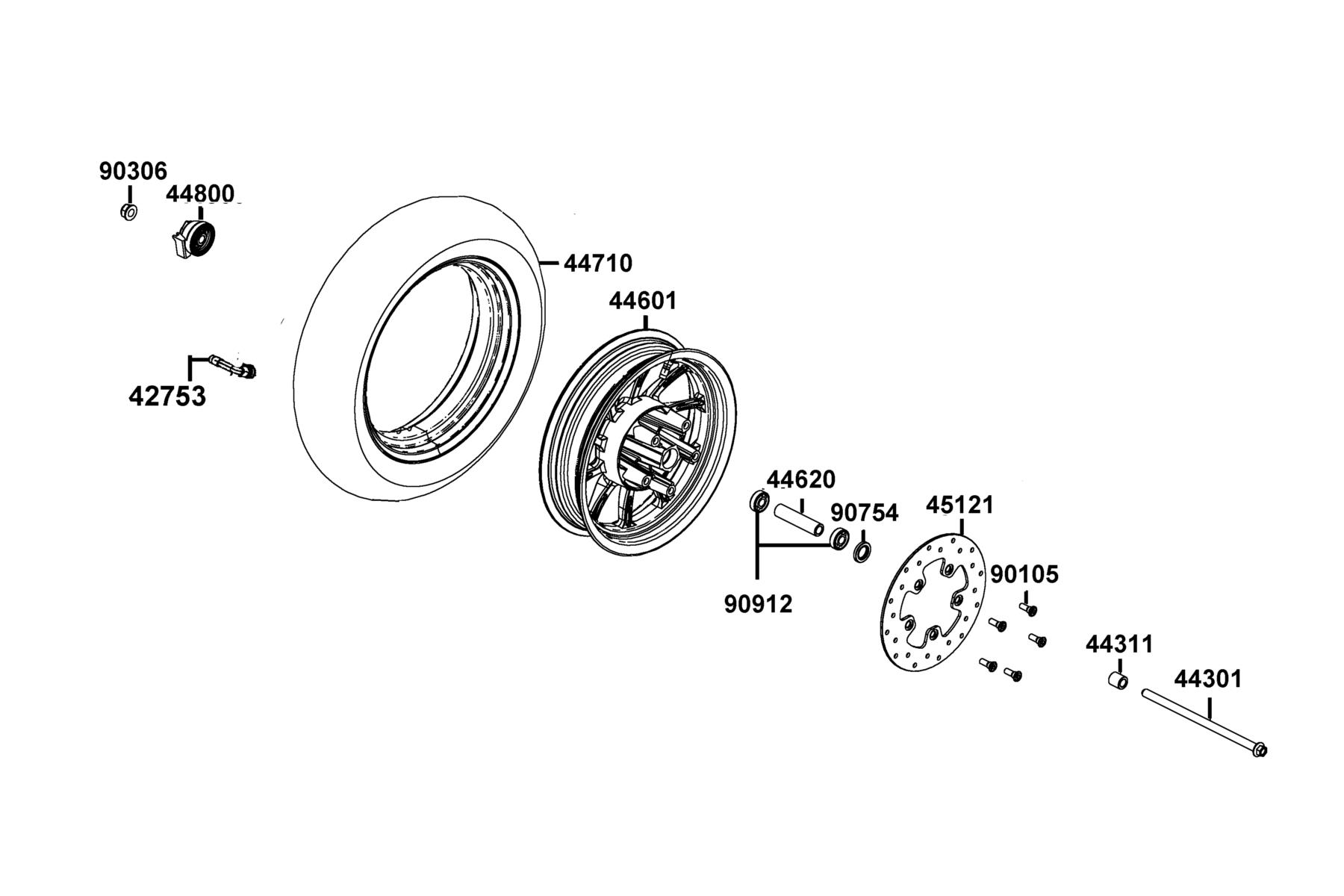

The Front Wheel diagram contains 12 genuine OEM parts for the KYMCO LIKE(2)50(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42753-0F06-C00 | VALAE RIM | 1 | $34.17 USD | View product → | |
| 2 | 44301-LEJ2-E13 | AXLE FR WHEEL 12*243(K) | 1 | $42.78 USD | View product → | |
| 3 | 44311-KEBE-C00 | COLLAR FR WHEEL SIDE | 1 | $7.89 USD | View product → | |
| 4 | 44601-ACC1-E11-NEA | WHEEL FR CAST | 1 | $287.94 USD | View product → | |
| 5 | 44620-KHD8-C00 | COLLAR FR DIST | 1 | $15.06 USD | View product → | |
| 6 | 44710-ACC1-E10 | TIRE ASSY FR(110/70-12 ) | 1 | $448.50 USD | View product → | |
| 7 | 44800-ACC1-E10 | GEAR BOX ASSY | 1 | $158.10 USD | View product → | |
| 8 | 45121-LGR5-E80 | DISK FR BRK | 1 | $160.53 USD | View product → | |
| 9 | 90105-KCR3-C02 | BOLT FR DISK 8*24 | 5 | $9.84 USD | View product → | |
| 10 | 90306-LKL5-E31 | NUT U FLANGE 12MM(K) | 1 | $18.96 USD | View product → | |
| 11 | 90754-GHC8-C00 | DUST SEAL 20*32*5 | 1 | $4.59 USD | View product → | |
| 12 | 90912-KFLF-C00 | BEARING 6201 LLU | 2 | $41.97 USD | View product → |
