E02 — Cylinder Head

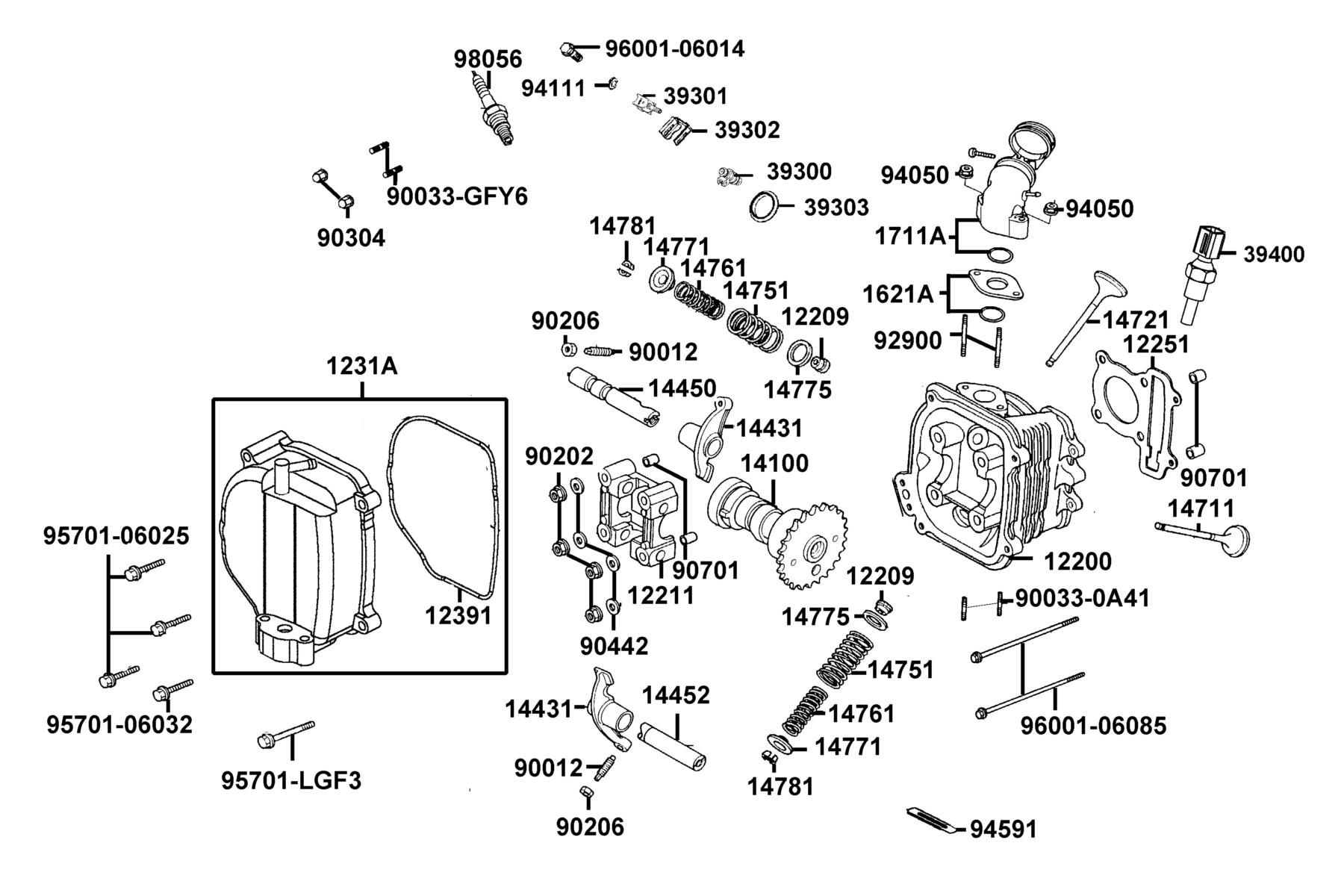

The Cylinder Head diagram contains 42 genuine OEM parts for the KYMCO LIKE(2)50(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 12200-ADB2-C00 | HEAD COMP CYLINDER | 1 | $393.30 USD | View product → | |
| 2 | 12209-GDB4-C00 | SEAL VALVE STEM | 1 | $23.25 USD | View product → | |
| 3 | 12211-KGBG-C00 | HOLDER CAM SHAFT | 1 | $73.59 USD | View product → | |
| 4 | 12251-KGBG-C00 | GASKET CYLINDER HEAD | 2 | $57.39 USD | View product → | |
| 5 | 1231A-KHC5-C00 | COVER ASSY HEAD | 1 | $137.40 USD | View product → | |
| 6 | 12391-KEE1-C00 | GASKET HEAD COVER | 1 | $38.58 USD | View product → | |
| 7 | 14100-ADB2-C0A | SHAFT COMP CAM | 1 | $279.90 USD | View product → | |
| 8 | 14431-KGBG-W10 | ARM VALVE ROCKER | 1 | $37.41 USD | View product → | |
| 9 | 14450-KGBG-W10 | SHAFT COMP IN ROCKER ARM | 1 | $55.02 USD | View product → | |
| 10 | 14452-KGBG-W10 | SHAFT EXH ROCKER ARM | 1 | $23.94 USD | View product → | |
| 11 | 14711-KGBG-C0A | VALVE INLET | 1 | $61.14 USD | View product → | |
| 12 | 14721-KGBG-C0B | VALVE EXHAUST | 1 | $73.47 USD | View product → | |
| 13 | 14751-KGBG-C00 | SPRING VALVE OUTER | 1 | $20.67 USD | View product → | |
| 14 | 14761-KGBG-C00 | SPRING VALVE INNER | 1 | $15.06 USD | View product → | |
| 15 | 14771-GDB4-C00 | RETAINER VALVE SPRING | 1 | $20.64 USD | View product → | |
| 16 | 14775-MFA6-C00 | SEAT VALVE SPG OUTER | 1 | $11.79 USD | View product → | |
| 17 | 14781-MFA6-C0C | COTTER VALVE | 1 | $7.65 USD | View product → | |
| 18 | 1621A-ADB2-C00 | INSULATOR CARB ASSY | 1 | $10.50 USD | View product → | |
| 19 | 1711A-AAB6-E15 | PIPE ASSY. INLET | 1 | $102.18 USD | View product → | |
| 20 | 39300-ADB2-C00 | INJECTOR UNIT FUEL | 1 | $234.33 USD | View product → | |
| 21 | 39301-ALJ8-E10 | CUP COMP FUEL INJECTOR | 1 | $25.26 USD | View product → | |
| 22 | 39302-KKE3-C00 | CLIP SPRING FUEL INJECTOR | 1 | $14.07 USD | View product → | |
| 23 | 39303-LEB2-C00 | "SEAL,HIGH TENSION FUEL INJECT" | 1 | $3.27 USD | View product → | |
| 24 | 39400-LHJ3-900 | SENSOR. HEAD TEMPERATURE | 1 | $170.40 USD | View product → | |
| 25 | 90012-3C33-C00 | SCREW TAPPET ADJUSTING | 1 | $8.16 USD | View product → | |
| 26 | 90033-0A41-C01 | BOLT STUD6*32 | 2 | $4.59 USD | View product → | |
| 27 | 90033-GFY6-C11 | BOLT STUD 6*16 | 2 | $4.59 USD | View product → | |
| 28 | 90202-GFF6-C00 | NUT FLANGE 7MM | 1 | $4.65 USD | View product → | |
| 29 | 90206-0A01-C00 | NUT TAPPET ADJG | 4 | $4.92 USD | View product → | |
| 30 | 90304-4H38-C00 | NUT HEX CAP 6MM | 2 | $12.48 USD | View product → | |
| 31 | 90442-GFF6-C01 | WASHER SEALING 7MM 7.2*14*2.5 | 4 | $4.65 USD | View product → | |
| 32 | 90701-GFF6-C00 | PIN DOWEL SPECIAL 8*14 | 4 | $0.99 USD | View product → | |
| 33 | 92900-06050-08G | BOLT STUD ??? 6*50 (CG) | 4 | $9.51 USD | View product → | |
| 34 | 94050-06080-G | NUT FLANGE 6MM | 2 | $0.99 USD | View product → | |
| 35 | 94111-06800-G | WASHER SPG 6MM(C) | 1 | $0.30 USD | View product → | |
| 36 | 94591-KFBF-C00 | CLIP 2*70 | 1 | $13.95 USD | View product → | |
| 37 | 95701-06025-08G | BOLT FLANGE 6*25 | 1 | $0.99 USD | View product → | |
| 38 | 95701-06032-08G | BOLT FLANGE 6*32 | 3 | $1.95 USD | View product → | |
| 39 | 95701-LGF3-E90 | BOLT TORQUE 6X50 | 1 | $8.73 USD | View product → | |
| 40 | 96001-06014-08G | BOLT FLANGE SH 6*14 (C) | 1 | $0.99 USD | View product → | |
| 41 | 96001-06085-08G | BOLT FLANGE 6*85 | 2 | $3.27 USD | View product → | |
| 42 | 98056-5671R-00 | SPARK PLUG (CR6HSA) | 1 | $30.90 USD | View product → |
