F19 — Wire Harness

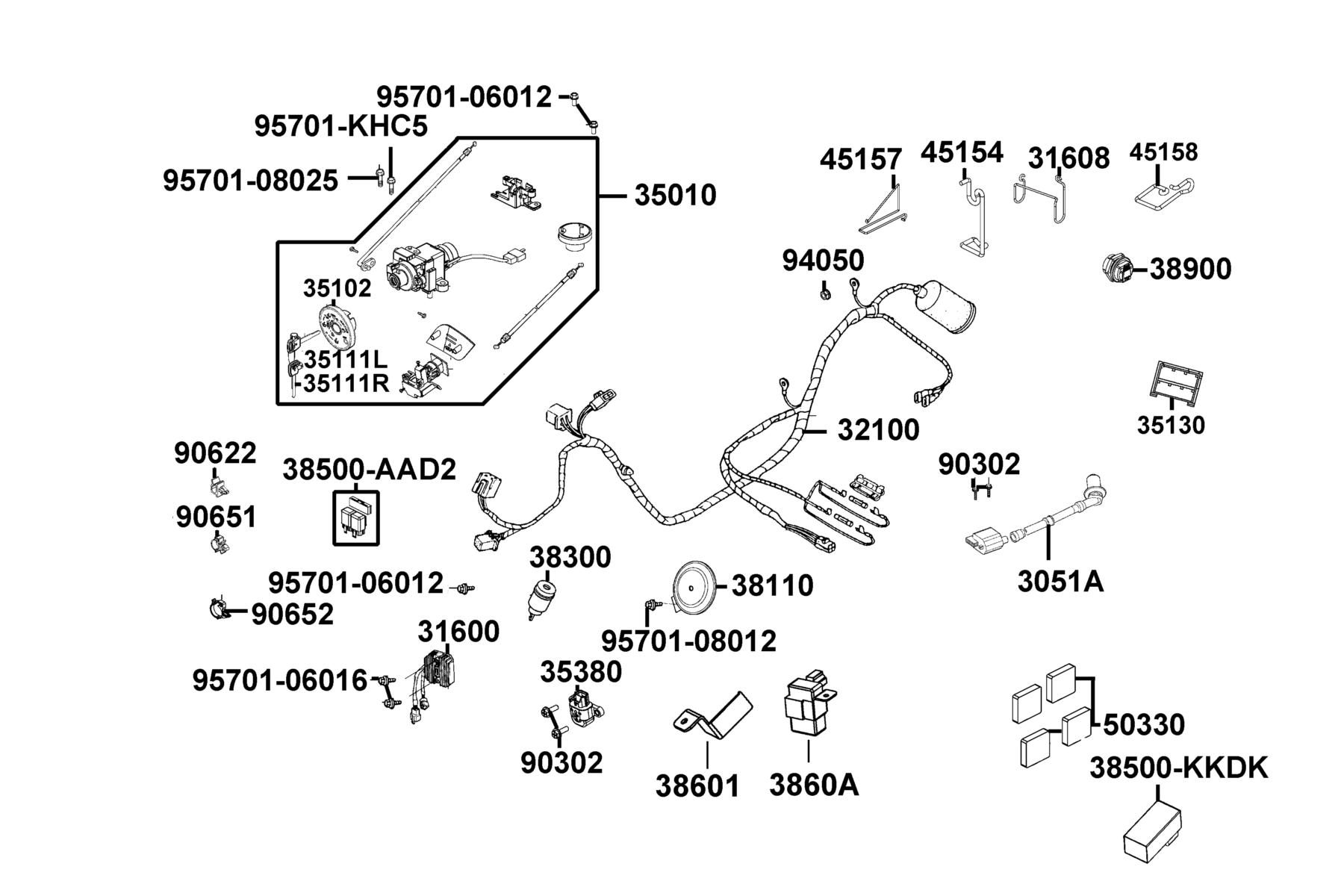

The Wire Harness diagram contains 31 genuine OEM parts for the KYMCO LIKE(2)50(2019~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 3051A-ACB9-E10 | COIL ASSY IGN | 1 | $133.95 USD | View product → | |
| 2 | 31600-ACC1-E10 | REG REC COMP | 1 | $122.52 USD | View product → | |
| 3 | 31608-ACC1-E10 | CLIP WIRE | 1 | $13.77 USD | View product → | |
| 4 | 32100-ACB9-M30 | HARNESS WIRE | 1 | $475.32 USD | View product → | |
| 5 | 35010-ACB9-M30 | KEY SET | 1 | $416.22 USD | View product → | |
| 6 | 35102-ACC1-E10 | SHUTTER MAGNETIC LOCK | 1 | $131.10 USD | View product → | |
| 7 | 35111-LDC1-305 | KEY COMP (R TANGENT PLANE/SD) | 1 | $32.22 USD | View product → | |
| 8 | 35111-LDC1-306 | KEY COMP (L TANGENT PLANE/SD) | 1 | $32.22 USD | View product → | |
| 9 | 35130-LGR4-M30 | SW UNIT KILL | 1 | $31.74 USD | View product → | |
| 10 | 35380-ABE1-C00 | SENSOR ANGLE | 1 | $99.39 USD | View product → | |
| 11 | 38110-KKC3-90B | HORN COMP | 1 | $91.08 USD | View product → | |
| 12 | 38300-ADA9-M30 | RELAY ASSY WINKER | 1 | $74.73 USD | View product → | |
| 13 | 38500-AAD2-C00 | RELAY ASSY LIGHT | 1 | $125.46 USD | View product → | |
| 14 | 38500-KKDK-C00 | SET START MAG | 1 | $152.13 USD | View product → | |
| 15 | 38601-ACC1-E10 | "STAY,LIGHT CONTROLLER" | 1 | $10.80 USD | View product → | |
| 16 | 3860A-ACC1-E10 | CONTROL ASSY LIGHTING | 1 | $112.71 USD | View product → | |
| 17 | 38900-ACC1-E10 | CONTROLLER USB CHARGER | 1 | $112.71 USD | View product → | |
| 18 | 45154-ACC1-E10 | CLIP WIRE | 1 | $16.08 USD | View product → | |
| 19 | 45157-ACC1-E10 | CLIP WIRE | 1 | $7.89 USD | View product → | |
| 20 | 45158-ACC1-E10 | CLIP WIRE | 1 | $4.59 USD | View product → | |
| 21 | 50330-ALK5-C00 | SEAL BATTER FRONT | 1 | $1.65 USD | View product → | |
| 22 | 90302-GFY6-C11 | BOLT-WASH 5*16 | 1 | $4.65 USD | View product → | |
| 23 | 90622-LHJ8-900 | CLAMP | 2 | $0.87 USD | View product → | |
| 24 | 90651-LKE6-900 | CLIP CABLE | 2 | $1.32 USD | View product → | |
| 25 | 90652-LHJ6-900 | "CLIP,MUDGUARD" | 1 | $1.32 USD | View product → | |
| 26 | 94050-06080-G | NUT FLANGE 6MM | 3 | $0.99 USD | View product → | |
| 27 | 95701-06012-08G | BOLT FLANGE 6*12 (C) | 2 | $0.99 USD | View product → | |
| 28 | 95701-06016-08G | BOLT FLANGE 6*16 (C) | 2 | $0.99 USD | View product → | |
| 29 | 95701-08012-08G | BOLT FLANGE 8X12(C) | 1 | $3.27 USD | View product → | |
| 30 | 95701-08025-08G | BOLT FLANGE 8*25 (C) | 1 | $4.26 USD | View product → | |
| 31 | 95701-KHC5-C00 | BOLT TORQUE 8*20 | 1 | $4.26 USD | View product → |
