E02 — Cylinder Head

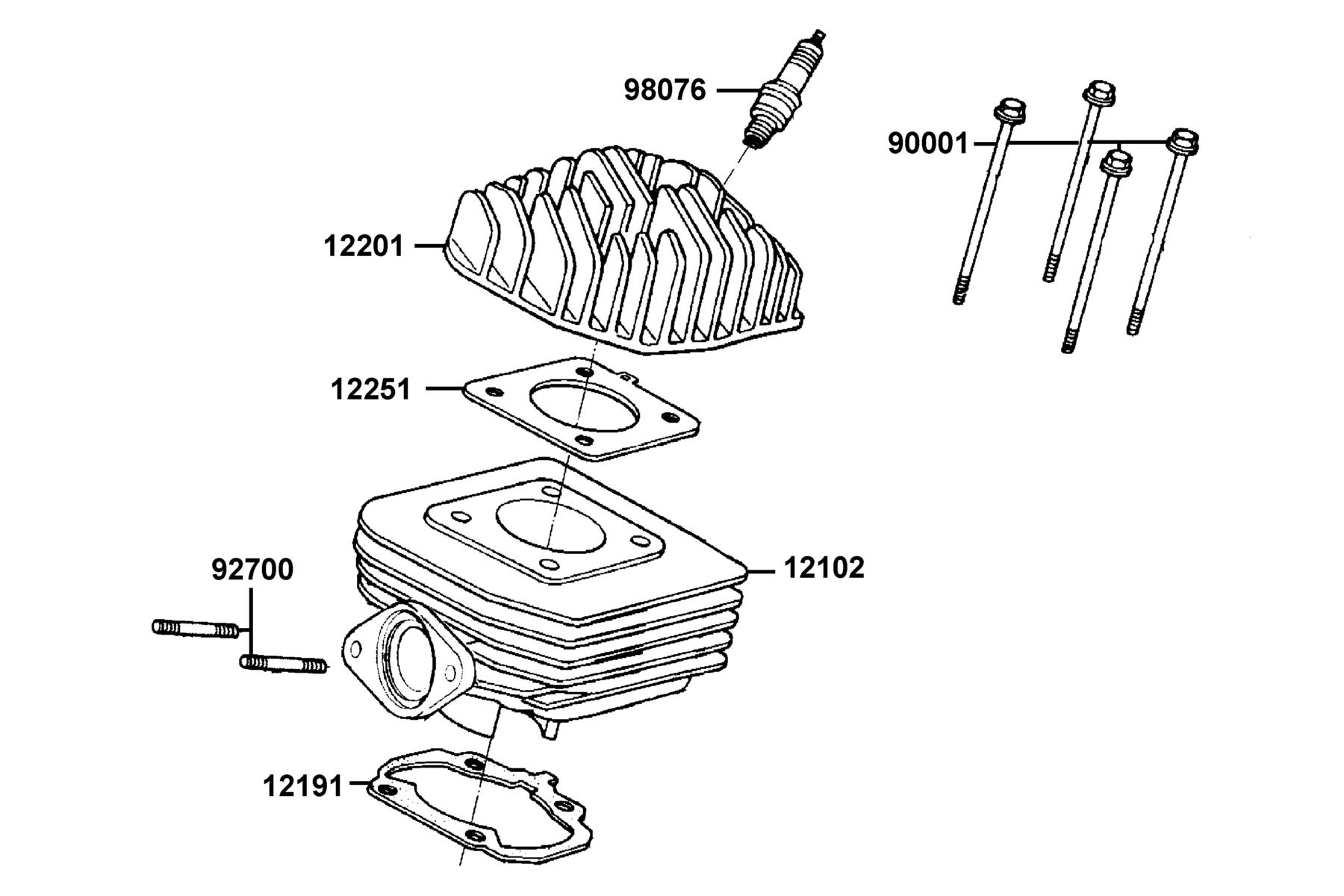

The Cylinder Head diagram contains 7 genuine OEM parts for the KYMCO LIKE 50 LX(2012~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 12102-KEB7-C00 | CYLINDER COMP | 1 | $220.98 USD | View product → | |
| 2 | 12191-KEB7-E90 | GASKET CYLINDER @A | 1 | $8.49 USD | View product → | |
| 3 | 12201-KEB7-C00 | HEAD CYLINDER | 1 | $172.41 USD | View product → | |
| 4 | 12251-KEB7-C00 | GASKET CYLINDER HEAD | 1 | $8.16 USD | View product → | |
| 5 | 90001-GKAK-C00 | BOLT FLANGE 7*100 | 1 | $5.22 USD | View product → | |
| 6 | 92700-06028-1B | BOLT STUD 6*28 | 2 | $4.92 USD | View product → | |
| 7 | 98076-5871G-00 | SPARK PLUG (BR8HSA) | 1 | $16.14 USD | View product → |
