F02 — Speedometer

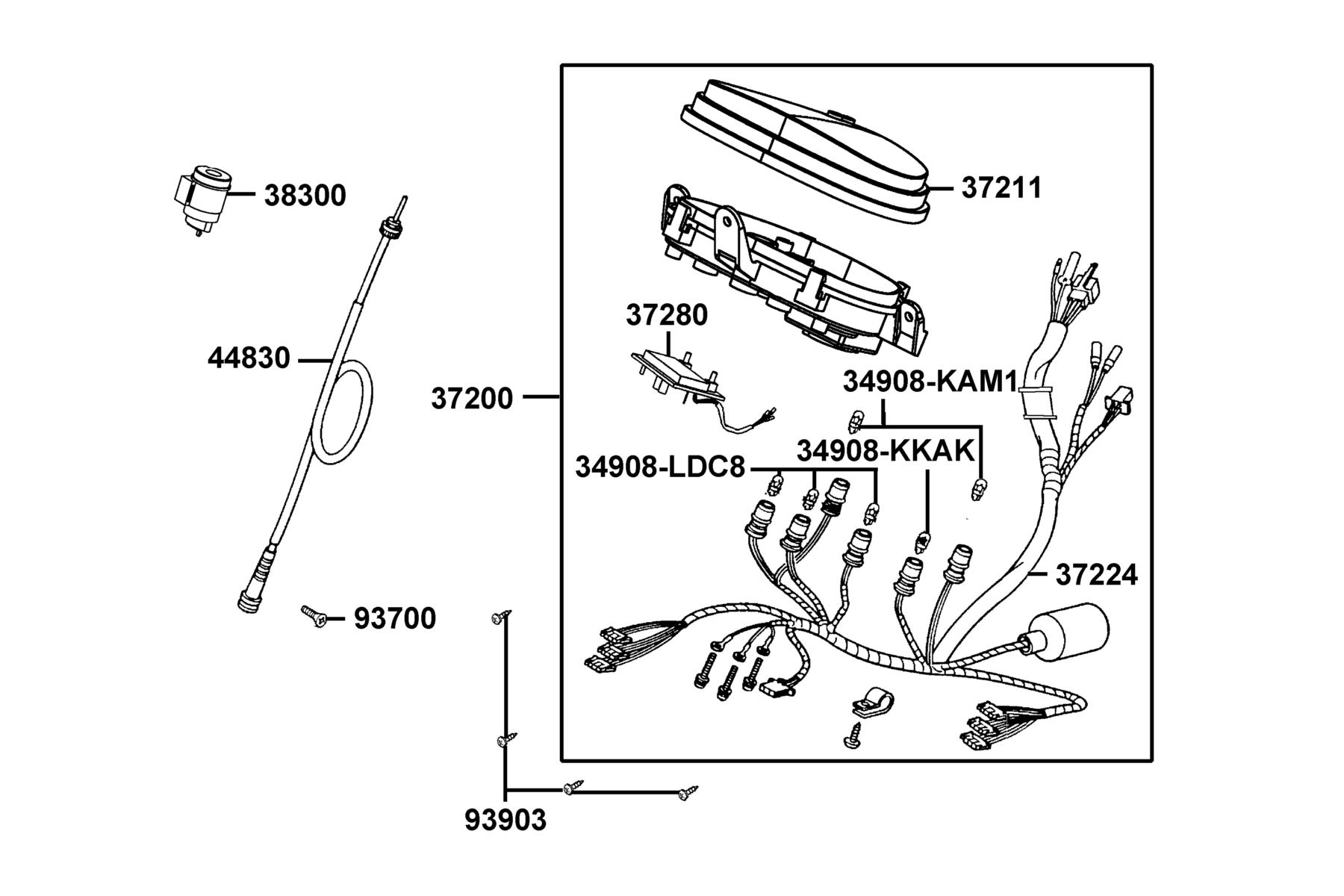

The Speedometer diagram contains 11 genuine OEM parts for the KYMCO LIKE 50 LX(2012~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 34908-KAM1-67A | BULB WEDGE BASE T6.5(12V/3.4W) | 1 | $15.06 USD | View product → | |
| 2 | 34908-KKAK-C00 | BULB WEDGE BASE T6.5(12V.1.7W) | 1 | $5.43 USD | View product → | |
| 3 | 34908-LDC8-E00 | BULB WEDGE BASE T5 12V 1.7W | 1 | $5.16 USD | View product → | |
| 4 | 37200-LGR4-M30 | METER ASSY SPEED | 1 | $334.65 USD | View product → | |
| 5 | 37211-LGR5-E10 | LENS COMP METER | 1 | $47.94 USD | View product → | |
| 6 | 37224-LGR4-M30 | SOCKET COMP.,METER | 1 | $166.32 USD | View product → | |
| 7 | 37280-LGR5-E10 | LCD ASSY CLOCK | 1 | $88.59 USD | View product → | |
| 8 | 38300-KECE-W10 | RELAY ASSY WINKER | 1 | $97.92 USD | View product → | |
| 9 | 44830-LDC8-E10 | CABLE COMP SPDMT | 1 | $40.89 USD | View product → | |
| 10 | 93700-05018-0H | SCREW OVAL 5*18 | 1 | $2.73 USD | View product → | |
| 11 | 93903-25220 | SCREW TAPPING 5*12 | 4 | $4.92 USD | View product → |
