E07 — Fan Cover ● Generator

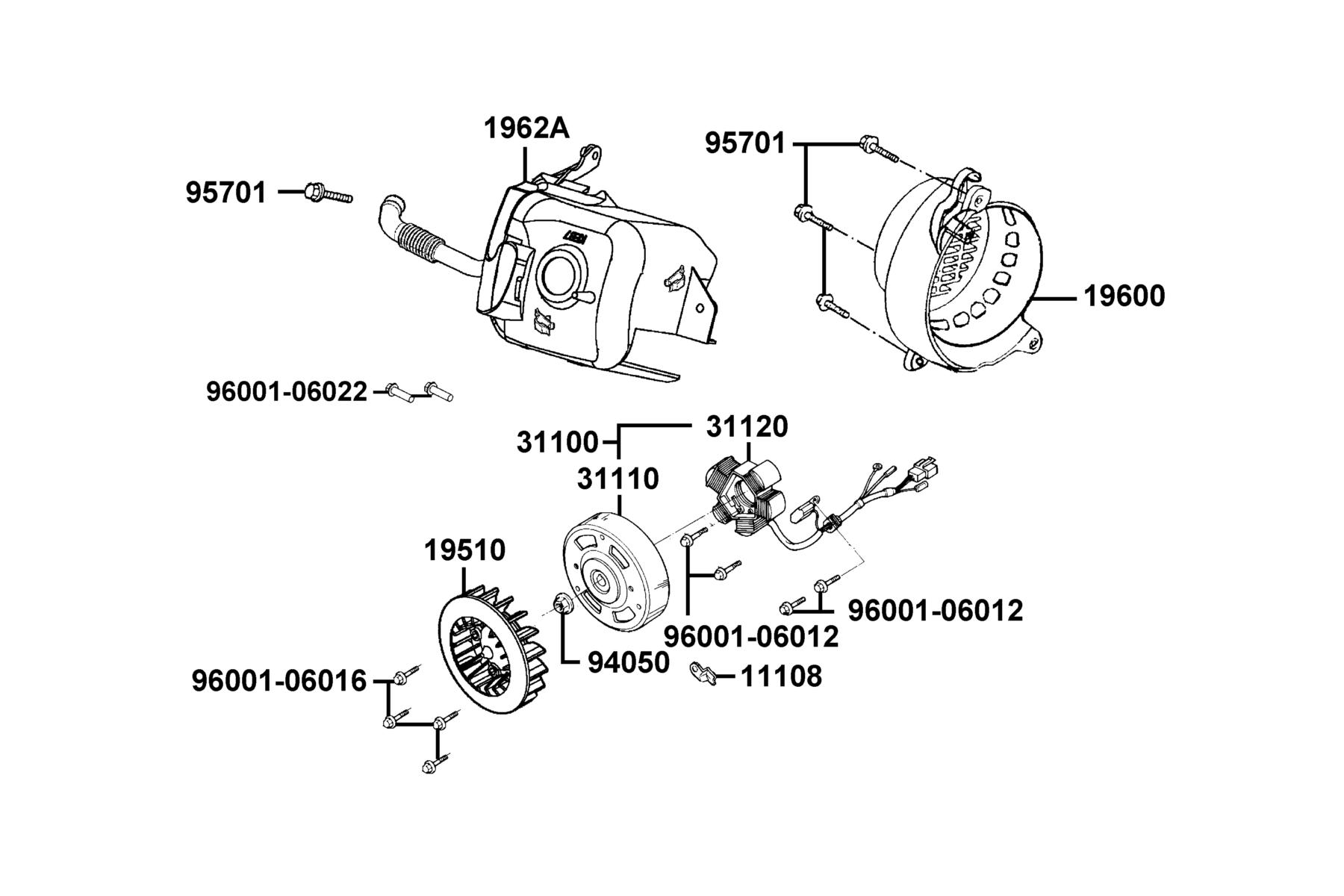

The Fan Cover ● Generator diagram contains 11 genuine OEM parts for the KYMCO LIKE 50 LX(2012~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11108-KEB7-C00 | HOLDER STATOR WIRE | 1 | $3.27 USD | View product → | |
| 2 | 19510-GBW2-C00 | FAN COMP COOLING | 1 | $37.92 USD | View product → | |
| 3 | 19600-KEB7-C00 | COVER COMP FAN | 1 | $73.05 USD | View product → | |
| 4 | 1962A-KEB7-C10 | CLIP SET SHROUD | 1 | $139.92 USD | View product → | |
| 5 | 31100-LHB3-M30 | AC GEN ASSY | 1 | $203.58 USD | View product → | |
| 6 | 31110-LHB3-M30 | FLYWHEEL COMP | 1 | $164.13 USD | View product → | |
| 7 | 31120-LHB3-M30 | STATOR COMP | 1 | $79.32 USD | View product → | |
| 8 | 94050-10080 | NUT FLANGE 10MM | 1 | $4.92 USD | View product → | |
| 9 | 95701-06025-08 | BOLT FLANGE 6*25 | 4 | $4.92 USD | View product → | |
| 10 | 96001-06012-08G | BOLT FLANGE SH 6X12 (C) | 2 | $0.99 USD | View product → | |
| 11 | 96001-06016-08 | BOLT FLANGE SH 6*16 | 4 | $2.61 USD | View product → |
