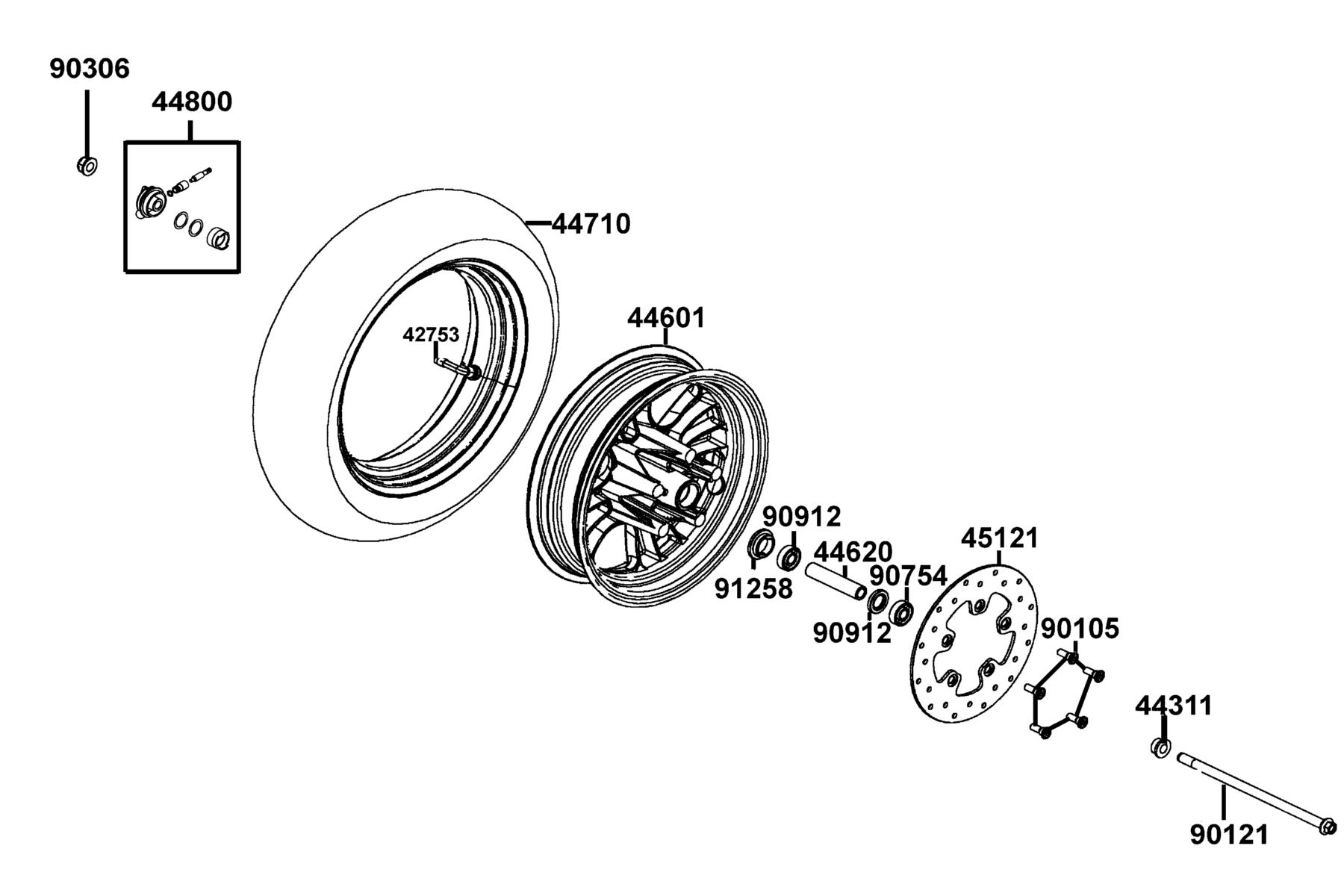

F07 — Front Wheel
The Front Wheel diagram contains 14 genuine OEM parts for the KYMCO LIKE 50 LX(2012~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 42753-0A01-C00 | VALVE (TR 412) & CAP (C) | 1 | $18.54 USD | View product → | |
| 2 | 44311-GLW0-W10 | COLLAR FR WHEEL SIDE | 1 | $31.50 USD | View product → | |
| 3 | 44601-LGR5-E10-NJA | WHEEL COMP FR | 1 | $297.39 USD | View product → | |
| 4 | 44620-KEB7-C00 | COLLAR FR DIST | 1 | $24.99 USD | View product → | |
| 5 | 44710-LDC8-E10 | TIRE ASSY FR | 1 | $512.49 USD | View product → | |
| 6 | 44800-LDC8-E10 | GEAR BOX ASSY SPDMT | 1 | $111.00 USD | View product → | |
| 7 | 45121-LGR5-E80 | DISK FR BRK | 1 | $160.53 USD | View product → | |
| 8 | 90105-KCR3-001 | BOLT FR DISK 8*24 | 5 | $11.94 USD | View product → | |
| 9 | 90105-KCR3-001-invalid | BOLT FR DISK 8*24 | 5 | $15.51 USD | View product → | |
| 10 | 90121-KBE2-C01 | BOLT RR FORK PIVOT M12*255 | 1 | $77.52 USD | View product → | |
| 11 | 90306-KLF0-C00 | NUT FLANGE 12MM | 1 | $12.36 USD | View product → | |
| 12 | 90754-GHC8-C00 | DUST SEAL 20*32*5 | 1 | $4.59 USD | View product → | |
| 13 | 90912-GHC8-C00 | BEARING 6201 (U) | 1 | $27.39 USD | View product → | |
| 14 | 91258-KAM1-C00 | SEAL SPDMT GEAR BOX | 1 | $22.44 USD | View product → |
