F18 — Tail Light

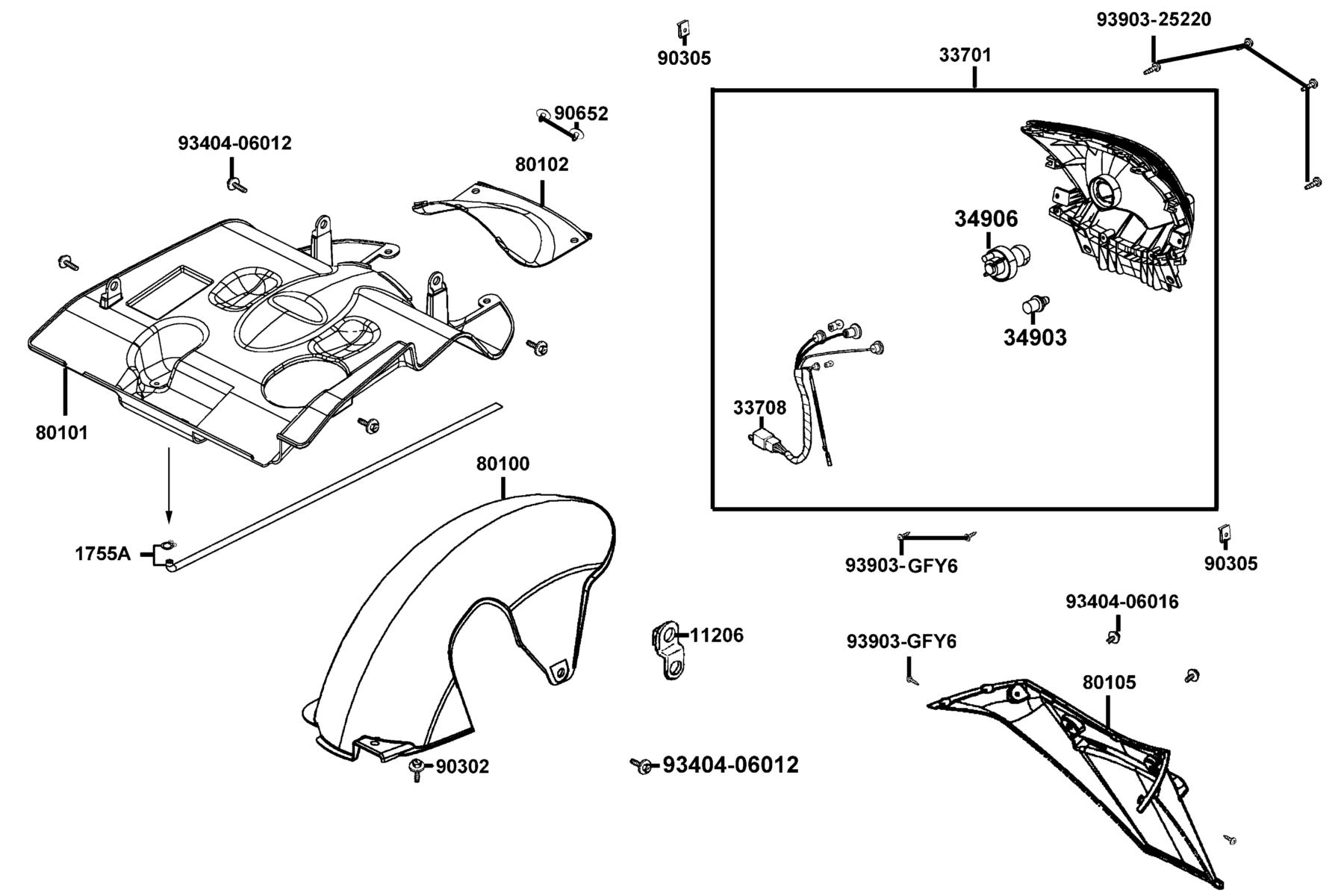

The Tail Light diagram contains 18 genuine OEM parts for the KYMCO LIKE 50 LX(2012~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11206-KEB7-C00 | STAY RR FENDER | 1 | $11.16 USD | View product → | |
| 2 | 1755A-KKD5-C10 | TRAY ASSY FUEL CAP | 1 | $67.14 USD | View product → | |
| 3 | 33701-LGR5-E10 | UNIT TAIL LIGHT | 1 | $179.79 USD | View product → | |
| 4 | 33708-LGR5-E10 | SOCKET COMP RR COMB. | 1 | $82.68 USD | View product → | |
| 5 | 34903-LDC8-E10 | BULB POSITION | 1 | $17.55 USD | View product → | |
| 6 | 34906-KPCP-900 | BULB TAIL & STOP | 1 | $8.76 USD | View product → | |
| 7 | 34906-KPCP-900-invalid | BULB TAIL & STOP | 1 | $11.40 USD | View product → | |
| 8 | 80100-LGR4-E10-N1R | FENDER REAR. TIRE | 1 | $31.50 USD | View product → | |
| 9 | 80101-LGR3-E10-N1R | FENDER REAR UP | 1 | $44.79 USD | View product → | |
| 10 | 80102-LGR3-E10-N1R | LID MAINT. TAIL LIGHT | 1 | $25.71 USD | View product → | |
| 11 | 80105-LGR4-M30-N1R | FENDER REAR | 1 | $56.52 USD | View product → | |
| 12 | 90111-06016-07G | BOLT FLANGE 6*16 (K) | 2 | $4.65 USD | View product → | |
| 13 | 90302-GFY6-C10 | BOLT-WASH 5*16 | 1 | $5.61 USD | View product → | |
| 14 | 90305-GHK8-C00 | NUT U 16MM(C) | 1 | $4.20 USD | View product → | |
| 15 | 90652-LCA4-C10 | CLIP MUDGUARD | 1 | $5.67 USD | View product → | |
| 16 | 93404-06012-07 | BOLT WASH 6*12 | 5 | $4.92 USD | View product → | |
| 17 | 93903-25220 | SCREW TAPPING 5*12 | 4 | $4.92 USD | View product → | |
| 18 | 93903-GFY6-C01 | SCREW TAPPING 4*14(K) | 1 | $4.92 USD | View product → |
