F10 — Fuel Tank

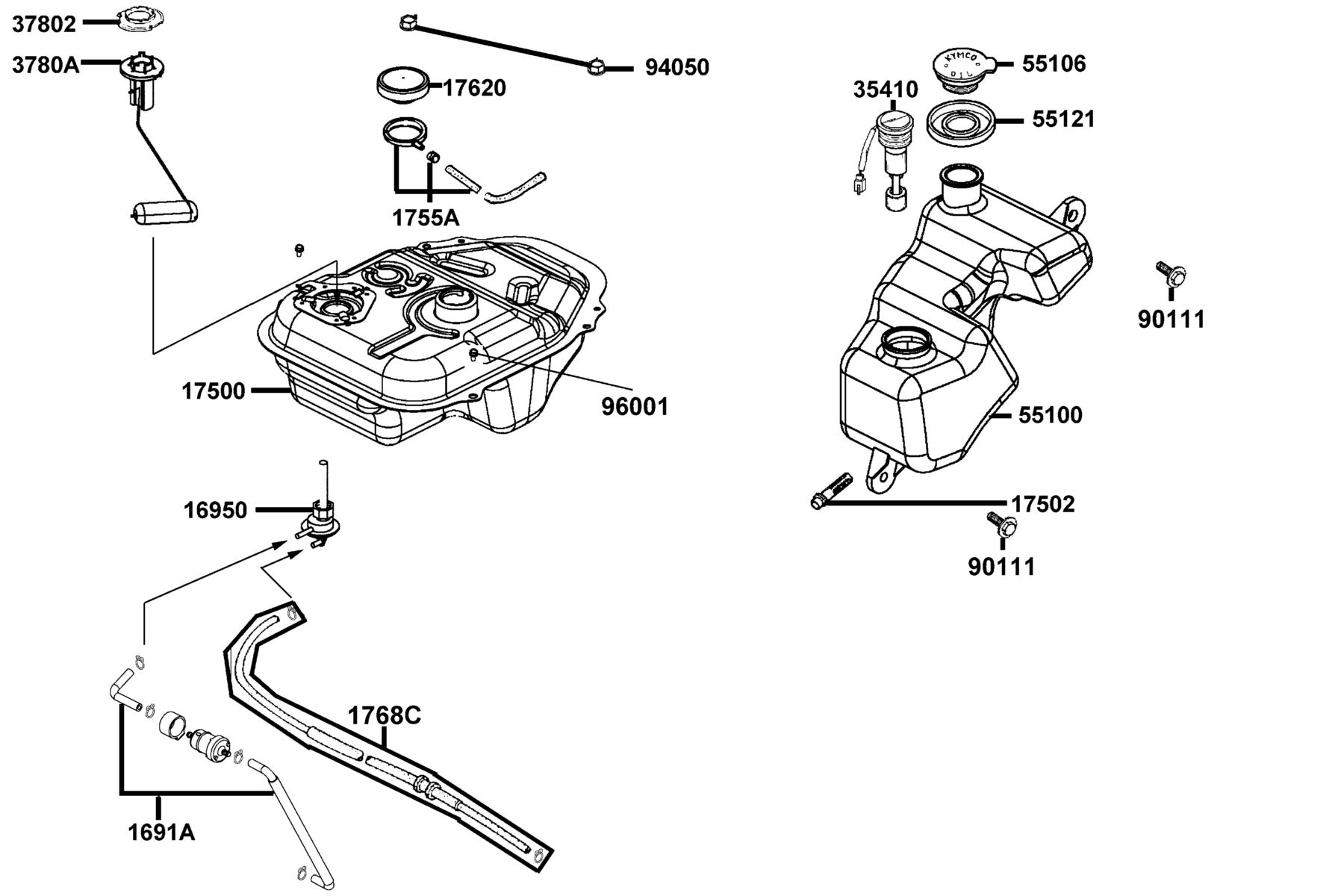

The Fuel Tank diagram contains 16 genuine OEM parts for the KYMCO LIKE 50 LX(2012~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 1691A-LGR4-M30 | STRAINER ASSY.,FUEL | 1 | $68.94 USD | View product → | |
| 2 | 16950-KKJ9-MY0 | AUTO COCK ASSY FUEL | 1 | $105.06 USD | View product → | |
| 3 | 17500-LGR4-M30 | TANK COMP FUEL | 1 | $298.77 USD | View product → | |
| 4 | 17502-1G87-001 | OIL STRAINER | 1 | $17.28 USD | View product → | |
| 5 | 1755A-LGR5-E10 | TRAY ASSY FUEL CAP | 1 | $65.37 USD | View product → | |
| 6 | 17620-LEJ2-M30 | CAP COMP FUEL FILLER | 1 | $111.75 USD | View product → | |
| 7 | 1768C-LGR4-E10 | "TUBE ASSY.,COCK TO INLET PIPE" | 1 | $39.00 USD | View product → | |
| 8 | 35410-LHB3-E10 | SW COMP OIL LEVEL | 1 | $123.42 USD | View product → | |
| 9 | 37802-GGA7-C00 | RET FUEL UNIT | 1 | $5.22 USD | View product → | |
| 10 | 3780A-LGR4-M30 | FUEL UNIT ASS'Y | 1 | $163.05 USD | View product → | |
| 11 | 55100-LGR4-E10 | TANK OIL | 1 | $110.16 USD | View product → | |
| 12 | 55106-KEB7-C00 | CAP TANK OIL | 1 | $5.88 USD | View product → | |
| 13 | 55121-LCD1-C00 | RUBBER OIL GUIDE | 1 | $8.67 USD | View product → | |
| 14 | 90111-06016-07G | BOLT FLANGE 6*16 (K) | 2 | $4.65 USD | View product → | |
| 15 | 94050-06080 | NUT FLANGE 6MM | 2 | $2.31 USD | View product → | |
| 16 | 96001-06012-08G | BOLT FLANGE SH 6X12 (C) | 2 | $0.99 USD | View product → |
