F14 — Exhaust Muffler

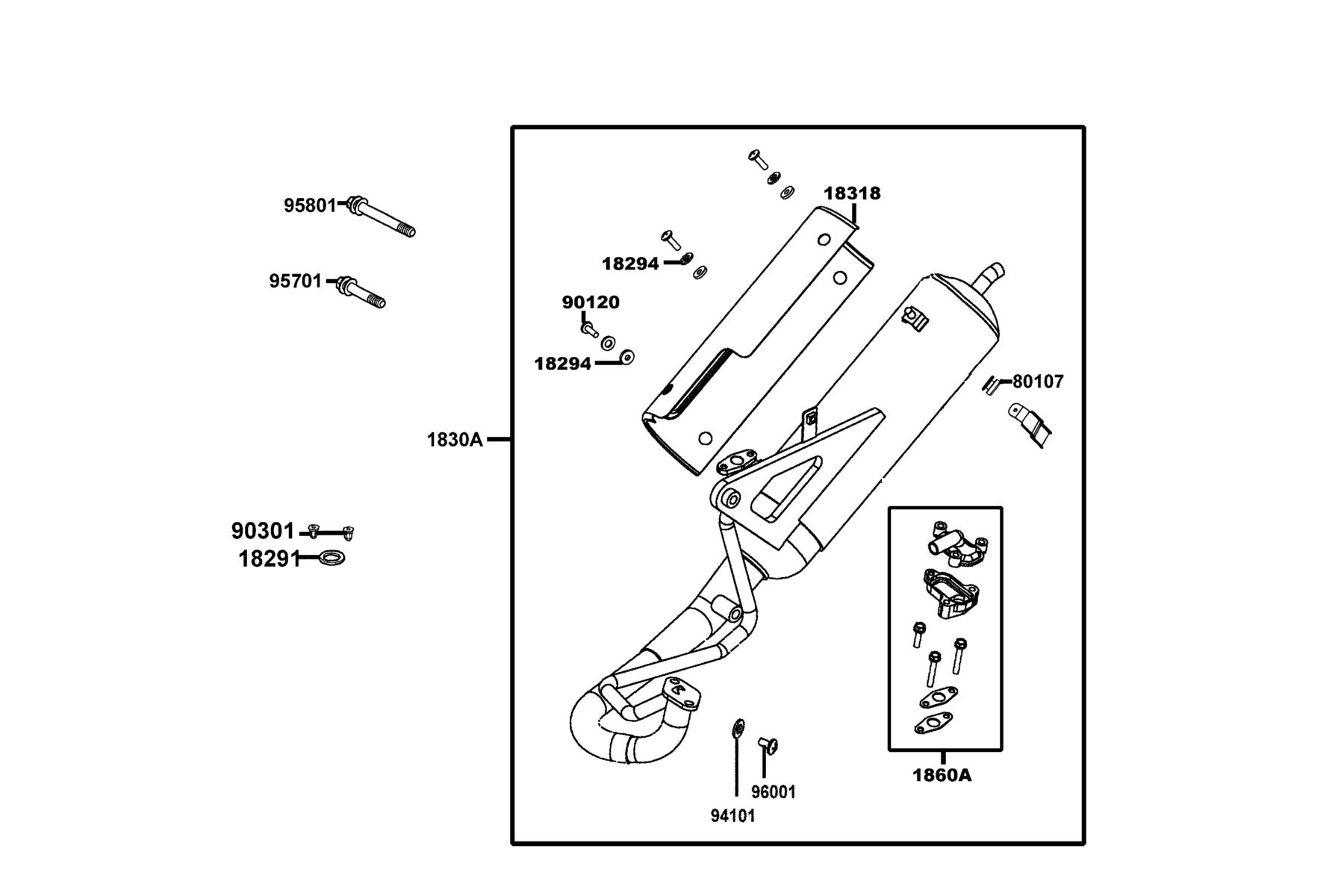

The Exhaust Muffler diagram contains 12 genuine OEM parts for the KYMCO LIKE 50 LX(2012~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 18291-LHB3-E11 | GASKET EXH PIPE | 1 | $19.26 USD | View product → | |
| 2 | 18294-PUA3-B50 | PACKING INNER PROTECTOR | 1 | $4.20 USD | View product → | |
| 3 | 1830A-LGR4-M30 | MUFFLER ASSY EXHAUST | 1 | $538.38 USD | View product → | |
| 4 | 18318-LGR4-E10-NES | PROTECTOR MUFFLER | 1 | $101.13 USD | View product → | |
| 5 | 1860A-KFB5-C00 | REED VALVE ASSY | 1 | $102.09 USD | View product → | |
| 6 | 80107-KHLH-C00 | RUBBER A，FR FENDER | 1 | $6.54 USD | View product → | |
| 7 | 90120-KEC2-C00 | SOCKET BOLT SPECIAL 6*13 | 1 | $14.07 USD | View product → | |
| 8 | 90301-KGBG-C00 | NUT CAP 6MM | 1 | $22.92 USD | View product → | |
| 9 | 94101-06700 | WASHER PLAIN 6MM | 1 | $4.92 USD | View product → | |
| 10 | 95701-08035-07 | BOLT FLANGE 8*35 | 1 | $6.39 USD | View product → | |
| 11 | 95801-08045-07G | BOLT FLANGE 8*45 (K) | 1 | $13.62 USD | View product → | |
| 12 | 96001-06008-07 | BOLT FLANGE 6X8 | 1 | $4.92 USD | View product → |
