E08 — Transmission

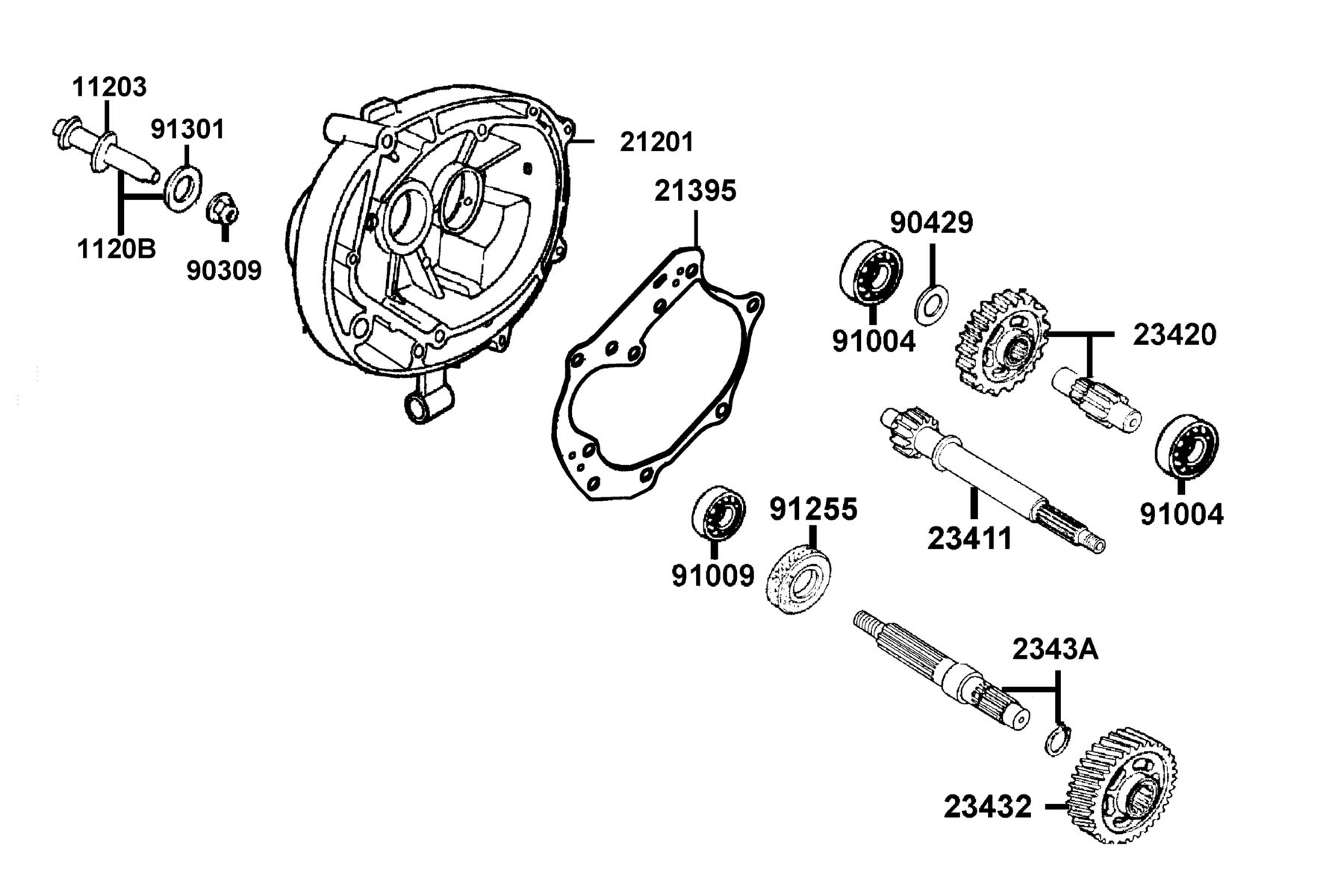

The Transmission diagram contains 15 genuine OEM parts for the KYMCO LIKE 50 LX(2012~). Hover a callout on the drawing to highlight the part in the list, click it to open the part, or click the drawing to zoom.
| # | Part | Name | Qty | Price | ||
|---|---|---|---|---|---|---|
| 1 | 11203-KAM1-C00 | PIN BRAKE SHOE ANCHOR | 1 | $23.34 USD | View product → | |
| 2 | 1120B-KGN7-C00 | PIN ASSY ANCHOR | 1 | $24.69 USD | View product → | |
| 3 | 21200-KFA1-900 | CASE COMP MISSION | 1 | $174.36 USD | View product → | |
| 4 | 21395-KNBN-901 | GASKET MISSION CASE @A | 1 | $11.58 USD | View product → | |
| 5 | 21395-KNBN-901(wrong) | GASKET MISSION CASE @A | 1 | $15.06 USD | View product → | |
| 6 | 23411-KEB7-C00 | SHAFT DRIVE | 1 | $104.55 USD | View product → | |
| 7 | 23420-KEB7-C00 | SHAFT COMP COUNTER | 1 | $137.76 USD | View product → | |
| 8 | 23432-KEB7-C00 | GEAR FINAL | 1 | $102.24 USD | View product → | |
| 9 | 2343A-KNBN-C00 | SHAFT FINAL | 1 | $139.83 USD | View product → | |
| 10 | 90309-PUA3-B50 | NTU FLANGE 8MM | 1 | $3.93 USD | View product → | |
| 11 | 90429-KNBN-C00 | WASHER SIDE 12MM | 1 | $29.55 USD | View product → | |
| 12 | 91004-KNBN-C00 | BRG BALL RADIAL 6203 | 1 | $70.98 USD | View product → | |
| 13 | 91009-GLE0-C00 | BRG BALL RADIAL 6004 UU | 1 | $36.51 USD | View product → | |
| 14 | 91255-LDC8-E10 | OIL SEAL 27*42*7 (C???) | 1 | $8.70 USD | View product → | |
| 15 | 91301-0C53-W10 | O-RING 7.5*1.5 | 1 | $0.99 USD | View product → |
